OG9DN600I

HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 600 ppr; Connection: Radial Terminal Box; IP 55

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Encoder with Solid Shaft Dia. 11mm with Keyway, Length 30mm (11k6 X 30mm)
  • Optical sensing method
  • B10 Euro Flange mounting (FlangeDia. 115mm - PCD 100mm)
  • Output stage HTL with power linedriver
  • Operating Temperature -30 °C to +100 °C

Optional

  • Output stage TTL with regulator UB 9 to 26 VDC
  • Other PPR's available: 25, 120, 128, 180, 256, 360, 500, 720, 1000, 1024, 1250, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 11 mm
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Encoder Type : Incremental
Output Signal : HTL
PPR : 600 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -30 °C to +100 °C
Protection : IP 55
Approval : CE, UL Approval / E217823
Weight : 0.98 KG
Special Notes

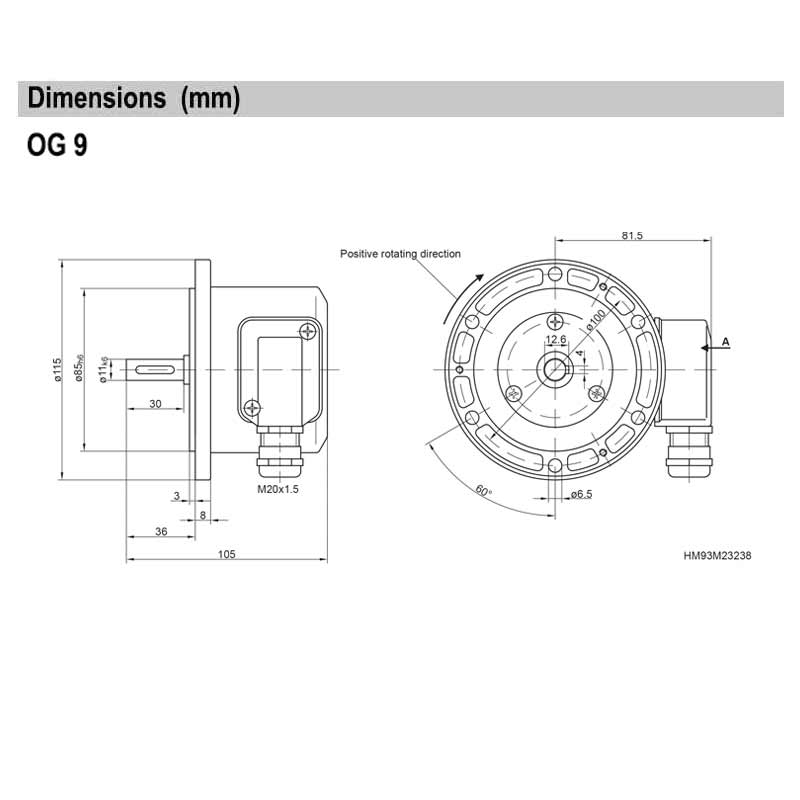

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
