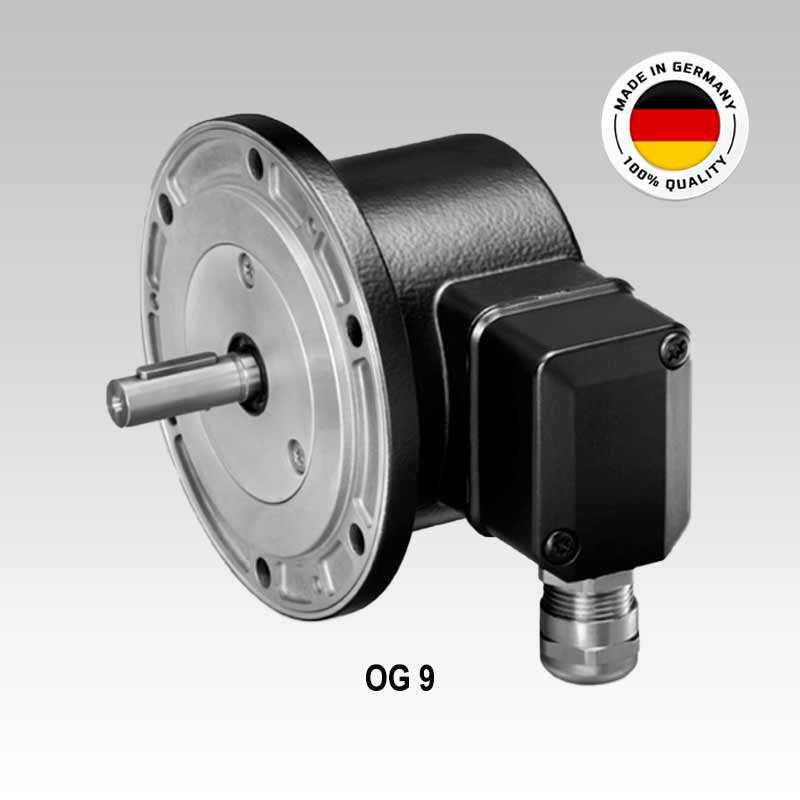

HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 26 Vdc; Output Signals: TTL with Inverted Signals (6-Channels); 1024 ppr; Connection: Radial Terminal Box; IP 55
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)
Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)
Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)
Spring Disk Coupling. Bore: d = d1 = 11 H7 (Bore Dia. 11mm with keyway on both ends)
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1024 ppr; Connection: Radial Terminal Box; IP 55
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 500 ppr; Connection: Radial Terminal Box; IP 55
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 5 Vdc; Output Signals: TTL with Inverted Signals (6-Channels); 600 ppr; Connection: Radial Terminal Box; IP 55
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals K1, K2 (2-Channels); HTL without Inverted Signals; 1000 ppr; IP 55
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 5 Vdc; Output Signals: TTL with Inverted Signals (6-Channels); 1024 ppr; Connection: Radial Terminal Box; IP 55
HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 600 ppr; Connection: Radial Terminal Box; IP 55

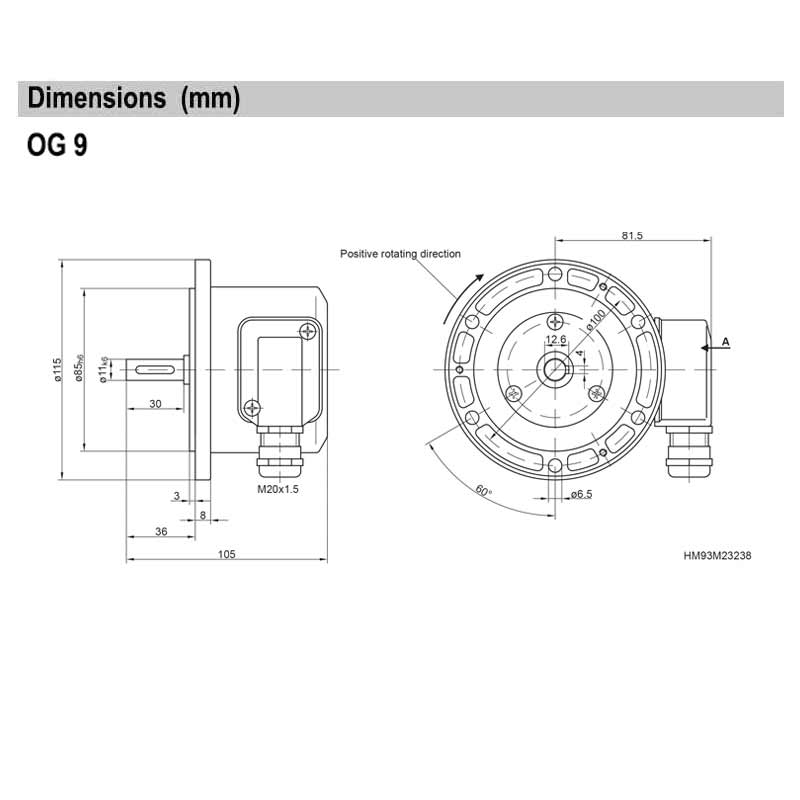

OG9DN1024R
