OG9DN500I - 11091805

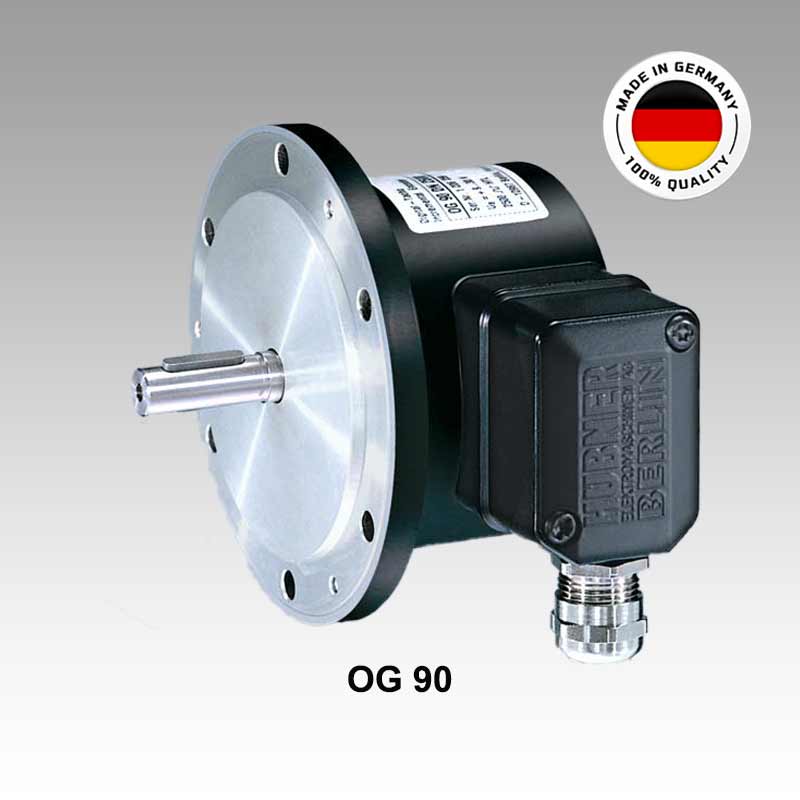

HeavyDuty Incremental Encoder; B10 EURO Flange mounting; Solid Shaft (11k6x30); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 500 ppr; Connection: Radial Terminal Box; IP 55

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Encoder with Solid Shaft Dia. 11mm with Keyway, Length 30mm (11k6 X 30mm)
  • Optical sensing method

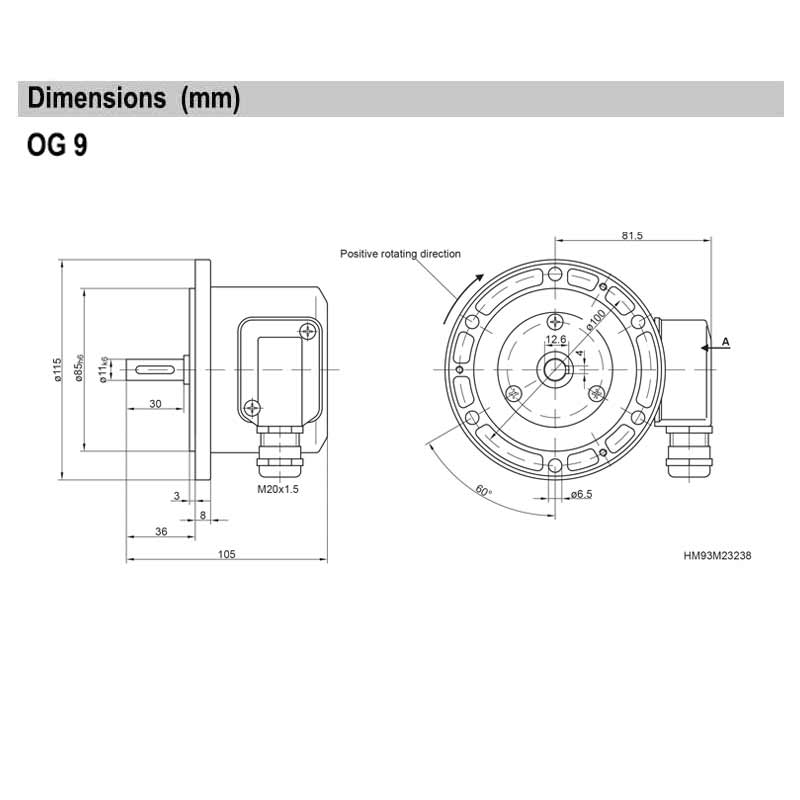

  • B10 Euro Flange mounting (FlangeDia. 115mm - PCD 100mm)
  • Output stage HTL with power linedriver
  • Operating Temperature -30 °C to +100 °C

Optional

  • Output stage TTL with regulator UB 9 to 26 VDC
  • Other PPR's available: 25, 120, 128, 180, 256, 360, 500, 720, 1000, 1024, 1250, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 11 mm
Mounting Type : B10 EURO Flange (Dia. 115mm; PCD: 100mm)
Encoder Type : Incremental
Output Signal : HTL
PPR : 500 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -30 °C to +100 °C
Protection : IP 55
Approval : CE, UL Approval / E217823
Weight : 0.98 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.
