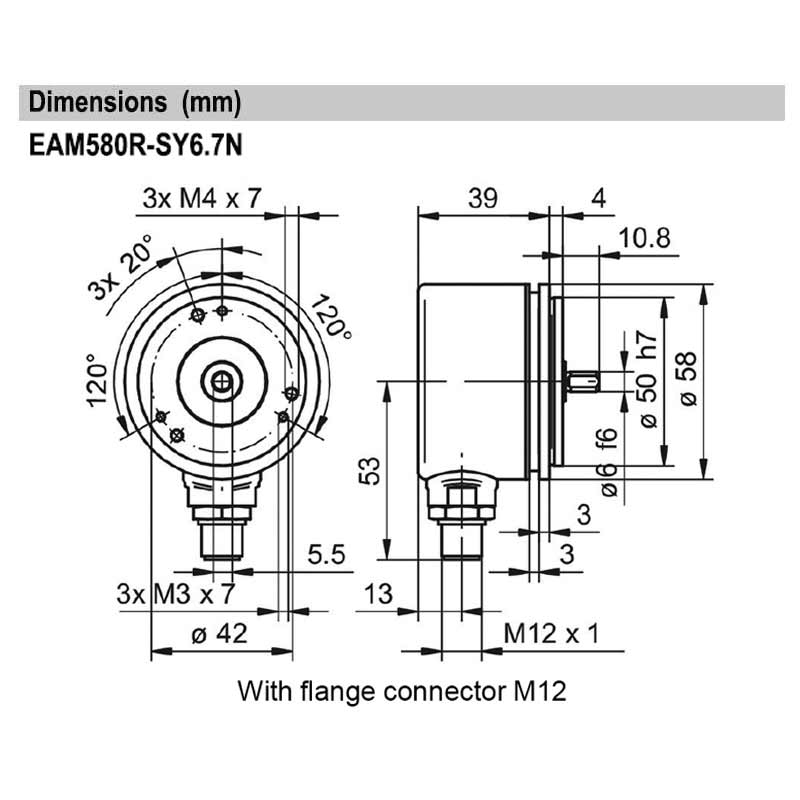

Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Analog SingleTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 360°; Output: 1-Channel, rising CW; Connection: 2-Meters prewired Cable, Radial outlet; IP 67
Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
Blind Hollow Shaft Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; With Stator Coupling Dia. 68mm; Bore Dia. 14mm, Clamping Ring on A-Side; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: 2-Meters prewired Cable, Radial outlet; IP 67
Analog SingleTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 360°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
Analog SingleTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 0 to +10 V; Measuring Range: 0° to 360°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
Blind Hollow Shaft Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; With Stator Coupling Dia. 68mm; Bore Dia. 12mm, Clamping Ring on A-Side; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67
EAM580R-SY6.7NC4.A36A1.A
