EAM580R-SC0.7LC4.A3601.A

Analog SingleTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 360°; Output: 1-Channel, rising CW; Connection: 2-Meters prewired Cable, Radial outlet; IP 67

Manufacturer: Baumer
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn Analog Magnetic Absolute Encoder
  • Body Size Dia. 58mm
  • Clamping Flange mounting; Solid Shaft Dia. 10mm x20mm L
  • Magnetic sensing method
  • E1 compliant design
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)

Optional

  • 14-30 Vdc: 0 to +10 V Output; 8-30 Vdc: 0.5 to +4.5 V Output
  • Flange Socket Radial - M12 5-Pin
  • Measuring Range: 0 to 3600°
Technical Data
Manufacturer : Baumer
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Absolute ST
Sensing Method : Magnetic
Supply Voltage : 14 to 30 Vdc
Connection Type : 2-Mtrs Cable, Radial Outlet
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : CE
Weight : 0.25 KG
Special Notes

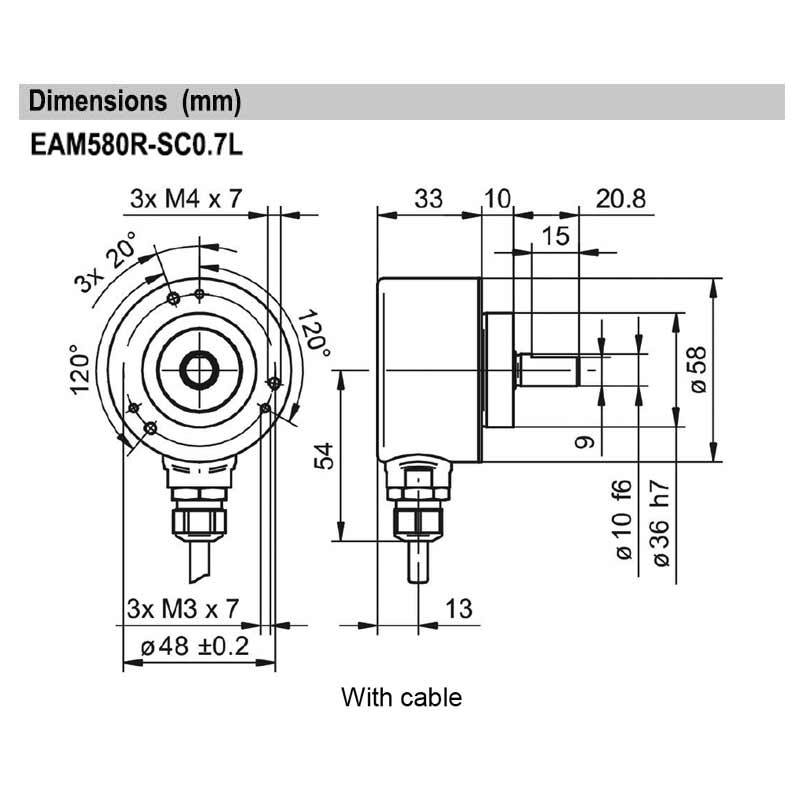

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
