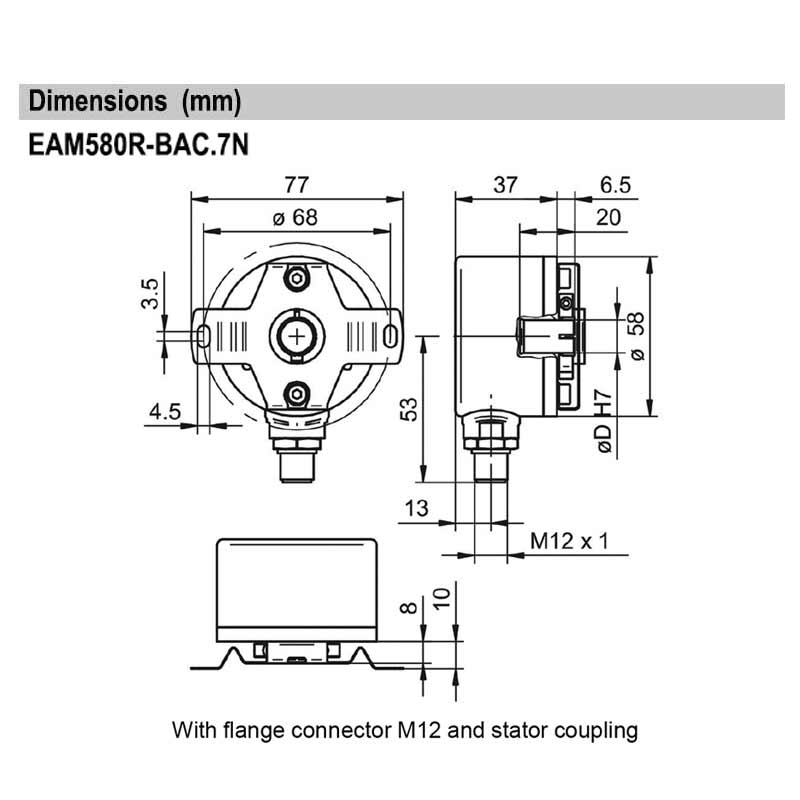

EAM580R-BAC.7NC4.A36A1.A

Blind Hollow Shaft Analog SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; With Stator Coupling Dia. 68mm; Bore Dia. 12mm, Clamping Ring on A-Side; Supply Voltage: 14 to 30 Vdc; Interface: 4 to 20 mA; Measuring Range: 0° to 3600°; Output: 1-Channel, rising CW; Connection: Flange Connector Radial M12 5-Pin Male Contacts, A-Coded; IP 67

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EAM580R-BAC.7NC4.A36A1.A
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • MultiTurn Analog Magnetic Absolute Encoder
  • Body Size Dia. 58mm
  • Blind Hollow Shaft, Bore Dia. 12mm, Clamping Ring on A-Side
  • Magnetic sensing method
  • E1 compliant design
  • High protection up to IP 67
  • High resistance to shock and vibrations
  • Protection against corrosion CX (C5-M)
  • Teach input for adjustment of measuring range
  • Applicable up to PLd (ISO 13849)

Optional

  • 14-30 Vdc: 0 to +10 V Output; 8-30 Vdc: 0.5 to +4.5 V Output
  • Bore Dia.: 10 mm, 14 mm, 15 mm
  • 2-Meter prewired Cable, Radial outlet
  • Measuring Range: 0 to 360°
  • Without Stator Coupling; Pin Torque support 5mm, Axial
Technical Data
Manufacturer : Baumer
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : With Stator Coupling
Encoder Type : Absolute ST+MT
Sensing Method : Magnetic
Supply Voltage : 14 to 30 Vdc
Connection Type : Flange Connector Radial - M12 5-Pin
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : CE
Weight : 0.25 KG
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
