M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <80mm; +Vs: 12-30 Vdc; NPN; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <300mm; +Vs: 12-30 Vdc; PNP; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67
M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <300mm; +Vs: 12-30 Vdc; NPN; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67
M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <800mm; +Vs: 12-30 Vdc; NPN; 270Ą Potentiometric Sensing Distance Adjustment; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67
M18x1 Cylindrical Diffuse Photoelectric Sensor with background suppression; Pulsed Red LED; Tw: 40-120mm; Tb: 5-120mm; 4-Turn Potentiometric Sensing Distance Adjustment; +Vs: 12-30 Vdc; NPN; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67
M18x1 Cylindrical SS+ABS Body Diffuse Photoelectric Sensor with background suppression & washdown design; Pulsed Red LED; Tw: 40-120mm; Tb: 5-120mm; 4-Turn Potentiometric Sensing Distance Adjustment; +Vs: 12-30 Vdc; PNP; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67/69K
M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <300mm; +Vs: 12-30 Vdc; PNP; 270Ą Potentiometric Sensing Distance Adjustment; Output Function: Light/Dark Operate; M12 4-Pin Connector; IP 67

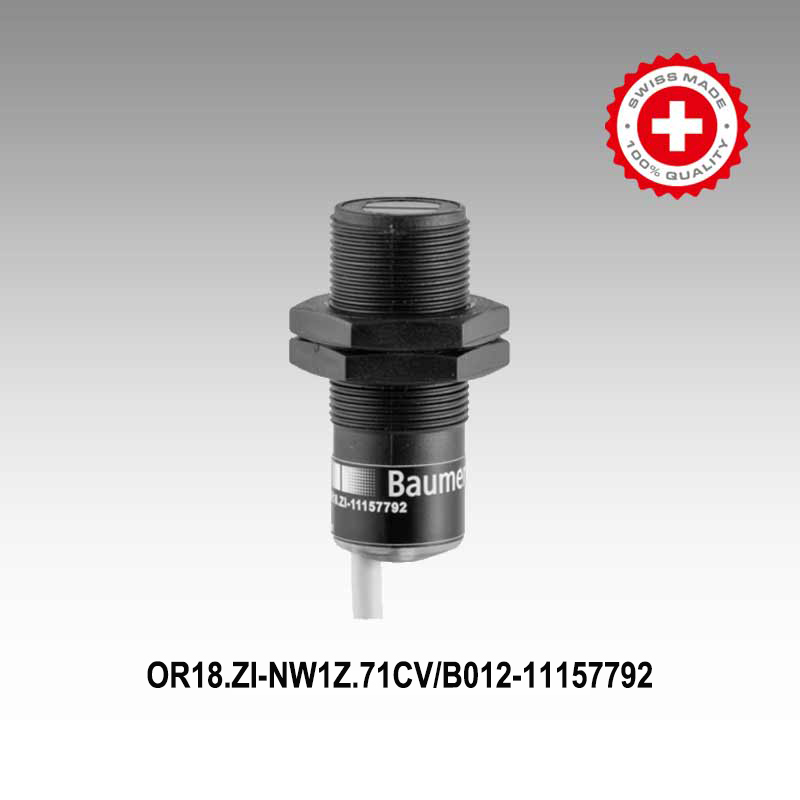

OR18.ZI-NW1Z.71CV/B012-11157792
