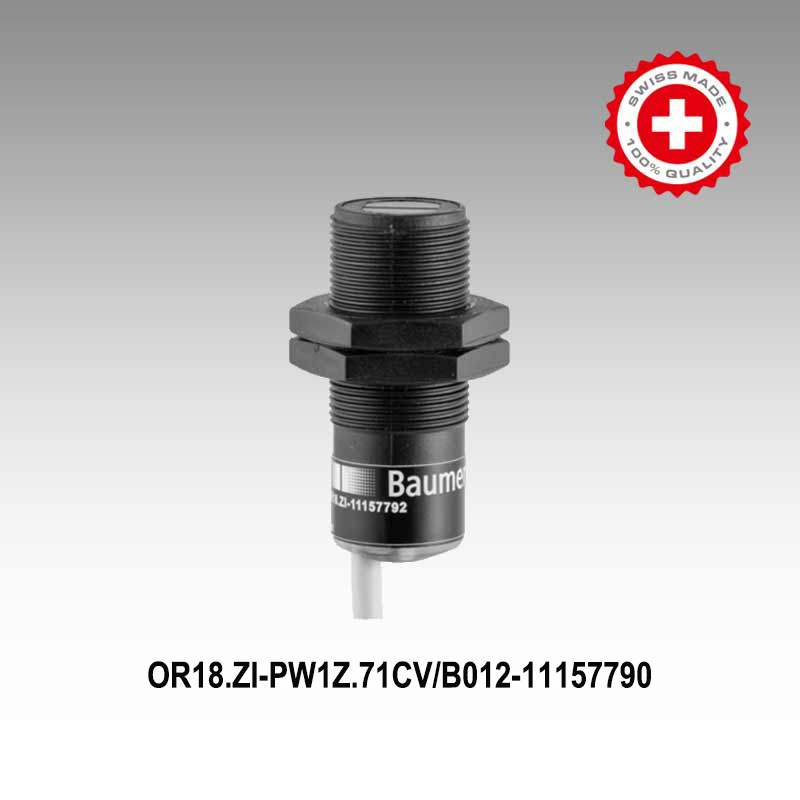

OR18.ZI-PW1Z.71CV/B012-11157790

M18x1 Cylindrical Diffuse Photoelectric Sensor with intensity difference; Pulsed Infrared Diode; Tw: <80mm; +Vs: 12-30 Vdc; PNP; Output Function: Light/Dark Operate; 4-Wire 2 Meters prewired PVC Cable connection; IP 67

Manufacturer: Baumer
Country of Origin : Switzerland
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • M18x1 Cylindrical Housing
  • Pulsed Infrared Diode
  • 4 Wires DC (PNP) Version
  • Uncompromising Accuracy
  • Exceptional Reliability
  • Economical Pricing
  • Ex-Stock Deliveries
Technical Data
Manufacturer : Baumer
Series : OR18
Sensor Type : Diffuse
Sensing Version : Intensity Difference
Light Source : Pulsed Infrared Diode
Sensing Distance : Less than 80 mm
Sensing Distance Adjustment : NO
Output Function : Light/Dark Operate
Supply Voltage : 12 to 30 Vdc
Output Circuit : PNP
Connection Type : 4-Wire 2-Mtrs PVC Cable

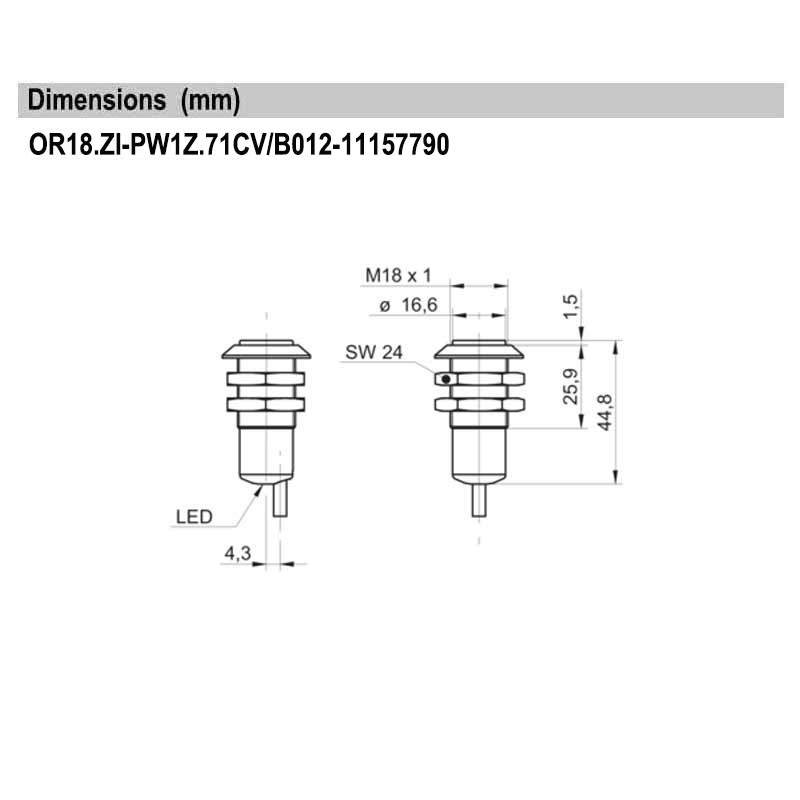

Dimensions (WxHxD /Dia.xL) : Dia.18mmxL:44.8mm
Approval : CE, UL
Operating Temperature : From -25 °C to +55 °C
Protection : IP 67
