HOG86KP6DN2048I

Blind Hollow Shaft HeavyDuty Incremental Encoder; PA Insulated Bearings; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 2048 ppr; 1-Meter prewired Cable - Radial outlet; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust, compact housing
  • Two PA Insulated Bearings with large distance, one at each end
  • High shaft load up to 450 N Radial, up to 350 N Axial
  • Shock resistant up to 250 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Highest operating speed 10000 rpm

Optional

  • Hybrid Bearings for extended service life
  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC / output stage TTL with inverted signals
  • 9 to 30 VDC / output stage TTL with inverted signals
  • Connection: Radial Terminal Box (Std. Version)
  • M23 12-Pin Radial Flange Connector
  • Bore Dia. 12mm - 12H7; 16mm - 16G7; 12mm - 12F6; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 500, 512, 1000, 1024, 1250, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R63
Encoder Type : Incremental
Output Signal : HTL
PPR : 2048 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : 1-M prewired Cable, Radial
Operating Temperature : From -40 °C to +100 °C
Protection : IP 66
Approval : CE, UL/CSA
Weight : 1.3 KG
Special Notes

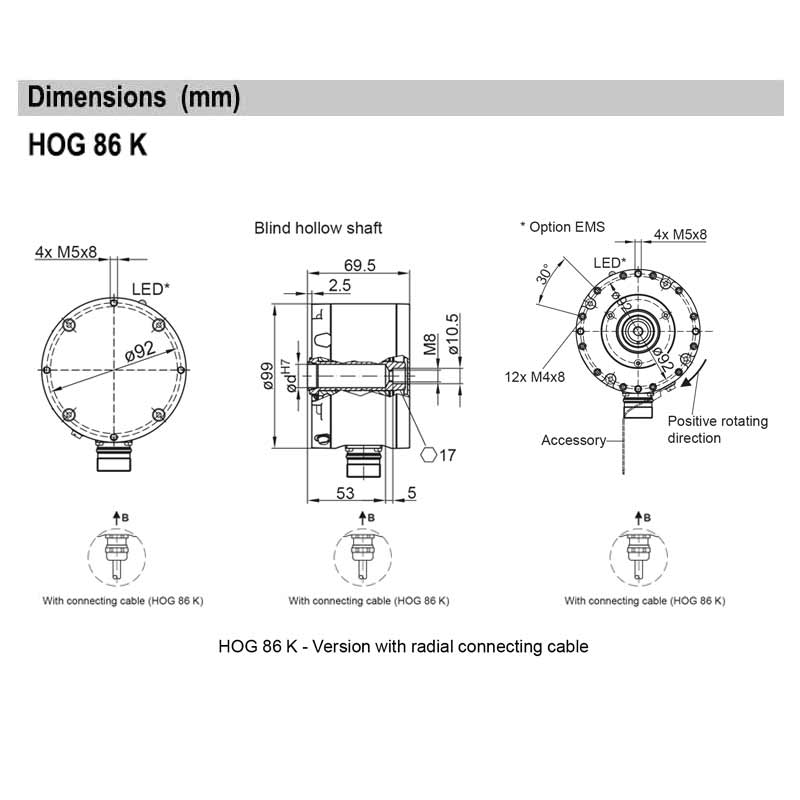

"Please refer above given PDF Data File for additional Product technical & dimensional information.
