HOG86TP6DN5000I

Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 5000 ppr; Connection: Radial Terminal Box; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust, compact housing
  • Two bearings with large distance, one at each end
  • High shaft load up to 450 N
  • Shock resistant up to 250 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Highest operating speed 10000 rpm
  • Terminal box cover can be turned by 180°

Optional

  • Hybrid bearing for extended service life
  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC / output stage TTL with inverted signals
  • 9 to 30 VDC / output stage TTL with inverted signals
  • Connection: 1xM23, 12-Pin Flange Connector, Radial, cw
  • 1-Meter prewired Cable, Radial outlet
  • Bore Dia. 12mm - 12H7; 16mm - 16G7; 12mm - 12F6; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 500, 512, 1000, 1024, 1250, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R63
Encoder Type : Incremental
Output Signal : HTL
PPR : 5000 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal Box - Radial
Operating Temperature : From -40 °C to +100 °C
Protection : IP 66
Approval : CE, UL/CSA
Weight : 1.3 KG
Special Notes

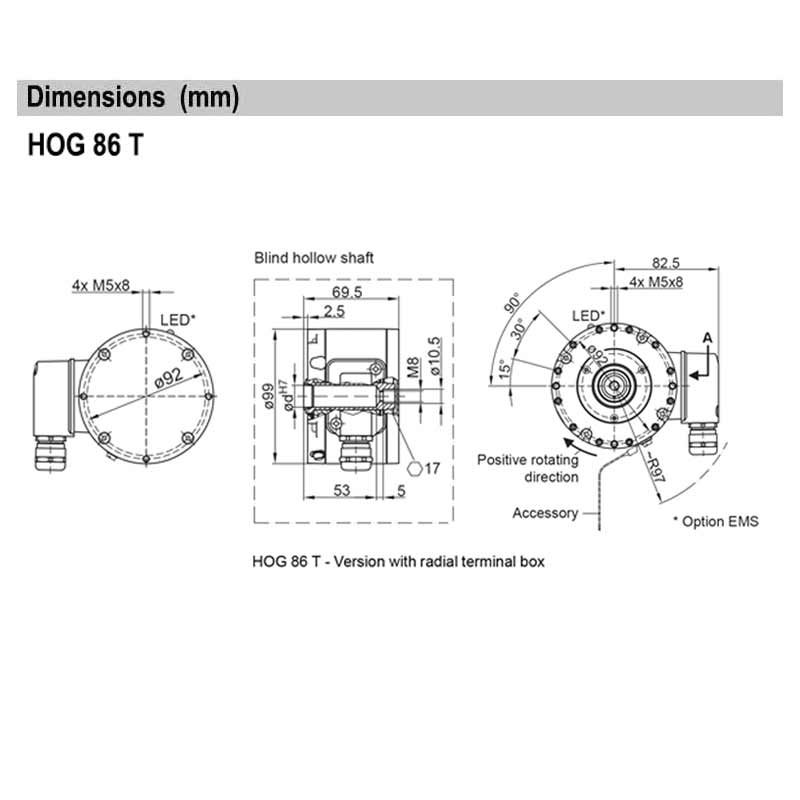

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
