HOG86FP2DN2048I

Blind Hollow Shaft HeavyDuty Incremental Encoder; PA Insulated Bearings; Bore Dia. 12mm (12H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 2048 ppr; M23 12-Pin Radial Flange Connector; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust, compact housing
  • Two PA Insulated Bearings with large distance, one at each end
  • High shaft load up to 450 N Radial, up to 350 N Axial
  • Shock resistant up to 250 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Highest operating speed 10000 rpm

Optional

  • Hybrid Bearings for extended service life
  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC / output stage TTL with inverted signals
  • 9 to 30 VDC / output stage TTL with inverted signals
  • Connection: Radial Terminal Box (Std. Version)
  • 1-Meter prewired Cable, Radial outlet
  • Bore Dia. 12mm - 12H7; 16mm - 16G7; 12mm - 12F6; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 500, 512, 1000, 1024, 1250, 2048, 2500, 3072, 4096, 5000
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 12 mm
Mounting Type : Support Plate R63
Encoder Type : Incremental
Output Signal : HTL
PPR : 2048 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Flange Connector Radial, M23 12-pin, Male Contacts, CW
Operating Temperature : From -40 °C to +100 °C
Protection : IP 66
Approval : CE, UL/CSA
Weight : 1.3 KG
Special Notes

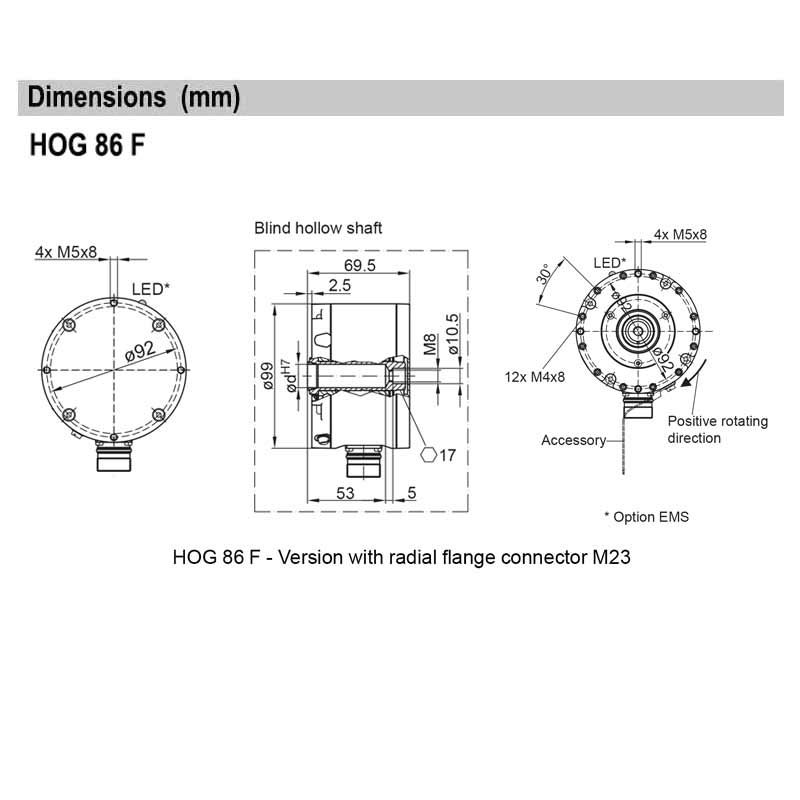

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
