EIL580-SC10.5LQ.01024.A - 11104960

EIL580-SC10.5LQ.01024.A - 11104960

Name: EIL580-SC10.5LQ.01024.A - 11104960
Brand: Baumer Thalheim
Availability: InStock

Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

Manufacturer: Baumer Thalheim

Country of Origin : Germany

Technical Datasheet:

EIL580-SC10.5LQ.01024.A - 11104960

Datasheet 2

Datasheet 3

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Body Size Dia. 58mm; Shaft Dia. 10mm, Shaft Length: 20mm
Precise optical sensing
Output Signal Level HTL
Clamping Flange mounting
Connection Radial (Standard Version with 2-Mtrs prewired shielded Cable
High protection IP 65 (Standard Version)
High resistance to shock and vibrations

Optional

Output stage TTL / 5VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 8 to 30 VDC
High protection IP 67
Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Axial cable outlet; Tangential Cable outlet
Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000

Technical Data

Manufacturer : Baumer Thalheim

Shaft Type : Solid Shaft Driven

Shaft (S)/Bore (B) Dia. : S: 10 mm

Mounting Type : Clamping Flange

Encoder Type : Incremental

Sensing Method : Optical

Output Signal : HTL

PPR : 1024 ppr

Supply Voltage : 4.75 to 30 VDC

Connection Type : 2-Mtrs PVC Shielded Cable, Radial Outlet

Operating Temperature : From -40 °C to +85 °C

Protection : IP 65

Approval : UL 508 / CSA 22.2

Weight : 0.3 KG

Special Notes

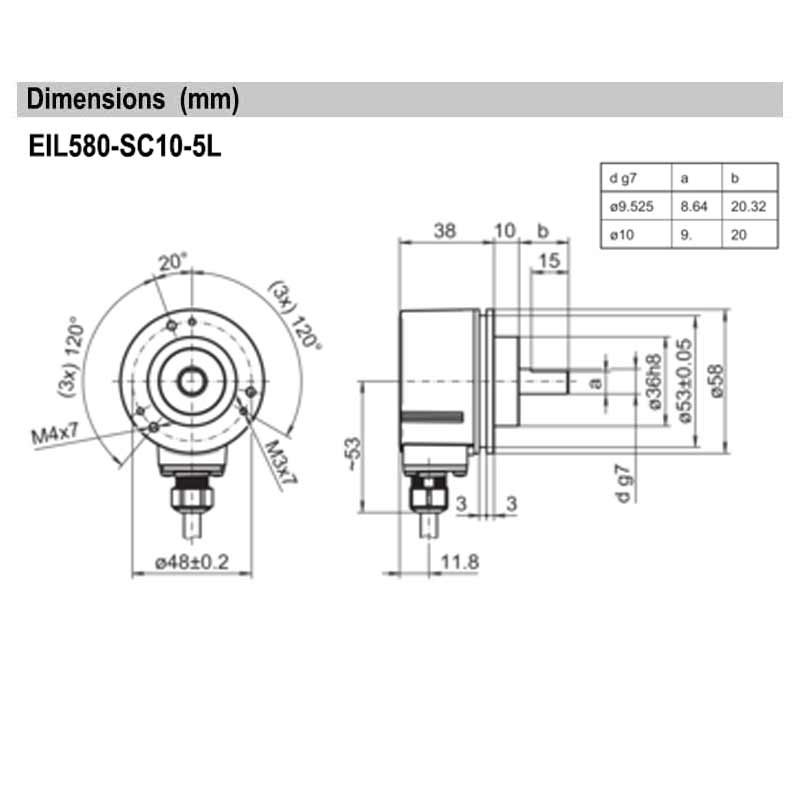

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
