EIL580-SY06.5UN.01024.A - 11184965

Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 8 to 30 Vdc; HTL/Push Pull, 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Axial Outlet

Manufacturer: Baumer Thalheim
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Body Size Dia. 58mm Shaft Dia. 6mm, Shaft Length: 10mm
  • Precise optical sensing
  • Output Signal Level HTL / Push Pull
  • Synchro Flange mounting
  • Connection Axial (Standard Version with 2-Mtrs prewired shielded Cable
  • High protection IP 65 (Standard Version)
  • High resistance to shock and vibrations

Optional

  • Output stage HTL with regulator UB 8 to 30 VDC; TTL with regulator UB 8 to 30 VDC; HTL with regulator 4.75 to 30 VDC
  • High protection IP 67
  • Optional Connections: M23, 12-Pin Radial or Axial, Male ccw Connector; M12, 8-Pin, Radial or Axial, Male, ccw Connector; Radial or Tangential Cable outlet
  • Other PPR's available: 100, 120, 150, 200, 250, 256, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 1500, 1800, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000
Technical Data
Manufacturer : Baumer Thalheim
Shaft Type : Solid Shaft Driven
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Incremental
Sensing Method : Optical
Output Signal : HTL
PPR : 1024 ppr
Supply Voltage : 8 to 30 Vdc
Connection Type : 2-Mtrs PVC Shielded Cable, Axial Outlet
Operating Temperature : From -40 °C to +85 °C
Protection : IP 65
Approval : UL 508 / CSA 22.2
Weight : 0.3 KG
Special Notes

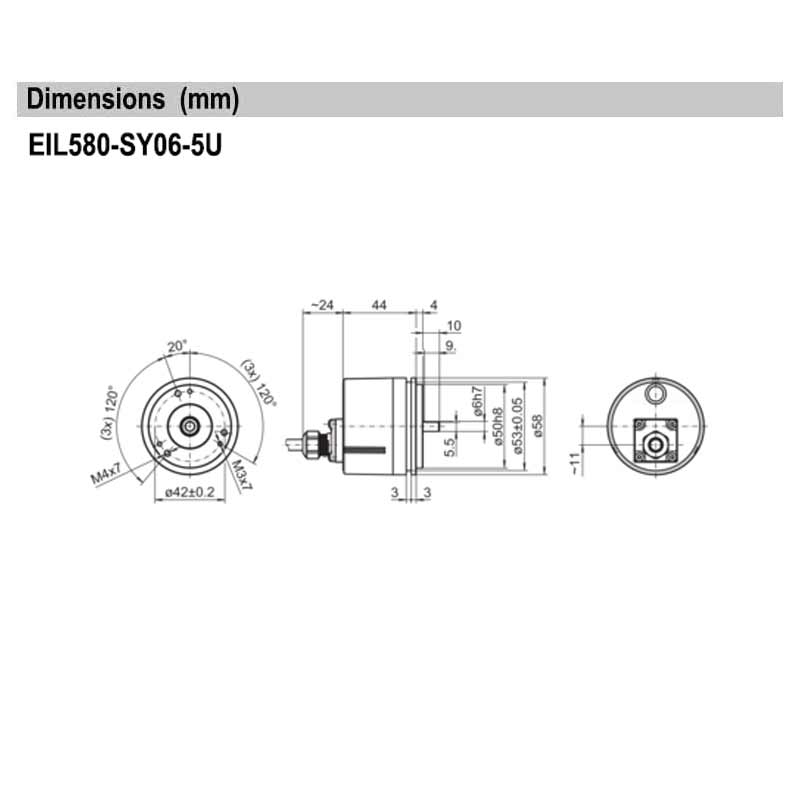

"Please refer above given PDF Data File for additional Product technical & dimensional information.
