Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; Flange Connector M23, 12-Pin, Radial, Male, ccw
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Spring Disk Coupling. (Bore Dia. 6 to 12mm with/without keyway on both ends)
Spring Disk Coupling. (Bore Dia. 11 to 22mm with/without keyway on both ends)
Spring Disk Coupling. (Bore Dia. 11 to 16mm with/without keyway on both ends)
Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 8 to 30 Vdc; HTL/Push Pull, 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Axial Outlet
Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 5 Vdc; TTL/RS422 compatible, 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 8 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Axial Outlet
Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 5 Vdc; TTL/RS422 compatible, 6-Channels; 1024 ppr; IP 65; Flange Connector M23, 12-Pin, Radial, Male, ccw
Incremental Encoder with Synchro Flange mounting and Solid Shaft (Dia.6mm x L:10mm); Supply Voltage: 8 to 30 Vdc; HTL/Push Pull, 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet
Incremental Encoder with Clamping Flange mounting and Solid Shaft (Dia.10mm x L:20mm); Supply Voltage: 4.75 to 30 Vdc; HTL/Push-Pull 6-Channels; 1024 ppr; IP 65; 2-Meters prewired PVC Shielded Cable, Radial Outlet

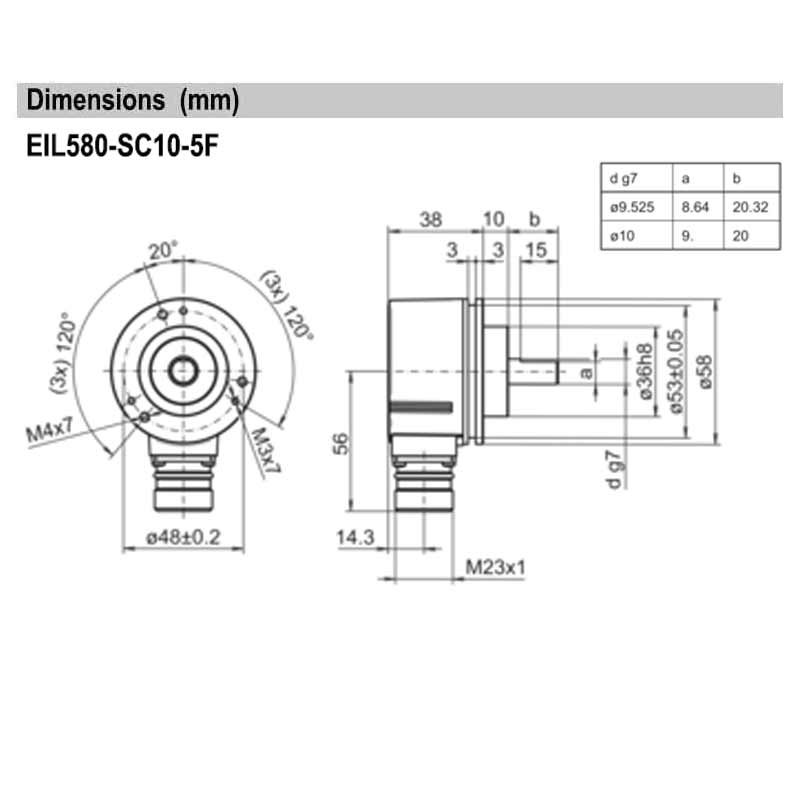

EIL580-SC10.5FQ.01024.A
