5019420.50A

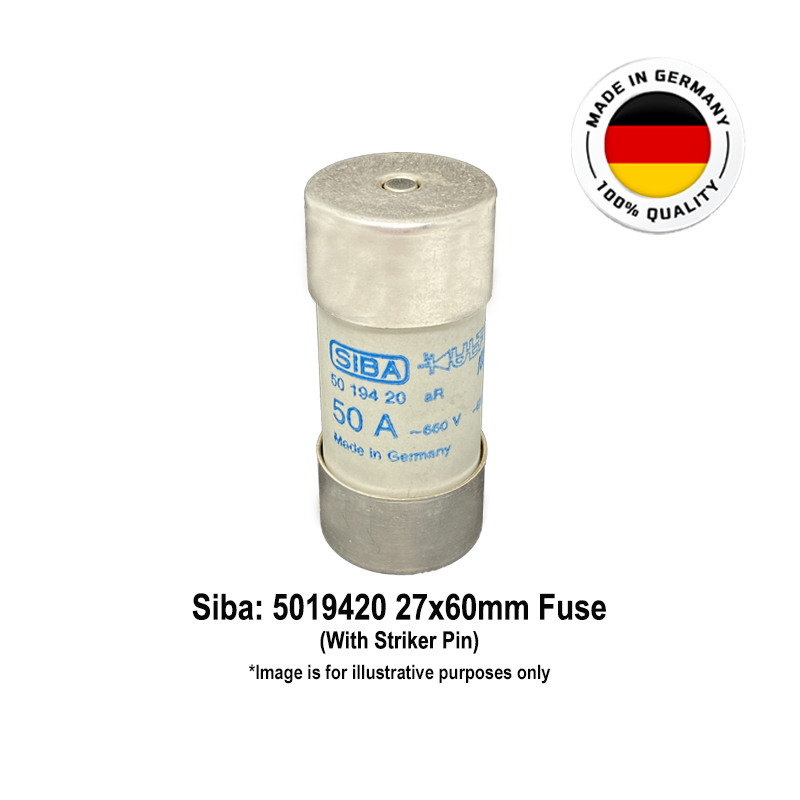

Siba Cylindrical Ultra Rapid Semiconductor Protection Fuses: 50 Amps, 660 Vac, 200 kA, Operating Class: aR, Size: 27x60mm, with Striker Pin

Manufacturer: Siba
Country of Origin : Germany
Technical Datasheet:
Packaging Quantity: 10
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Class aR Semiconductor Protection Fuses
  • Confirming to IEC 60269-4, VDE 0636-4, CE

Optional

  • Available Rated Current: 20, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250 Amps
  • Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 5019420
Fuse Type: Cylindrical aR
Operating Class: aR
Current Rating (A): 50 Amps
Voltage Rating (Vac): 660 Vac
AC Breaking Capacity (kA): 200 kA

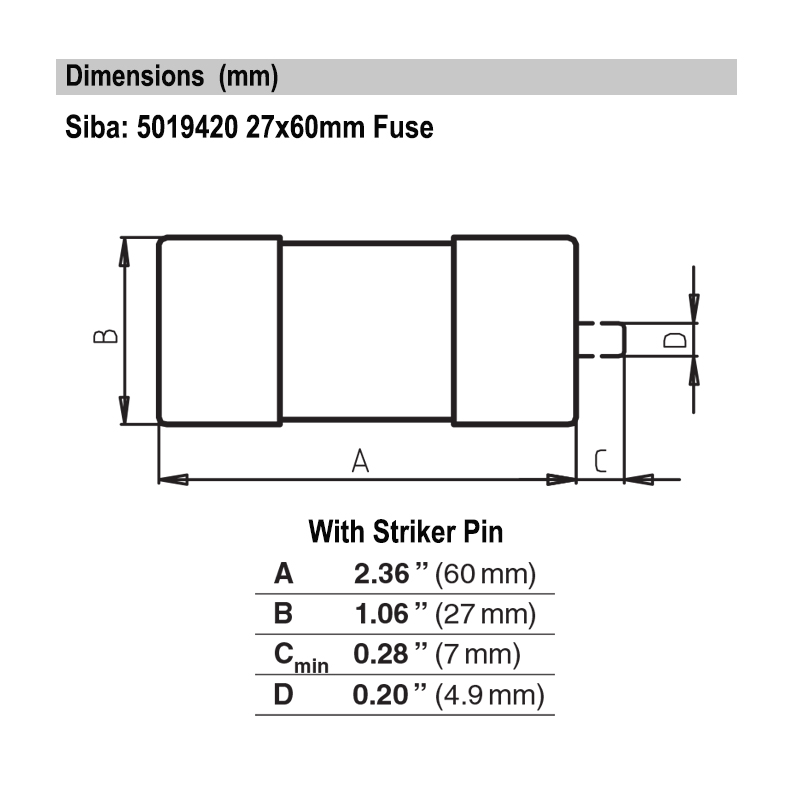

Size: 27x60mm
Pre-Arcing I2t Value A2s: 150
Total I2t Value A2s: 900
Power Loss (W): 15.0 W
Fuse Blown Indicator: With Striker Pin
Standards: IEC 60269-4, VDE 0636-4, CE
Packaging Quantity (Pcs.): 10
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
