SPF12A

Data Sheet
Littelfuse

Littelfuse Cylindrical Solar/PV-Fuses: 12 Amps, 1000 Vdc/20kA, Operating Class: gPV, Size: 10x38mm, without Indicator
Specifically designed for the protection of Photovoltaic (PV) Systems

Full range, fast-acting fuse helps eliminate common low-overload faults

Prevents power generation losses due to nuisance tripping from changes in temperature

UL Listed (File: E339112), CSA Certified (File: 029862_0_000)

UL 248-1, 248-19, IEC 60269-6, RoHS compliant

Learn More
Quantity :

Minimum Order Quantity : 20 Order In Multiples of Quantity : 10
SPF15A

Data Sheet
Littelfuse

Littelfuse Cylindrical Solar/PV-Fuses: 15 Amps, 1000 Vdc/20kA, Operating Class: gPV, Size: 10x38mm, without Indicator
Specifically designed for the protection of Photovoltaic (PV) Systems

Full range, fast-acting fuse helps eliminate common low-overload faults

Prevents power generation losses due to nuisance tripping from changes in temperature

UL Listed (File: E339112), CSA Certified (File: 029862_0_000)

UL 248-1, 248-19, IEC 60269-6, RoHS compliant

Learn More
Quantity :

Minimum Order Quantity : 20 Order In Multiples of Quantity : 10
SPF25A

Data Sheet
Littelfuse

Littelfuse Cylindrical Solar/PV-Fuses: 25 Amps, 1000 Vdc/20kA, Operating Class: gPV, Size: 10x38mm, without Indicator
Specifically designed for the protection of Photovoltaic (PV) Systems

Full range, fast-acting fuse helps eliminate common low-overload faults

Prevents power generation losses due to nuisance tripping from changes in temperature

UL Listed (File: E339112), CSA Certified (File: 029862_0_000)

UL 248-1, 248-19, IEC 60269-6, RoHS compliant

Learn More
Quantity :

Minimum Order Quantity : 20 Order In Multiples of Quantity : 10

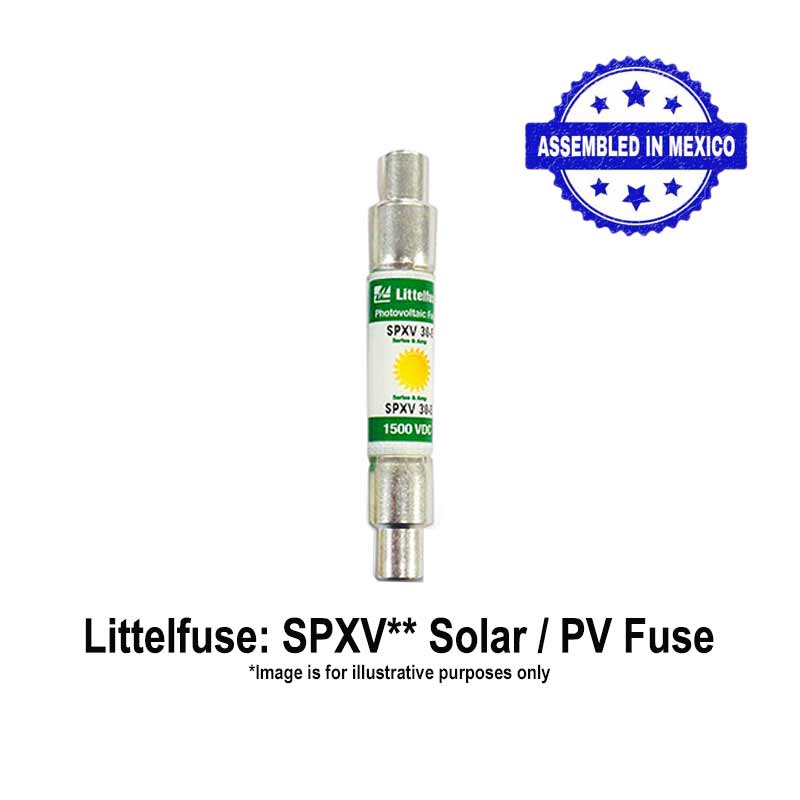

SPXV30

Data Sheet
Littelfuse

Littelfuse Cylindrical Solar/PV-Fuses: 30 Amps, 1500 Vdc/30kA, Operating Class: gPV, Size: 10x85mm, without Indicator
Specifically designed for the protection of Photovoltaic (PV) Systems

Full range, fast-acting fuse helps eliminate common low-overload faults

Up to 50 kA interrupting rating

UL 248-19 Listed (File: E339112), UL 248-1

IEC 60269-6, RoHS compliant, CE

Learn More
Quantity :

Minimum Order Quantity : 5 Order In Multiples of Quantity : 5
