PV-250ANH2

Eaton Bussmann NH Solar / PV-Fuses: 250 Amps, 1000 Vdc/50kA, Operating Class: gPV, Size: DIN NH2

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Compact design, gPV Fuses specifically designed to protect & isolate Photovoltaic Cells
  • IEC 60269-6, UL 2579 (File No. E335324), CSA, RoHS, CE
  • Low Power loss
  • Dual Indicator system
Technical Data
Manufacturer: Eaton Bussmann
Series: PV-***ANH2
Fuse Type: NH gPV
Current Rating (A): 250 Amps
Voltage Rating (Vdc): 1000 Vdc
DC Breaking Capacity (kA): 50 kA
Size: DIN NH2
Pre-Arcing I2t Value A2s: 17000
Total I2t Value A2s: 136000
Power Loss (W): 38.0 W
Fuse Blown Indicator: Dual Indicator
Standards: IEC 60269-6, UL 2579 File No. E335324, CSA, RoHS, CE
Packaging Quantity (Pcs.): 1
Weight (Grams): 600
Special Notes

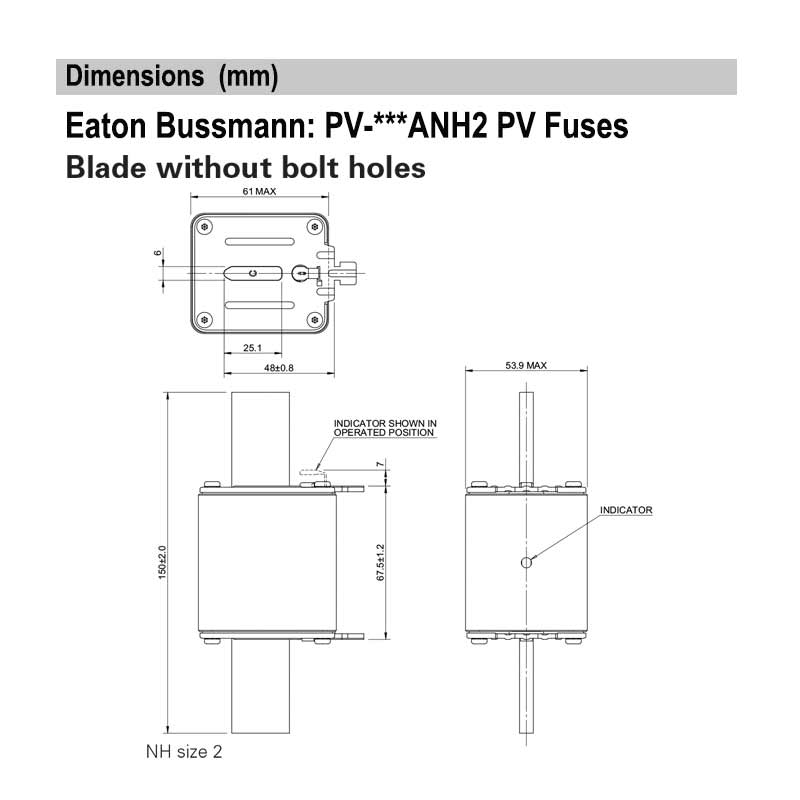

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
