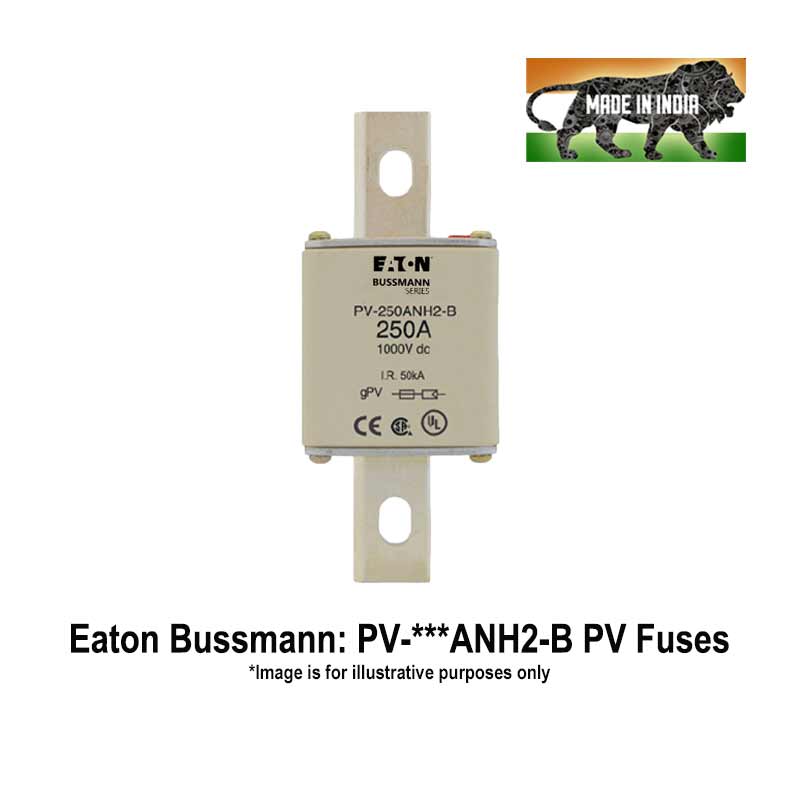

PV-250ANH2-B

Eaton Bussmann Bolt Holes Blade NH Solar / PV-Fuses: 250 Amps, 1000 Vdc/50kA, Operating Class: gPV, Size: DIN NH2

Manufacturer: Eaton Bussmann
Country of Origin : India
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Compact design, gPV Fuses specifically designed to protect & isolate Photovoltaic Cells
  • IEC 60269-6, UL 2579 (File No. E335324), CSA, RoHS, CE
  • Low Power loss
  • Dual Indicator system
Technical Data
Manufacturer: Eaton Bussmann
Series: PV-***ANH2-B
Fuse Type: Bolt Holes Blade NH gPV
Current Rating (A): 250 Amps
Voltage Rating (Vdc): 1000 Vdc
DC Breaking Capacity (kA): 50 kA
Size: DIN NH2
Pre-Arcing I2t Value A2s: 17000
Total I2t Value A2s: 136000
Power Loss (W): 38.0 W
Fuse Blown Indicator: Dual Indicator
Standards: IEC 60269-6, UL 2579 File No. E335324, CSA, RoHS, CE
Packaging Quantity (Pcs.): 1
Weight (Grams): 650
Special Notes

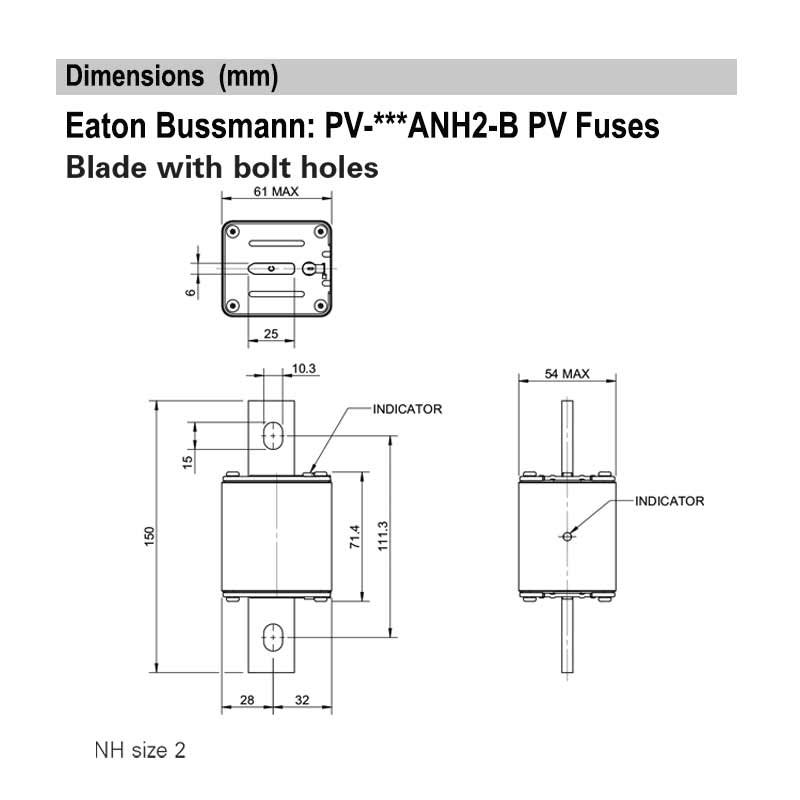

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
