DTD-4000 Mark-II

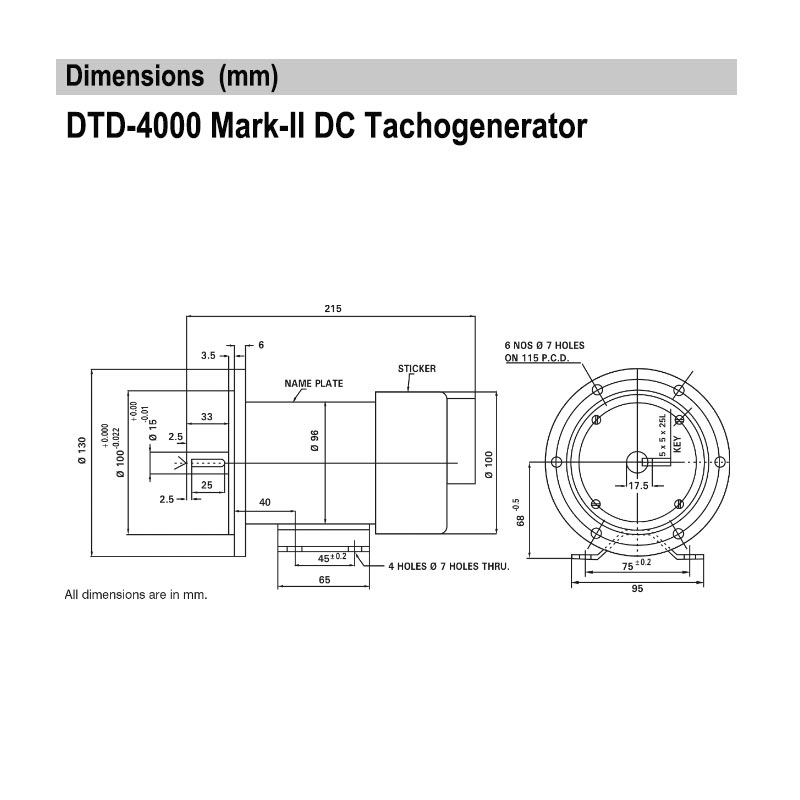

DC Tachogenerator with own bearings; Output: 50Vdc/1000rpm (200Vdc @ 4000 rpm max.); IP 44; Solid Shaft (Dia. 15mm x 33mm Length, with Keyway); with Flange cum Foot mounting; Flange Dia. 130mm, PCD: 115mm, 6-Holes; Foot mounting: Width 95mm, Fixing center: 75mm.

Manufacturer: ElectroWebStore
Country of Origin : India
Technical Datasheet:
PDF-Icon DTD-4000 Mark-II
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Features

  • Silver Graphite Brushes are used for long life, minimum voltage drop & spark free commutation.
  • Prelubricated and sealed precision ball bearings are used for long maintenance free operation.
  • Brush holders, brushes designed to ensure smooth movement, equal brush tension and spark-less operation.
  • Electrolytic grade copper segments moulded and machined to close tolerances in the commutator for spark-less and minimum wear. Use of mica insulation between segments to offer maximum dielectric strength and stability. Armature built with special grade silicon steel stampings and wound with polyester grade Class "F" Enameled wire and vacuum impregnated for high electrical and mechanical strength.
  • Armature dynamically balanced for vibration free rotation, spark-less commutation and low ripple content.
  • Induction hardened Shaft & key for long life.
  • Universal mounting possibility: Flange cum foot mounting.

Optional

  • Other Output Voltage ratings or mechanical changes are possible / available on request.
  • Temperature compensation available on request.
  • Suitable Flexible Couplings are available on request at extra cost.
Technical Data
Manufacturer : ElectroWebStore
Approval : CE
OutPut Voltage : 50Vdc/1000rpm
Connection Type : Terminal Box
Series : DTD-4000
Weight : 4.5 KG
Shaft Type : Solid Shaft Driven
Mounting Type : Flange cum Foot mounting
Output Signal : Single
Special Notes

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
