GXMMW.B203P32

SingleTurn/MultiTurn Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 10 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with 3xCable Gland; IP 65

Manufacturer: Baumer IVO
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • MultiTurn Absolute Encoder
  • Body Size Dia. 58mm
  • Optical sensing method
  • Maximum resistance against magnetic fields

Optional

  • Incremental Outputs and Stainless Steel design
  • Clamping Flange mounting
  • Protection Class: IP 54
  • Interface: CANopen®/DeviceNet/EtherCAT/EtherNet-IP/SAEJ1939/PROFINET/POWERLINK/Profibus/SSI
  • Code continuity check optional by bus
Technical Data
Manufacturer : Baumer IVO
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 6 mm
Mounting Type : Synchro Flange
Encoder Type : Absolute ST+MT
Sensing Method : Optical
Supply Voltage : 10 to 30 Vdc
Connection Type : Bus Cover
Operating Temperature : From -25 °C to +85 °C
Protection : IP 65
Approval : UL approval / E63076
Weight : 0.65 KG
Special Notes

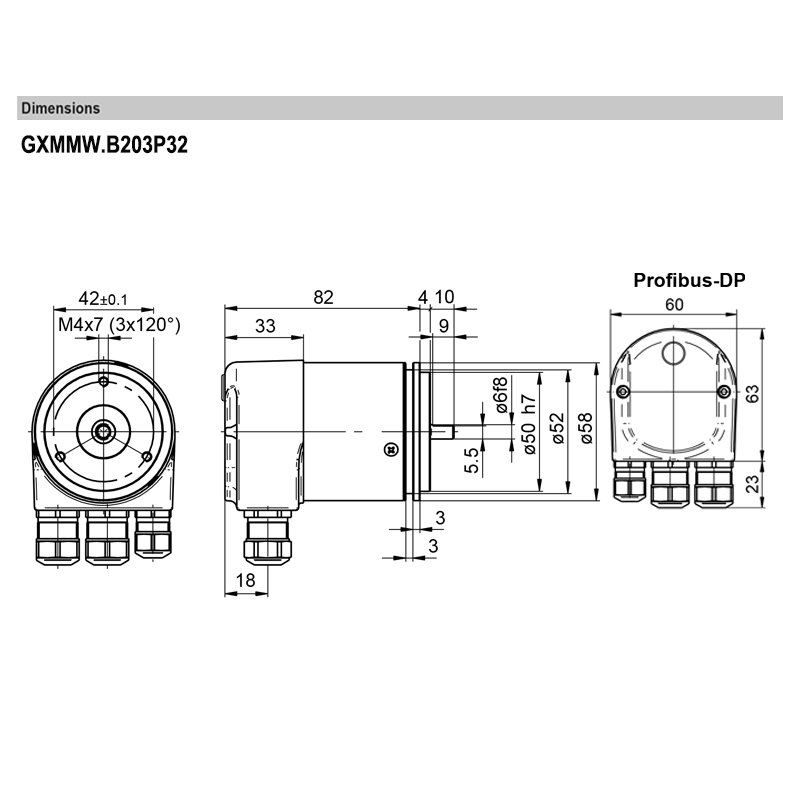

"Please refer above given PDF Data File for additional Product technical & dimensional information.
