SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: EtherCAT; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with M12 Connector; IP 65
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: Profibus-DPV2; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with 3xCable Gland; IP 65
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: EtherNet/IP; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with M12 Connector; IP 65
SingleTurn/MultiTurn Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 10 to 30 Vdc; Interface: Profibus-DPV0; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with 3xCable Gland; IP 65
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: SSI; Binary Code; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with M12 Connector; IP 65
SingleTurn/MultiTurn Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: CANopen®; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with 3xCable Gland; IP 65
SingleTurn/MultiTurn Absolute Encoder; Synchro Flange mounting; Solid Shaft Dia. 6f8 x L:10mm; Supply Voltage: 10 to 30 Vdc; Interface: PROFINET; Absolute Resolution: 13-Bit ST+16-Bit MT; Without Incremental Output; Connection: Bus Cover with M12 Connector; IP 65

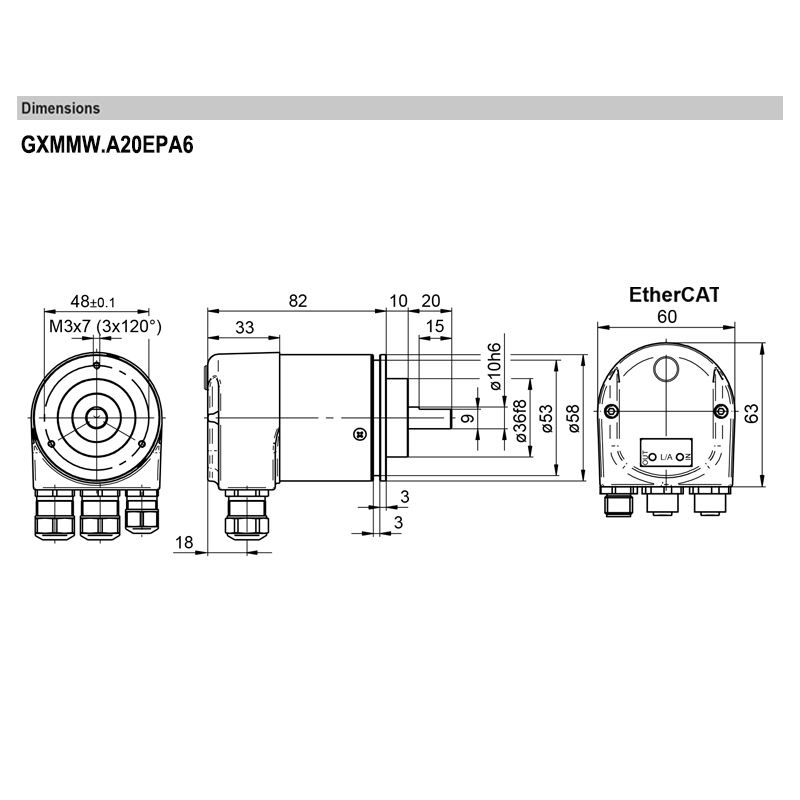

GXMMW.A20EPA6
