HOG10D1024I-LR-16H7-KLK-AX - 11070361

Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (4-Channels: K1, K1', K2, K2'); 1024 ppr; Dust Protection; Connection: Terminal End Cover - Axial; IP 66

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Robust housing
  • Hybrid bearing for extended service life
  • Two bearings with large distance, one at each end
  • High shaft load up to 450 N axial, 600 N radial
  • Shock resistant up to 300 g, 6ms
  • Shaft insulation up to 2.8 kV
  • Terminal End Cover - Axial

Optional

  • Function control with EMS (Enhanced Monitoring System)
  • 5 VDC or 9 to 30 Vdc - Output Stage TTL with inverted signals
  • Connection: Termainal Box - Radial
  • Bore Dia. 12mm - 12H7; 20mm; Conical Shaft Bore 17mm (1:10)
  • Other PPR's available: 300, 500, 512, 1000, 1024, 1200, 2048, 2500, 3072, 4096, 5000
  • Redundant sensing with two terminal boxes
  • With heating up to -50°C
  • With earthing brushes
  • Sealing system for tropical environments
Technical Data
Manufacturer : Baumer Hübner
Shaft Type : Blind Hollow Shaft
Shaft (S)/Bore (B) Dia. : B: 16 mm
Mounting Type : Support Plate R69
Encoder Type : Incremental
Output Signal : HTL
PPR : 1024 ppr
Supply Voltage : 9 to 30 Vdc
Connection Type : Terminal End Cover - Axial
Operating Temperature : From -40 °C to +100 °C
Protection : IP 66
Approval : CE, UL Approval / E217823
Weight : 1.6 KG
Special Notes

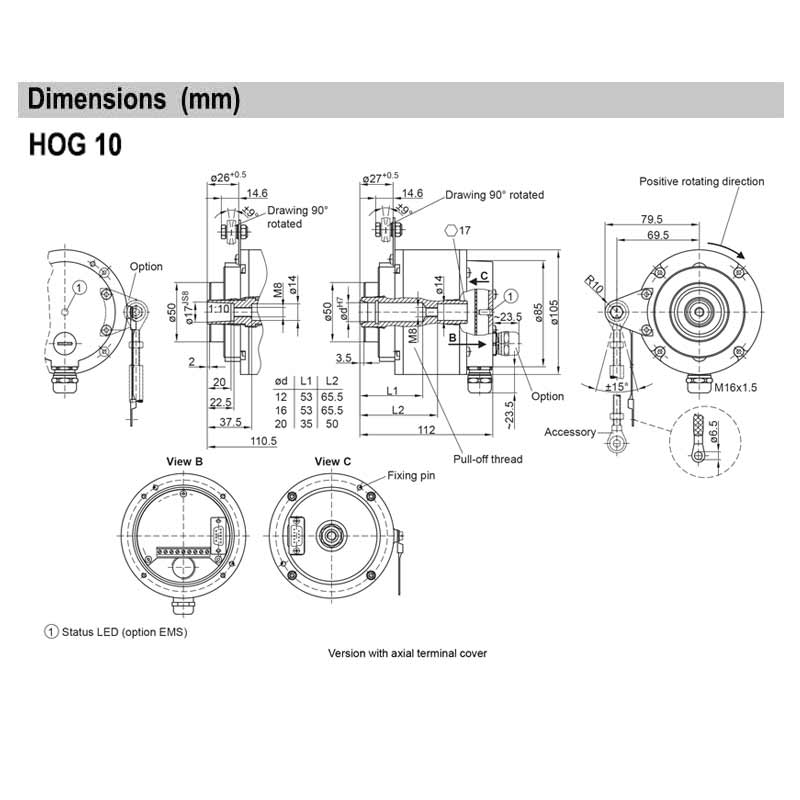

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
