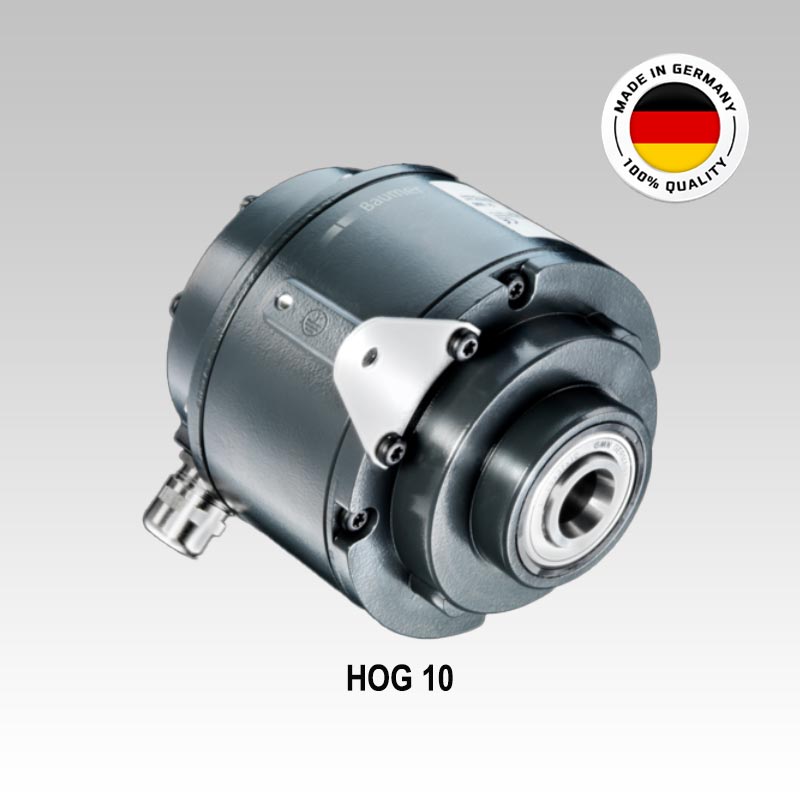

Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 5000 ppr; Dust Protection; Connection: Terminal Cover - Axial; IP 66

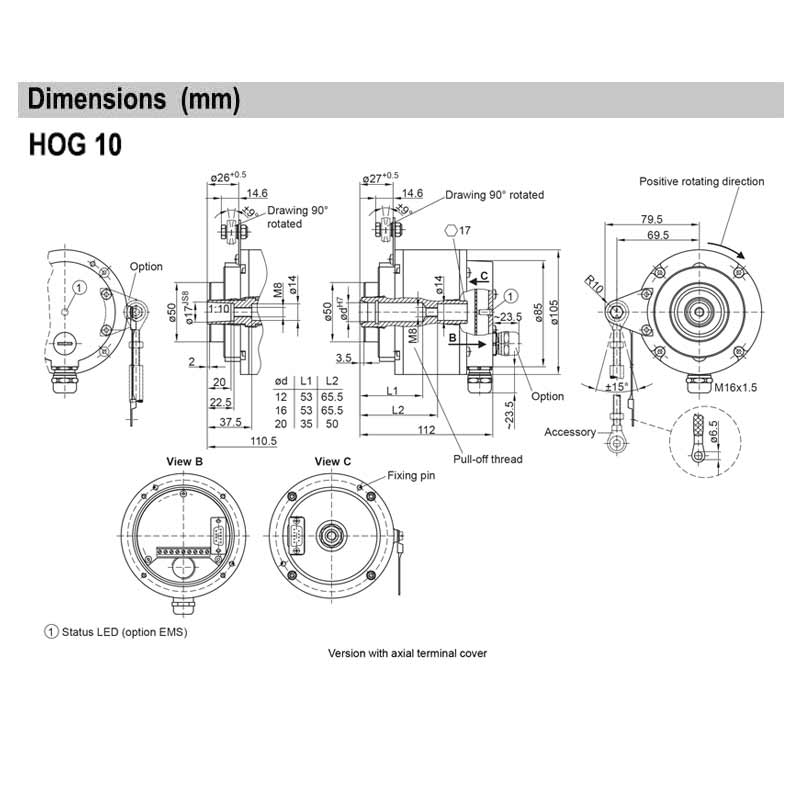

"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
M6 Torque Arm for Baumer Hubner HeavyDuty Hollow Shaft Incremental Encoders; L: 460mm (max.), shortenable to minimum: 135mm; with ball joints of 6mm
Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1024 ppr; Dust Protection; Connection: Terminal Cover - Axial; IP 66
Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 12mm (12H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (6-Channels); 1024 ppr; Dust Protection; Connection: Terminal Cover - Axial; IP 66
Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 5 Vdc; Output Signals: TTL/RS422 with Inverted Signals (6-Channels); 1024 ppr; Dust Protection; Connection: Terminal Cover - Axial; IP 66
Blind Hollow Shaft HeavyDuty Incremental Encoder; Bore Dia. 16mm (16H7x53mm); Supply Voltage: 9 to 30 Vdc; Output Signals: HTL with Inverted Signals (4-Channels: K1, K1', K2, K2'); 1024 ppr; Dust Protection; Connection: Terminal End Cover - Axial; IP 66
HOG10DN5000I-LR-16H7-KLK-AX
