GT7,16L/460

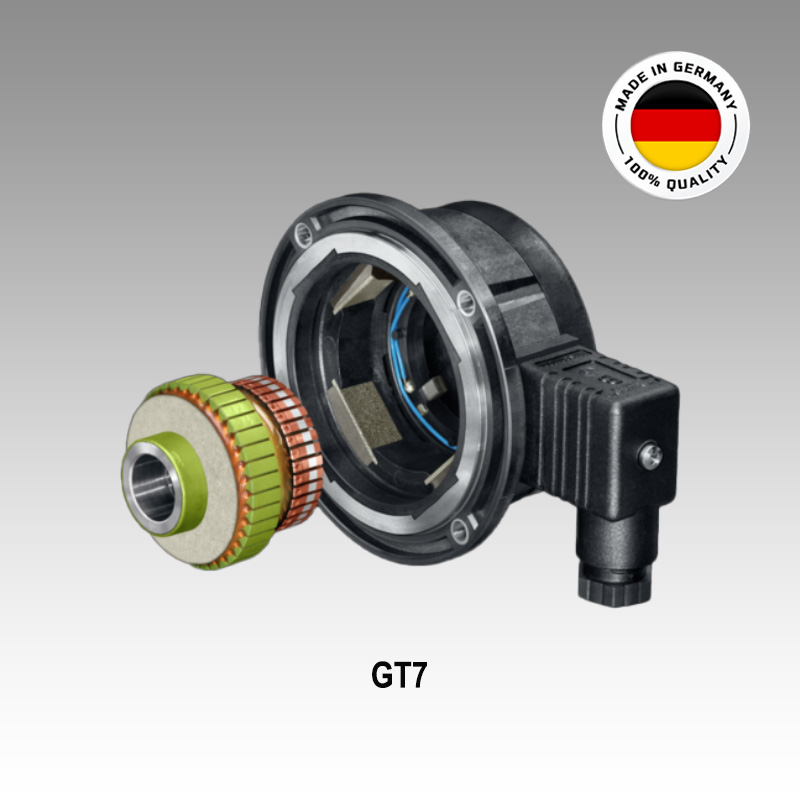

Blind Hollow Shaft LongLife Bearingless DC Tachogenerator; Bore Dia. 14mm; Uo: 60Vdc/1000rpm; IP 55

Manufacturer: Baumer Hübner
Country of Origin : Germany
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Features

  • Temperature compensation of Tacho Voltage as standard
  • Open Circuit Voltage 60mV per rpm
  • Blind Hollow Shaft - Bore Dia 14mm (14H7)
  • High signal quality due to patented LongLife technology
  • Low moment of inertia
  • No auxiliary energy source required
  • Screw Terminal Connector
Technical Data
Manufacturer : Baumer Hübner
Approval : CE
OutPut Voltage : 60Vdc/1000rpm
Connection Type : Screw Terminal Connector
Series : GT7
Weight : 0.18 KG
Shaft Type : Blind Hollow Shaft

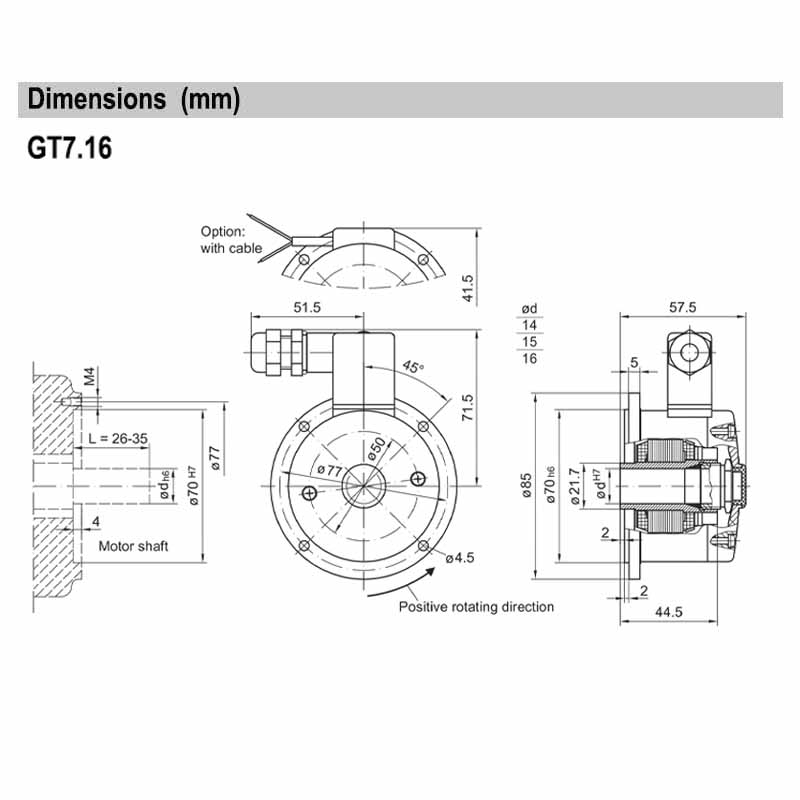

Mounting Type : Flange mounting (Dia. 85mm; PCD: 77mm)
Output Signal : Single
Special Notes
