SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Gray; Absolute Resolution: 14-Bit ST+16-Bit MT; Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 65
"Please refer above given PDF Data File for additional Product technical & dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Binary; Absolute Resolution: 13-Bit ST+12-Bit MT;Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 67
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: CANopen® (DS 406); Absolute Resolution: 14-Bit ST+18-Bit MT; Without Incremental Output; Connection: Flange Connector Radial , Connector M12 5-Pin Male Contacts, A-Coded; IP 67
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Gray; Absolute Resolution: 14-Bit ST+12-Bit MT; Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 67
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: PROFINET IO; Absolute Resolution: 14-Bit ST+16-Bit MT; Without Incremental Output; Connection: Flange Connector Axial 2xM12 4-Pin Female contacts CW, 1xM12 4-Pin Male contacts CCW; IP 67
SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: CANopen® (DS 406); Absolute Resolution: 14-Bit ST+18-Bit MT; Without Incremental Output; Connection: 2-Meters prewired Cable, Radial outlet; IP 65

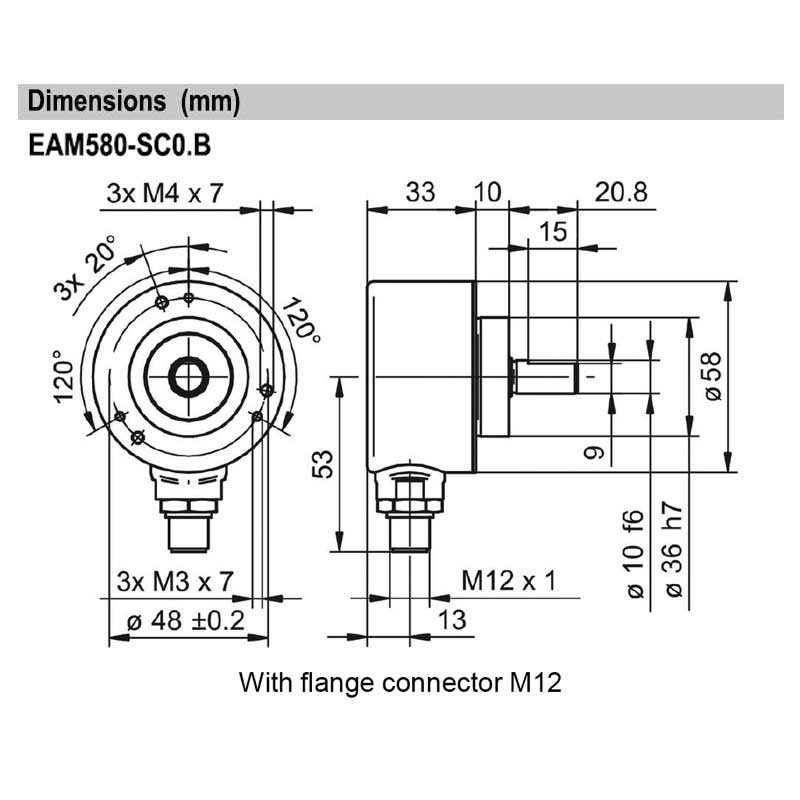

EAM580-SC0.5B4G.14160.A
