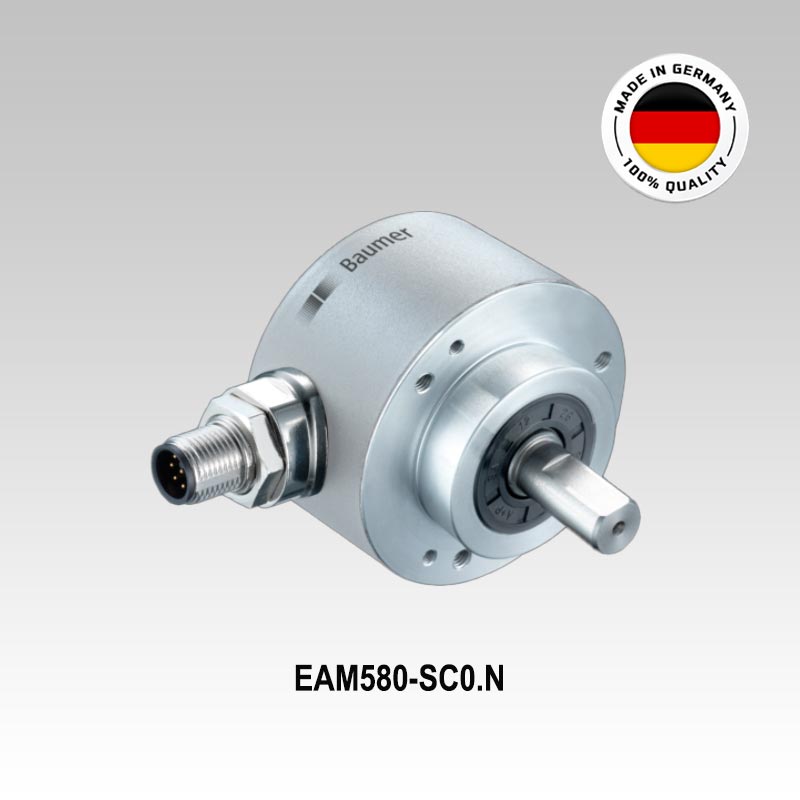

EAM580-SC0.7NC6.14180.A

SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: CANopen® (DS 406); Absolute Resolution: 14-Bit ST+18-Bit MT; Without Incremental Output; Connection: Flange Connector Radial , Connector M12 5-Pin Male Contacts, A-Coded; IP 67

Manufacturer: Baumer
Country of Origin : Germany
Technical Datasheet:
PDF-Icon EAM580-SC0.7NC6.14180.A
PDF-Icon Datasheet 2
PDF-Icon Datasheet 3
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • SingleTurn / MultiTurn - CANopen® Magnetic Absolute Encoder
  • Precise magnetic sensing
  • Angular accuracy up to ±0.15°
  • High resistance to shock and vibrations
  • High protection up to IP 67
  • Electronic gear function

Optional

  • Protection against corrosion CX (C5-M)
  • CANopen® Lift (DS 417) Interface
  • Flange Socket Radial, M12 8-pin; 2-M prewired Radial Cable
  • Incremental Output: 1024/2048/4096 ppr TTL (RS422) 4-Channels
  • Protection Class: IP 65
Technical Data
Manufacturer : Baumer
Shaft Type : Solid Shaft
Shaft (S)/Bore (B) Dia. : S: 10 mm
Mounting Type : Clamping Flange
Encoder Type : Absolute ST+MT
Sensing Method : Magnetic
Supply Voltage : 10 to 30 Vdc
Connection Type : Flange Connector Radial - M12 5-Pin
Operating Temperature : From -40 °C to +85 °C
Protection : IP 67
Approval : CE
Weight : 0.25 KG
Special Notes

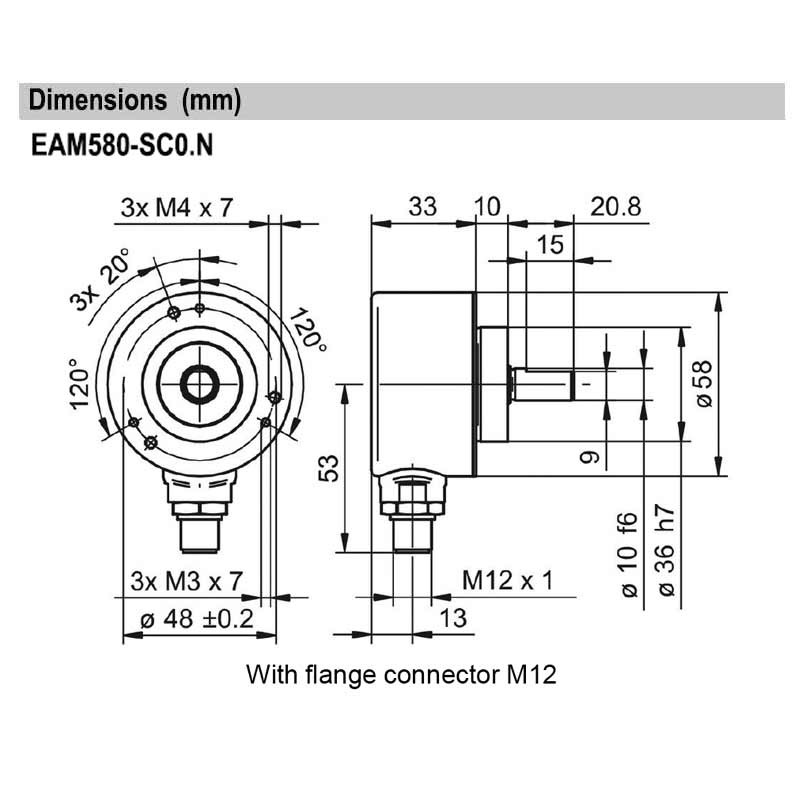

"Please refer above given PDF Data File for additional Product technical & dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing,performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Associated Products
EAM580-SC0.7B4B.13120.A
Part No: EAM580-SC0.7B4B.13120.A

SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 4.5 to 30 Vdc; Interface: SSI Binary; Absolute Resolution: 13-Bit ST+12-Bit MT;Without Incremental Output; Connection: Flange Connector Radial M12, 8-Pin, Male Contacts, CCW; IP 67

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request

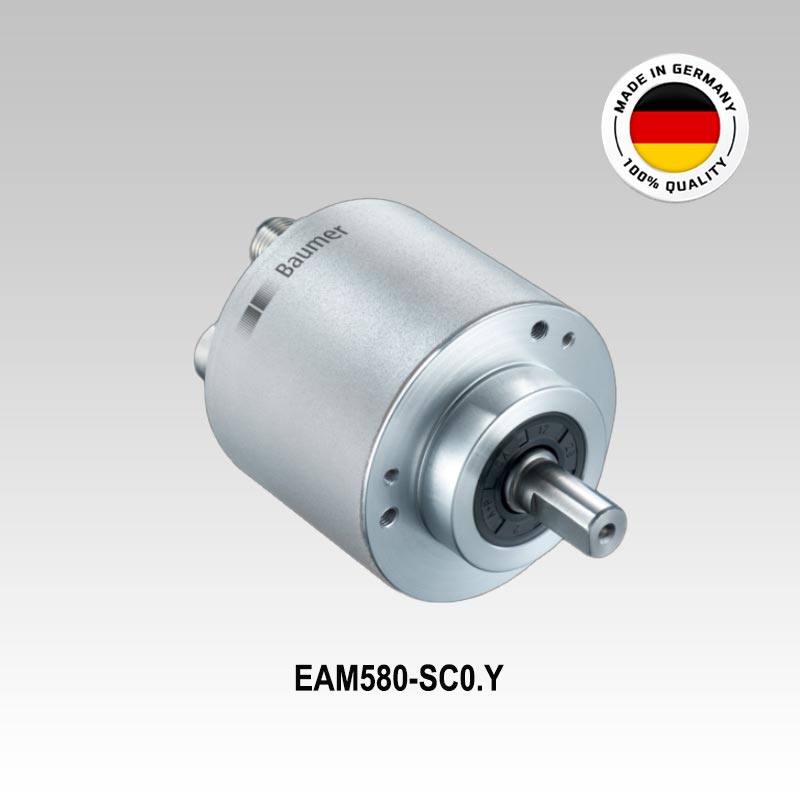

EAM580-SC0.7YPT.14160.A
Part No: EAM580-SC0.7YPT.14160.A

SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: PROFINET IO; Absolute Resolution: 14-Bit ST+16-Bit MT; Without Incremental Output; Connection: Flange Connector Axial 2xM12 4-Pin Female contacts CW, 1xM12 4-Pin Male contacts CCW; IP 67

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request

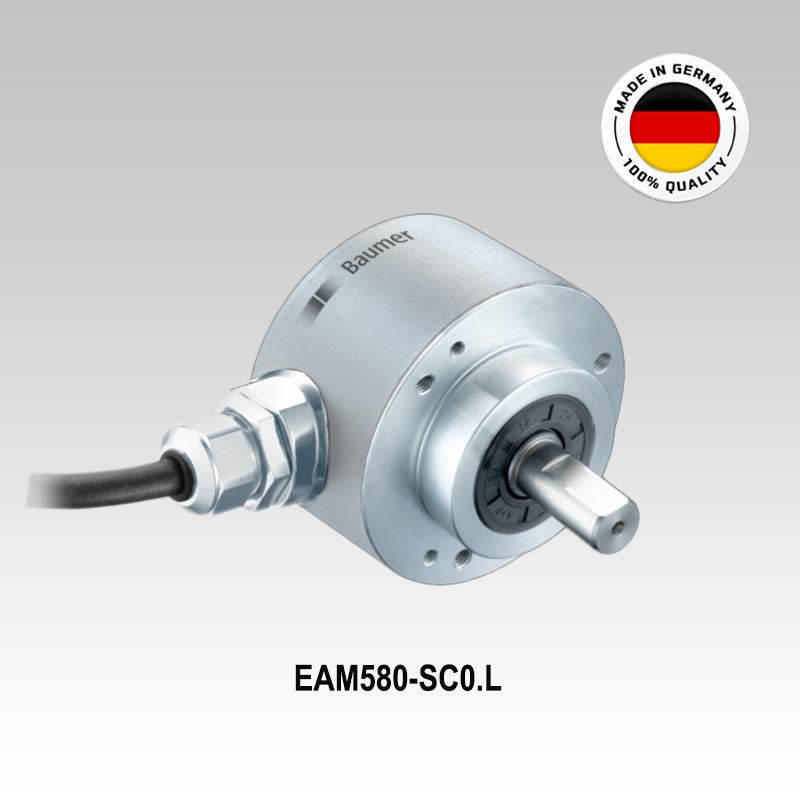

EAM580-SC0.5LC6.14180.A
Part No: EAM580-SC0.5LC6.14180.A

SingleTurn/MultiTurn MAGRES Magnetic Absolute Encoder; Clamping Flange mounting; Solid Shaft Dia. 10h6 x L:20mm; Supply Voltage: 10 to 30 Vdc; Interface: CANopen® (DS 406); Absolute Resolution: 14-Bit ST+18-Bit MT; Without Incremental Output; Connection: 2-Meters prewired Cable, Radial outlet; IP 65

Data Sheet 1
Packaging: 1
Minimum: 1
Multiples of: 1
Quantity:
Price on Request

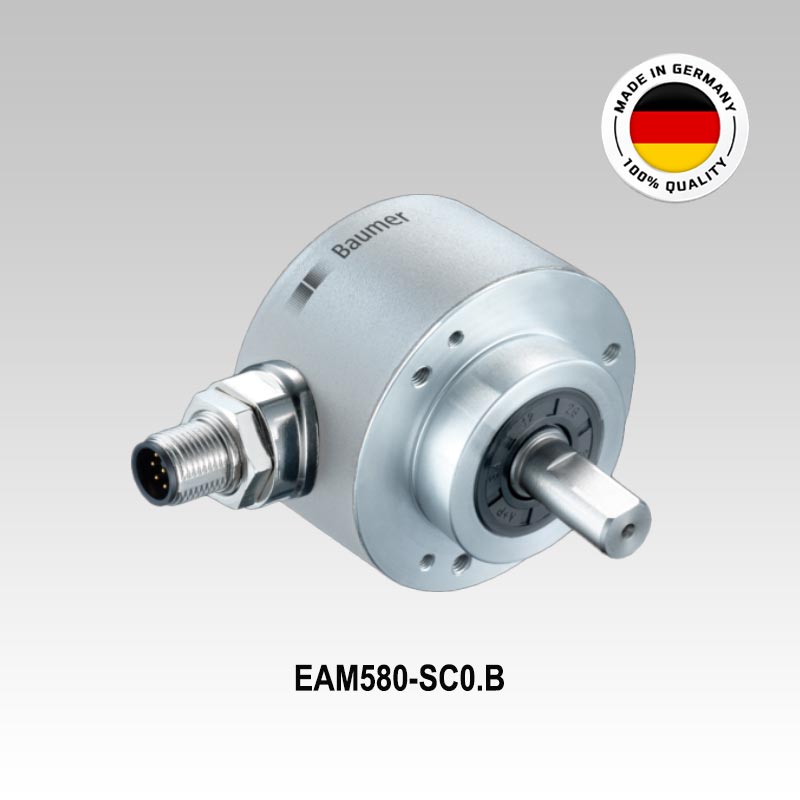

EAM580-SC0.7B4G.14120.A
