6003305.4A

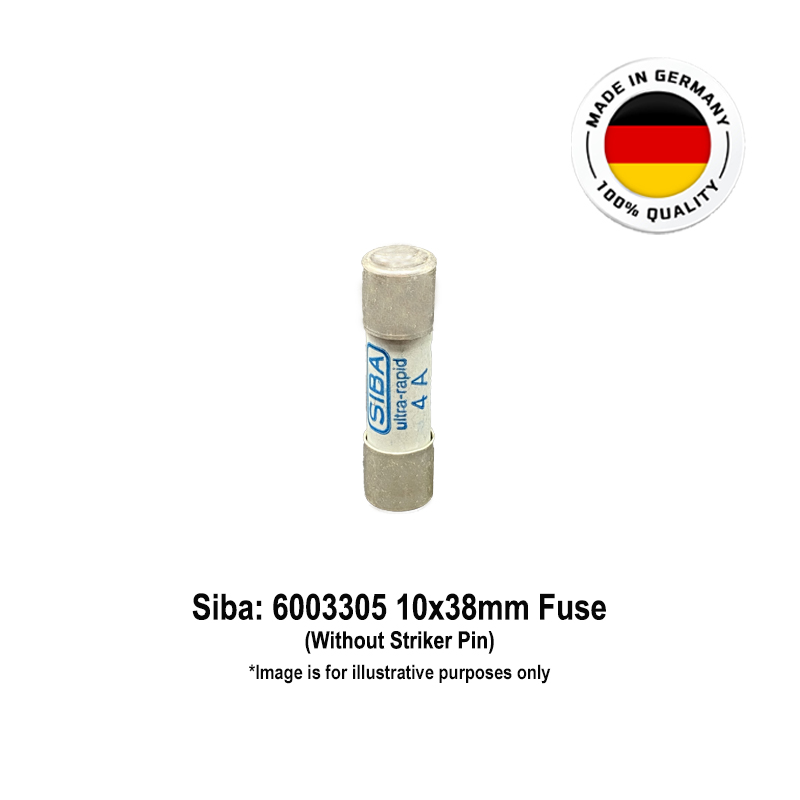

Siba Cylindrical Ultra Rapid Semiconductor Protection Fuses: 4 Amps, 600 Vac/300 kA, Operating Class: aR, Size: 10x38mm, without Indicator
6003305.4A
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- Confirming to IEC 60269-4, VDE 0636-40, UL248-13, CE
Optional
- Available Rated Current: 1, 2, 4, 5, 6, 8, 10, 12, 16, 20, 25, 30 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 6003305
Fuse Type: Cylindrical aR
Current Rating (A): 4 Amps
Voltage Rating (Vac): 600 Vac
AC Breaking Capacity (kA): 300 kA

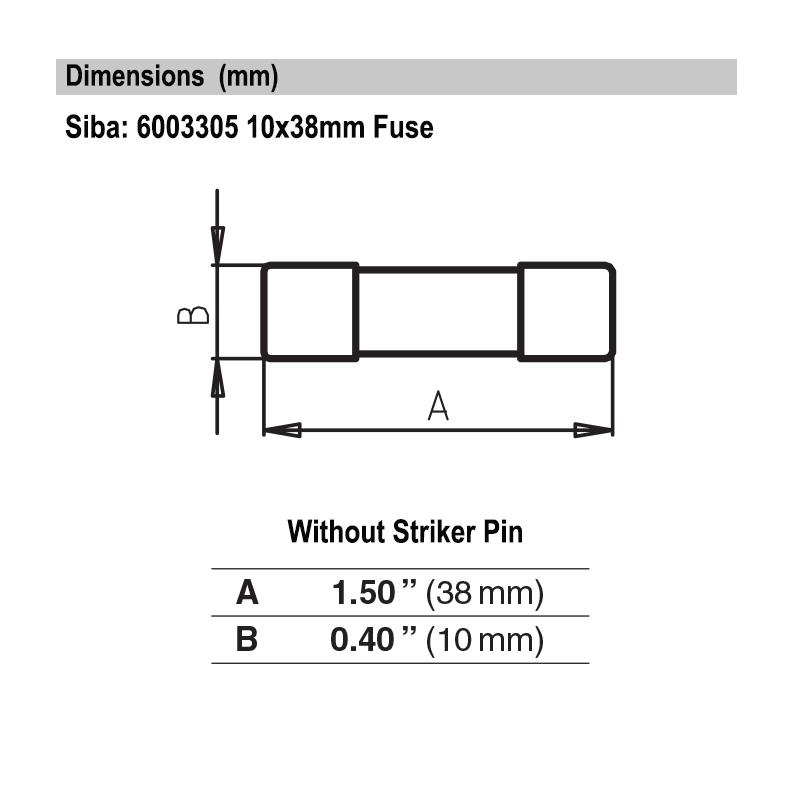

Size: 10x38mm
Pre-Arcing I2t Value A2s: 1.1
Total I2t Value A2s: 6
Power Loss (W): 1.1 W
Fuse Blown Indicator: NA
Standards: IEC 60269-4, VDE 0636-40, UL248-13, CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
