5019106.110A
Siba Cylindrical Ultra Rapid Semiconductor Protection DC Fuses: 110 Amps, 660 VDC, 30 kA, Operating Class: gR, Size: 27x60mm, with Striker Pin
5019106.110A
Product Salient Features:
- Class gR Semiconductor Protection DC Fuses
- Confirming to DIN EN 60269-4, IEC 60269-4, VDE 0636-4, CE
Optional
- Available Rated Current: 8, 10, 12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 110, 125, 160 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 5019106
Fuse Type: Cylindrical gR
Current Rating (A): 110 Amps
Voltage Rating (Vdc): 660 Vdc
DC Breaking Capacity (kA): 30 kA

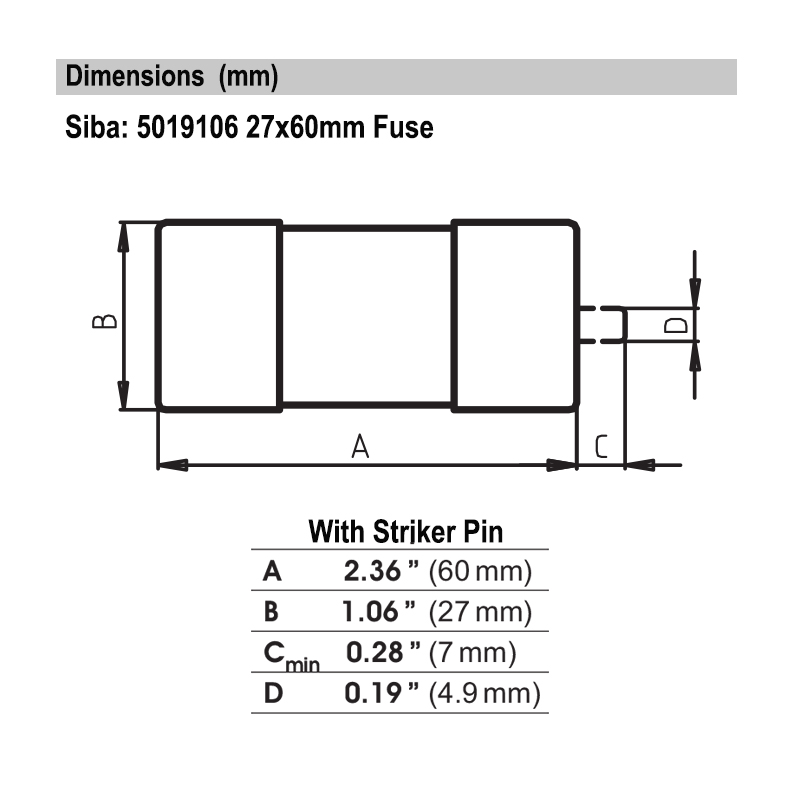

Size: 27x60mm
Pre-Arcing I2t Value A2s: 4600
Total I2t Value A2s: 23000
Power Loss (W): 14.2 W
Fuse Blown Indicator: With Striker Pin
Standards: DIN EN 60269-4, IEC 60269-4, VDE 0636-4, CE
Packaging Quantity (Pcs.): 10
Special Notes
"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
