2047720.10A

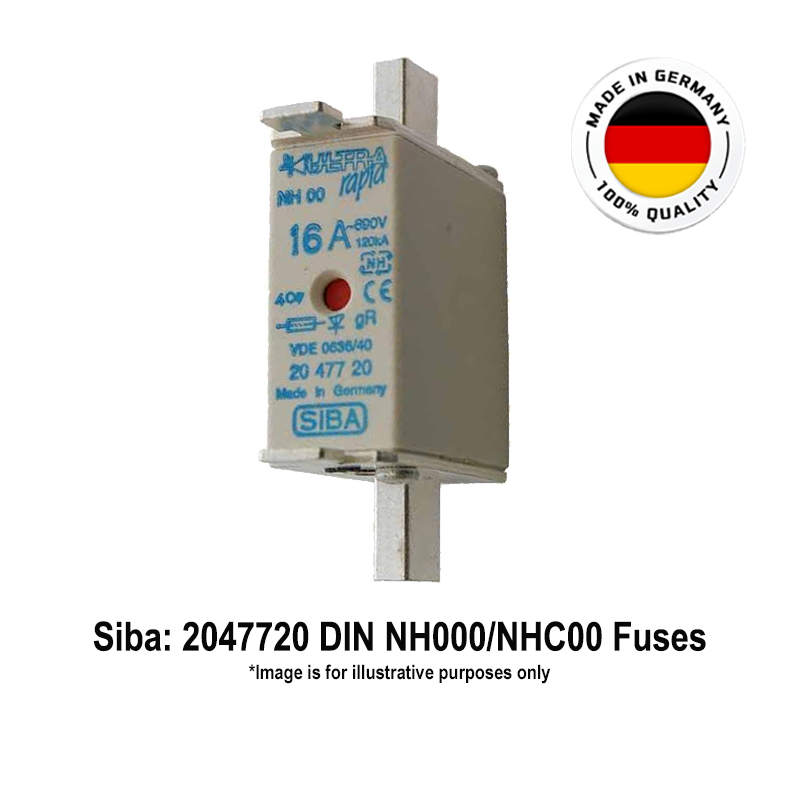

Siba DIN Knife Blade Semiconductor Protection Fuses with Dual Indicator: 10 Amps, 690 Vac/100 kA, Operating Class: gR, Size: DIN000/NH00C

Manufacturer: Siba
Country of Origin : Germany
Technical Datasheet:
Packaging Quantity: 3
Minimum Order Quantity: 3
Order in Multiples of Quantity: 3
Required Quantity:
Price on Request

Product Salient Features:

  • Class gR Semiconductor Protection Fuses
  • Confirming to DIN 43620/1, DIN VDE 0636-40, CE
  • All Fuses have Dual blown fuse indicator

Optional

  • Available Rated Current: 10, 16, 20, 25, 32, 40, 50 Amps
  • Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 2047720
Fuse Type: Ultra Rapid Knife Blade
Operating Class: gR
Current Rating (A): 10 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 100 kA

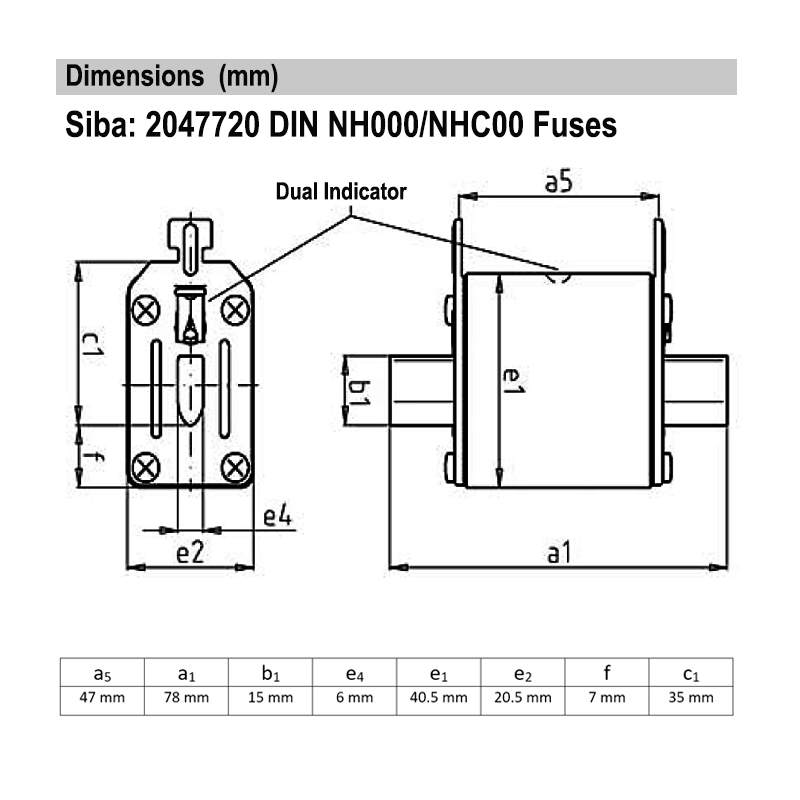

Size: DIN000/NH00C
Pre-Arcing I2t Value A2s: 2.5
Total I2t Value A2s: 18
Power Loss (W): 2.5 W
Fuse Blown Indicator: Dual
Standards: DIN 43620/1/DIN VDE 0636-40/CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 110
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
