2040704.500A

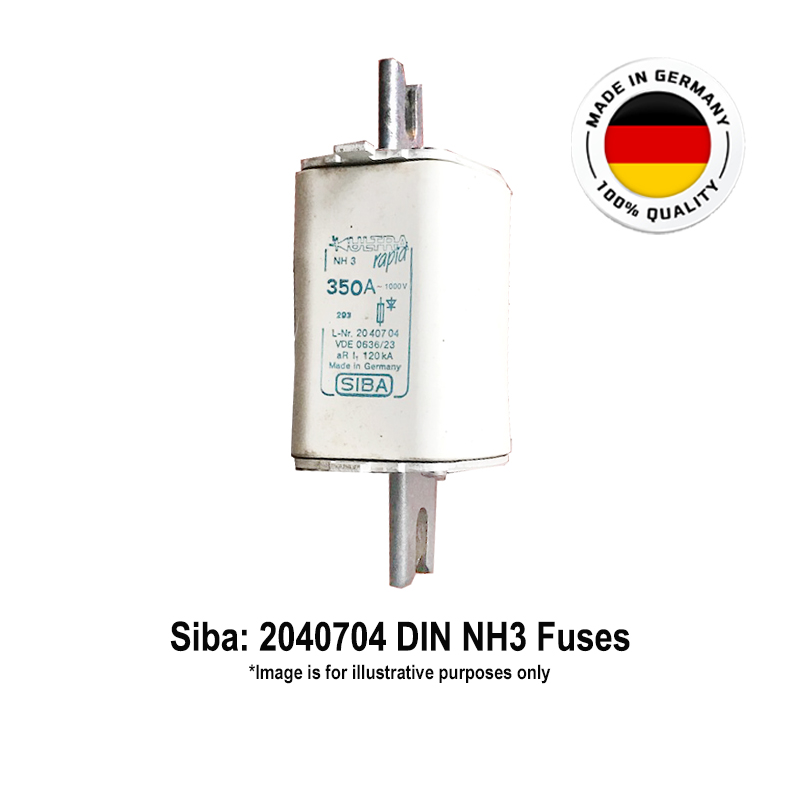

Siba DIN Knife Blade Semiconductor Protection Fuses with Top Indicator: 500 Amps, 1000 Vac/100 kA, Operating Class: aR, Size: DIN3/NH3-127mm fixing center
2040704.500A
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- Confirming to DIN 43620/1, IEC 60269-4, DIN VDE 0636-40, CE
- All Fuses have top blown fuse indicator
Optional
- Available Rated Current: 100, 125, 160, 200, 250, 315, 355, 400, 450, 500 Amps
- Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 2040704
Fuse Type: Ultra Rapid Knife Blade
Current Rating (A): 500 Amps
Voltage Rating (Vac): 1000 Vac
AC Breaking Capacity (kA): 100 kA
Size: DIN3/NH3-127mm F/c
Pre-Arcing I2t Value A2s: 125000
Total I2t Value A2s: 370000
Power Loss (W): 87.0 W
Fuse Blown Indicator: Top
Standards: DIN 43620/1/IEC 60269-4/DIN VDE 0636-40/CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 1100
Special Notes

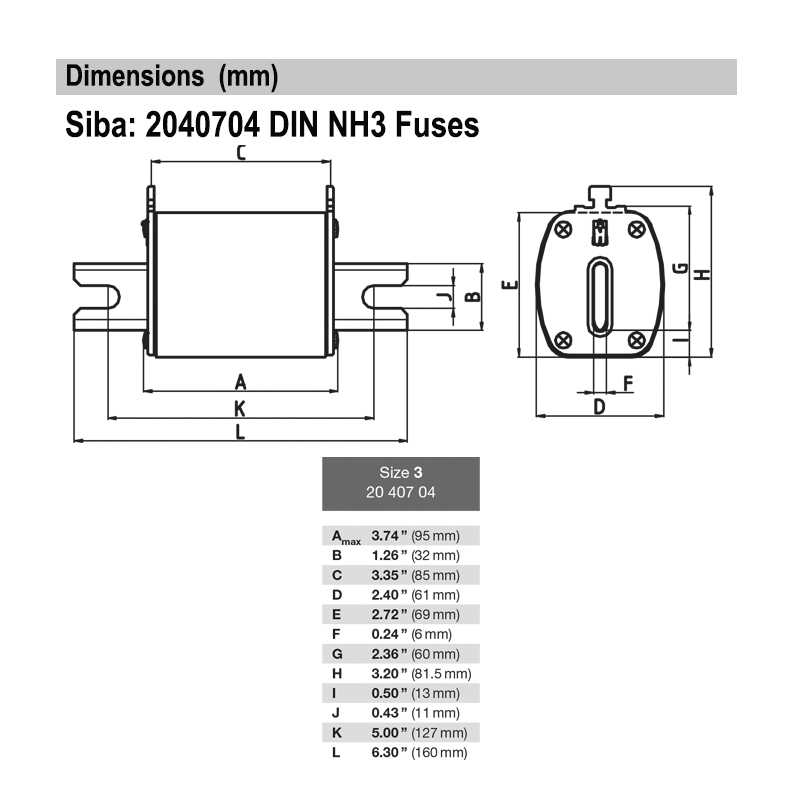

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
