2021220.160A

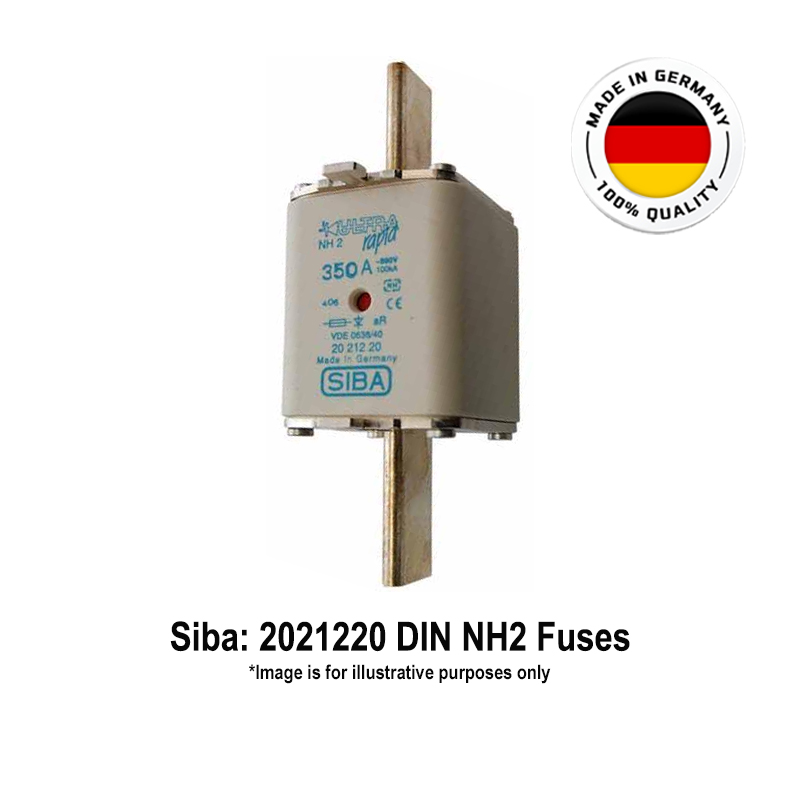

Siba DIN Knife Blade Semiconductor Protection Fuses with Dual Indicator: 160 Amps, 690 Vac/100 kA, Operating Class: aR, Size: DIN2/NH2
2021220.160A
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- Confirming to DIN 43620/1, IEC 60269-4, DIN VDE 0636-40, CE
- All Fuses have Dual blown fuse indicator
Optional
- Available Rated Current: 160, 200, 250, 315, 350, 400, 450 Amps
- Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 2021220
Fuse Type: Ultra Rapid Knife Blade
Current Rating (A): 160 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 100 kA
Size: DIN2/NH2
Pre-Arcing I2t Value A2s: 1900
Total I2t Value A2s: 14000
Power Loss (W): 42.0 W
Fuse Blown Indicator: Dual
Standards: DIN 43620/1/IEC 60269-4/DIN VDE 0636-40/CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 370
Special Notes

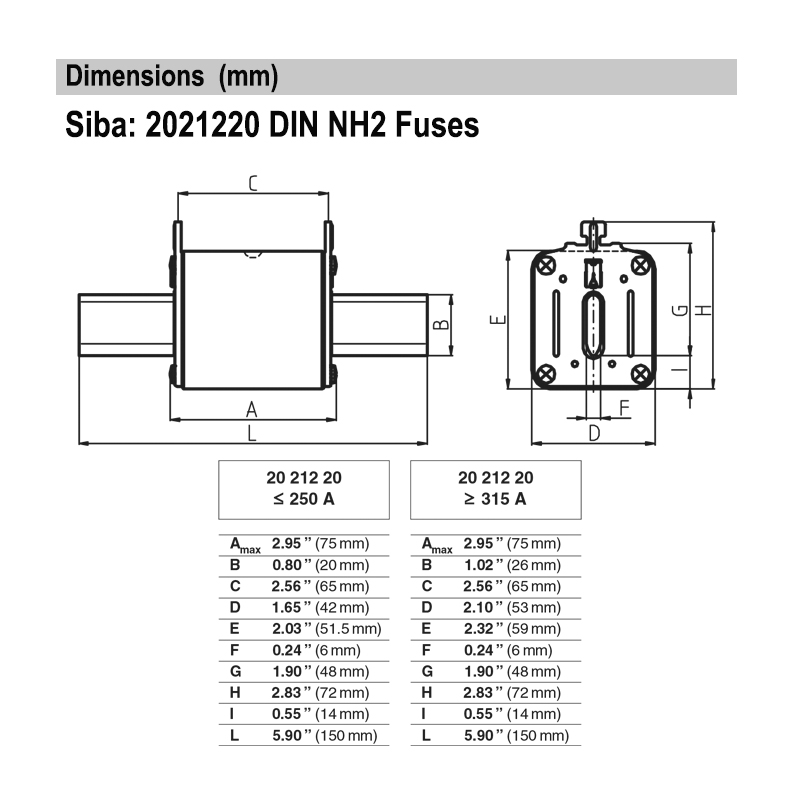

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
