2000513.630A

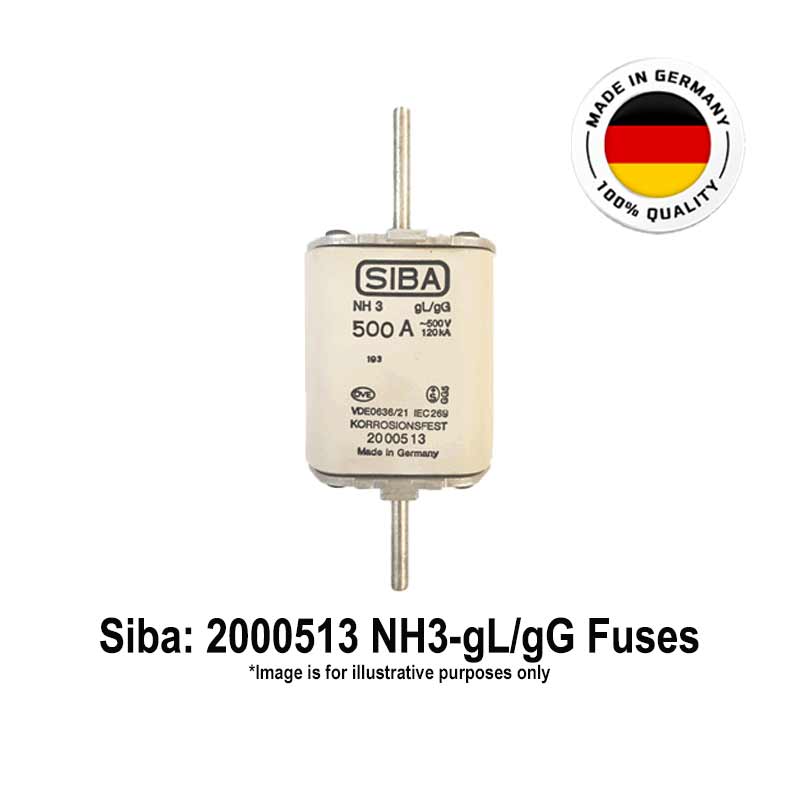

Siba DIN NH gL-gG HRC Fuses with Dual Indicator: 630 Amps, 500 Vac/120 kA, Operating Class: gL/Gg, Size: DIN3/NH3
2000513.630A
Product Salient Features:
- Class gL-gG DIN NH HRC Fuses
- Confirming to EN/IEC60269-1-2, DIN 43620, DIN VDE 0636 Part 201 / 2011, CE
- All Fuses have Dual blown fuse indicator
Optional
- Available Rated Current: 315, 355, 400, 500, 630 Amps
- Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: Siba
Series: 2000513
Fuse Type: NH gL/gG HRC Fuses
Current Rating (A): 630 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 120 kA
Size: DIN3/NH3
Pre-Arcing I2t Value A2s: 1950000
Total I2t Value A2s: 4840000
Power Loss (W): 46.0 W
Fuse Blown Indicator: Dual
Standards: IEC/EN60269-1-2, DIN 43620, VDE 0636, CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 880
Special Notes

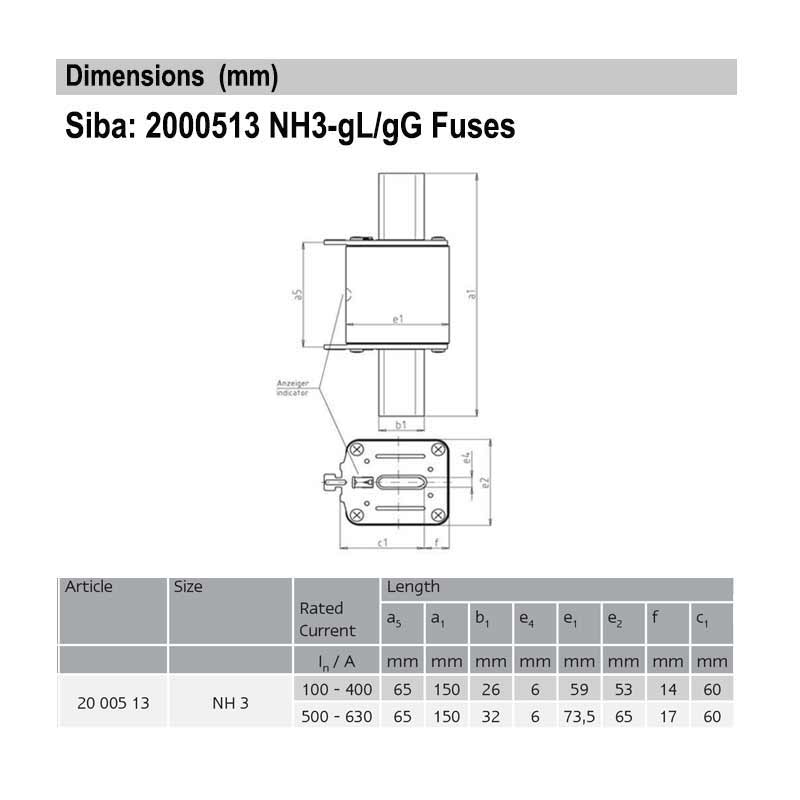

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
