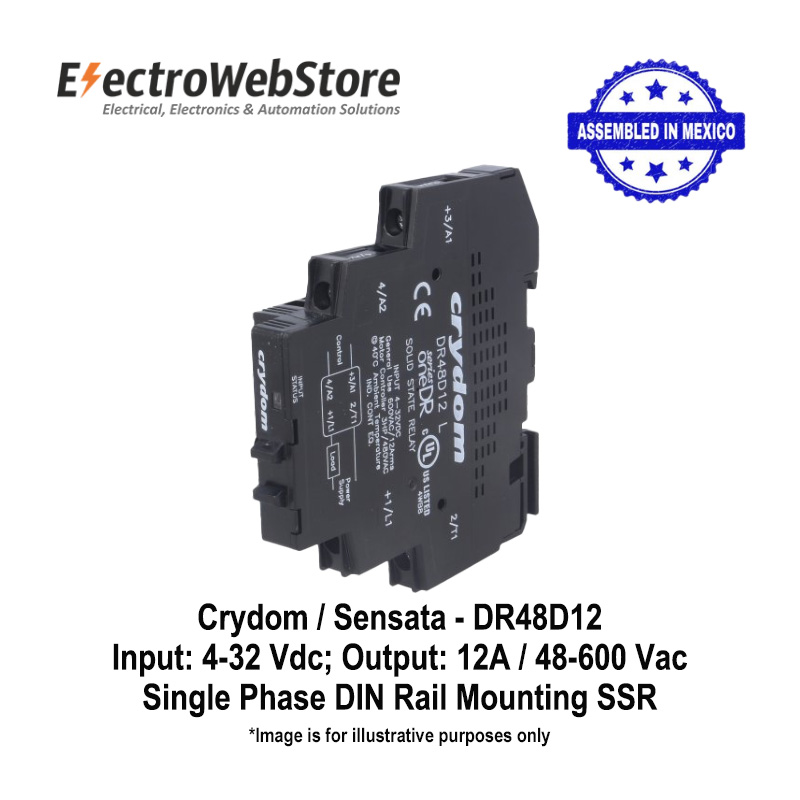

DR48D12
Single Phase Zero Voltage Turn-on DC-AC SSR with DIN Rail mounting: Input: 4-32 Vdc; Output: 12A / 48-600 Vac, with Input Status LED Indicator.
DR48D12
Product Features:
- Fits standard 35mm DIN Rail
- AC or DC control
- UL and cUL Listed, HP Rated, CE & RoHS Compliant
- UL 508 Endurance Rating for Enhanced Reliability
- UL Class I and II, Division 2, for Hazardous Locations
Optional
- Available Ratings: 3A, 6A, 12A @ 48-600 Vac
- Operating Voltage: 24-280 Vac
- Instantaneous Turn-on Output
- ATEX II 3G Ex nA IIC T4 Gc approved
Technical Data
Manufacturer: Crydom / Sensata
Series: DR
Rated Load Current: 12 Amps
Transient Overvoltage: 1200 Vpk
Control Voltage Range: 4-32 Vdc
Switching Type: Zero Voltage Turn-On
Overvoltage Protection: Not Included
Input Status LED: Included
Termination: Screw
Weight: 90 g
Special Notes

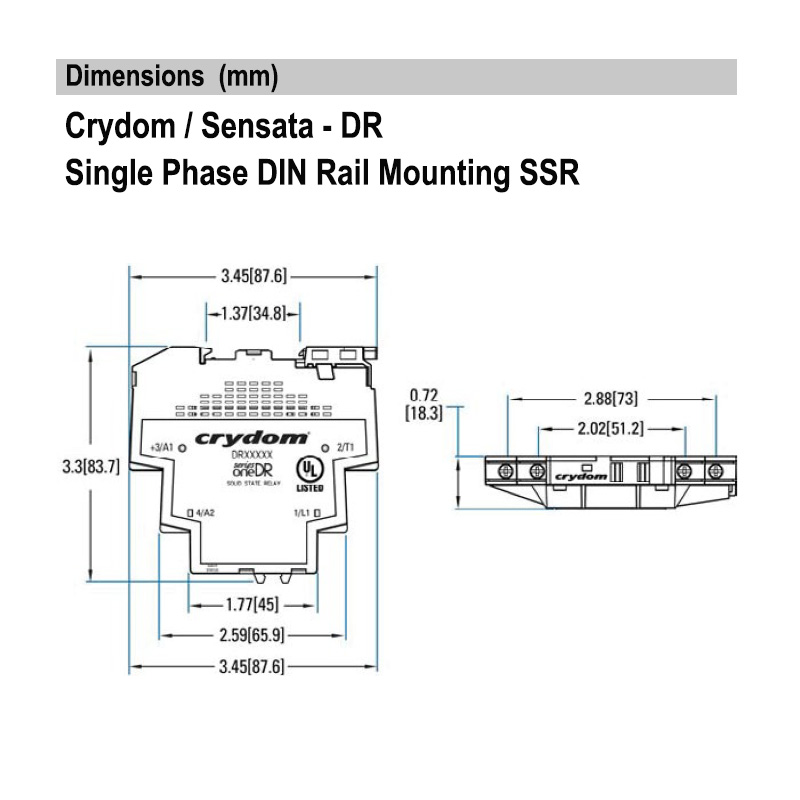

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
