CKRD4820

Single Phase Zero Voltage Turn-on DC-AC SSR with DIN Rail mounting integrated Heat-Sink: Input: 4-32 Vdc; Output: 20A / 48-530 Vac, without internal Over-Voltage Protection; with Input Status LED Indicator.

Manufacturer: Crydom / Sensata
Country of Origin : Mexico
Technical Datasheet:
Packaging Quantity: 1
Minimum Order Quantity: 5
Order in Multiples of Quantity: 5
Required Quantity:
Price on Request

Product Features:

  • Slim 22.5mm (width) package
  • SCR output for heavy industrial loads
  • AC or DC control
  • Zero Voltage Turn-on Output

Optional

  • Available Ratings: 10A, 20A, 30A @ 48-530 Vac
  • Instantaneous Turn-on Output
Technical Data
Manufacturer: Crydom / Sensata
Series: CKR48
Rated Load Current: 20 Amps
Operating Voltage: 48-530 Vac
Transient Overvoltage: 1200 Vpk
Control Voltage Range: 4-32 Vdc
Switching Type: Zero Voltage Turn-On
Overvoltage Protection: Not Included
Input Status LED: Included
Termination: Box Clamp Type
Ambient Operating Temperature Range: From -40 Deg. C to +80 Deg. C
Weight: 280 g
Special Notes

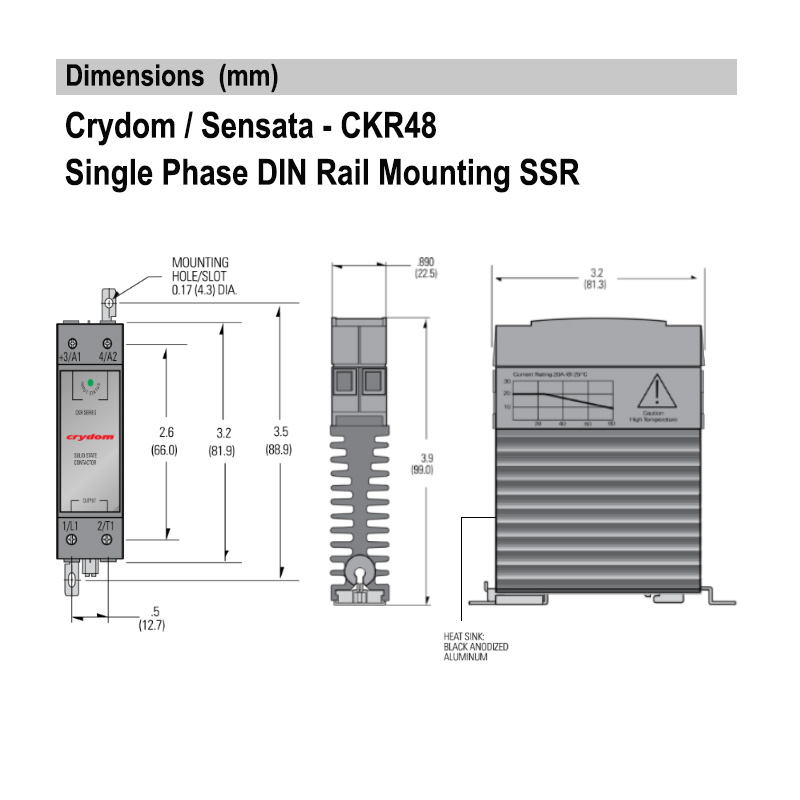

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
