HP15NH3LPV350BI E1057222

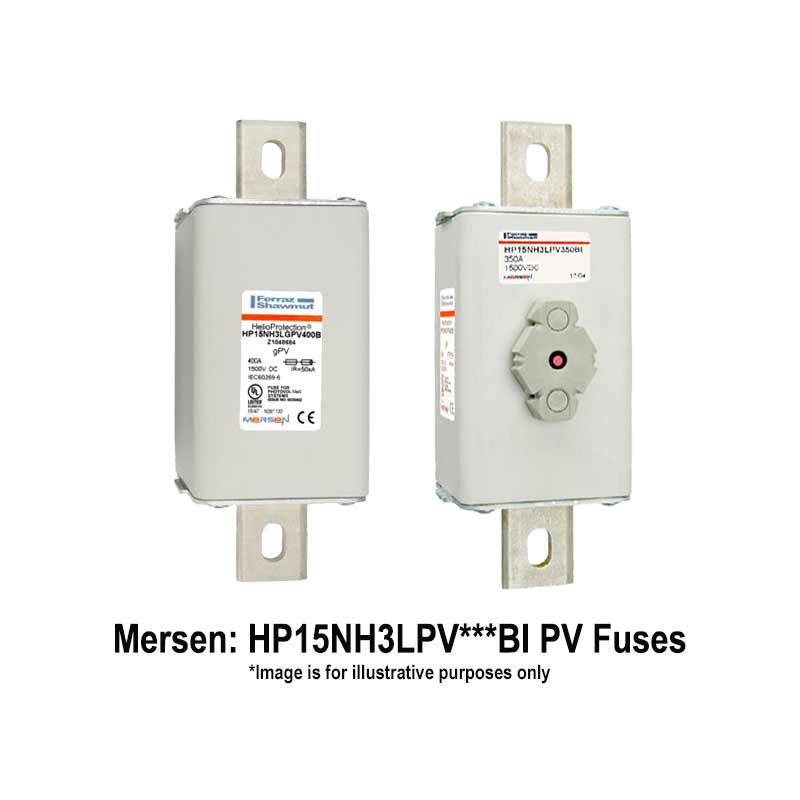

Mersen Helio Protection NH-Solar/PV-Fuses: 350 Amps, 1500 Vdc/50kA, Operating Class: gPV, Size: 3L with Striker/Center Indicator.

Manufacturer: Mersen
Technical Datasheet:
PDF-Icon HP15NH3LPV350BI E1057222
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Low fault current interrupting capability
  • Temperature cycle withstand capability
  • High efficiency with low power losses
  • IEC 60269-6, UL 248-19 (E358319), RoHS compliance, CE
Technical Data
Manufacturer: Mersen
Series: HP15NH3LPV***BI
Fuse Type: NH gPV
Current Rating (A): 350 Amps
Voltage Rating (Vdc): 1500 Vdc
DC Breaking Capacity (kA): 50 kA
Size: NH3L
Power Loss (W): 63.0 W
Fuse Blown Indicator: Center Striker
Standards: IEC 60269-6, UL 248-19 (E358319), RoHS compliance, CE
Packaging Quantity (Pcs.): 1
Weight (Grams): 1660
Special Notes

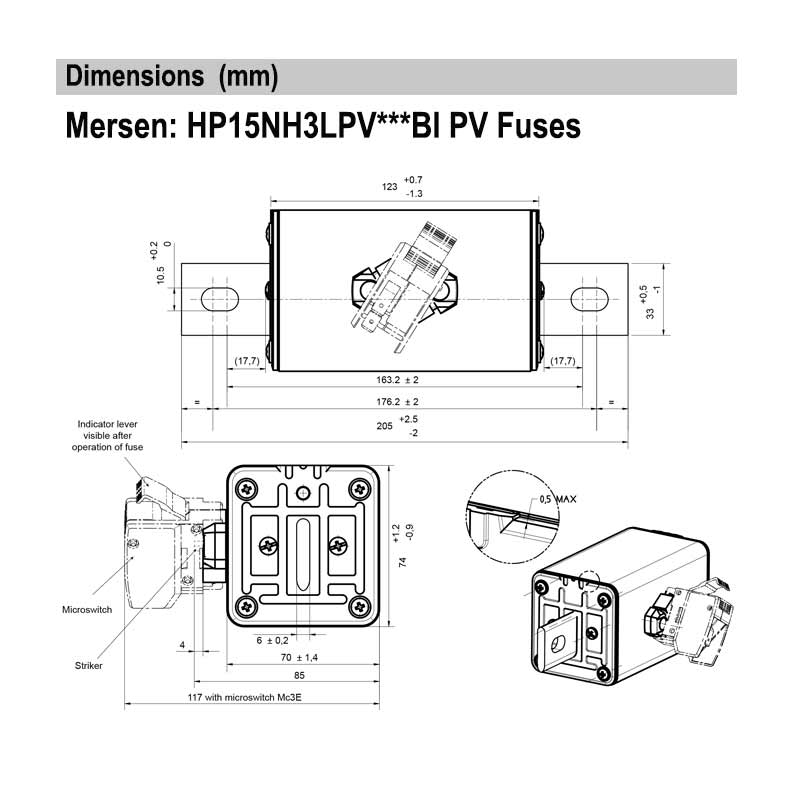

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
