SE-600-12

SE-600-12

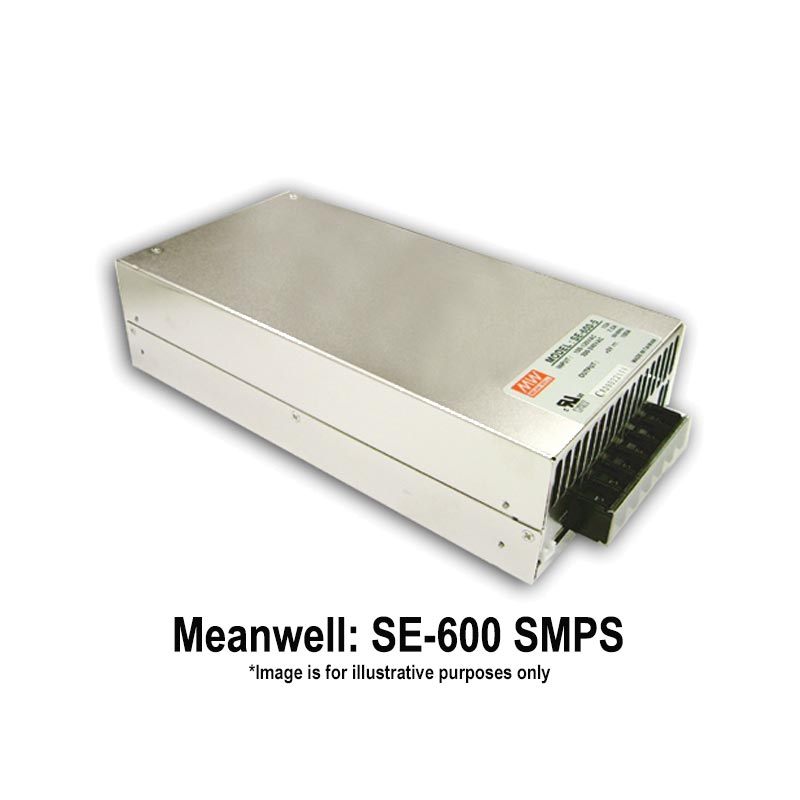

Meanwell Single Phase Panel Mounting 600 Watts SMPS, Input: 90-132 Vac/180-264 Vac by Selector Switch; 254-370 Vdc; Output: 12 Vdc/0 - 50 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 83.0%; LxWxH: 247x127x63.5mm

Manufacturer: Meanwell

Technical Datasheet:

SE-600-12

Datasheet 2

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

AC input active surge current limiting
AC input range selected by Switch
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Forced air cooling by built-in DC Fan
Built-in remote sense function
UL Approved
Warranty: 1-Year from date of purchase

Technical Data

Manufacturer: Meanwell

Series: SE

Wattage: 600 W

Output Voltage (DC): 12 Vdc

Output Current (A): 0 - 50.0 A

Product Type: Single Phase/Single Output SMPS

Mounting Type: Enclosed Panel Mounting

Input Voltage (AC): 90-132 Vac/180-264 Vac

Input Voltage (DC): 254-370 Vdc

Tolerance: +/-1%

Ripple & Noise (max.): 150mV

Efficiency (Typ.): 83.00%

Protections: Short Circuit, Overload, Over Voltage, Over Temperature

Cooling by: DC Fan

Safety Standards: CB IEC62368-1, UL60950-1,UL62368-1, EAC TP TC 004, BSMI CNS14336-1, KC K60950-1(for 12V,24V only) approved

EMC Emission: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11

Dimensions WxHxD (mm): 247x127x63.5mm

Weight/Piece (gms): 2100

Warranty: 1-Year

Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.

Associated Products

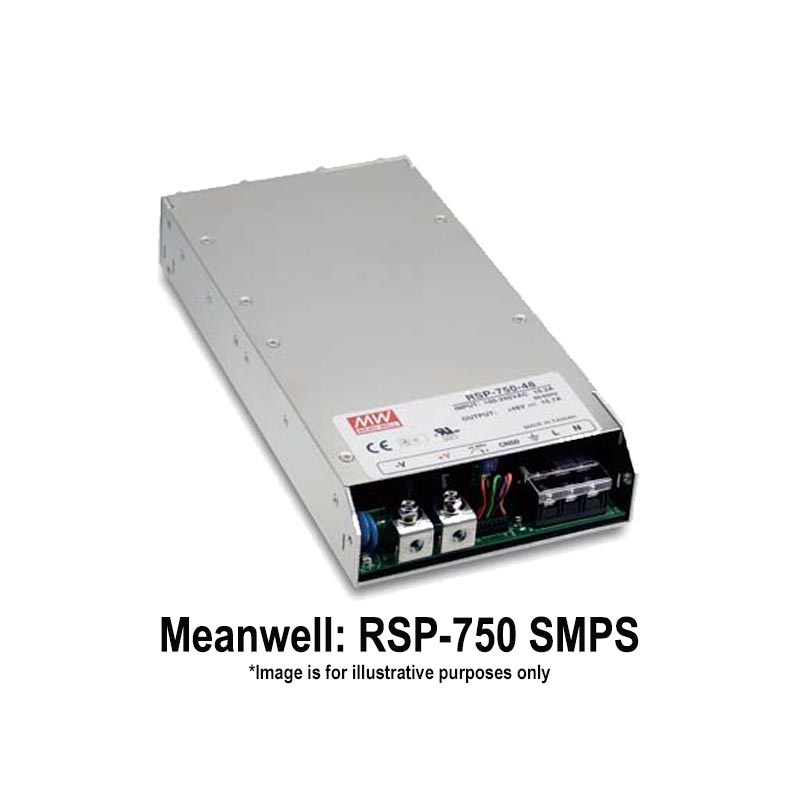

Part No: RSP-750-12
