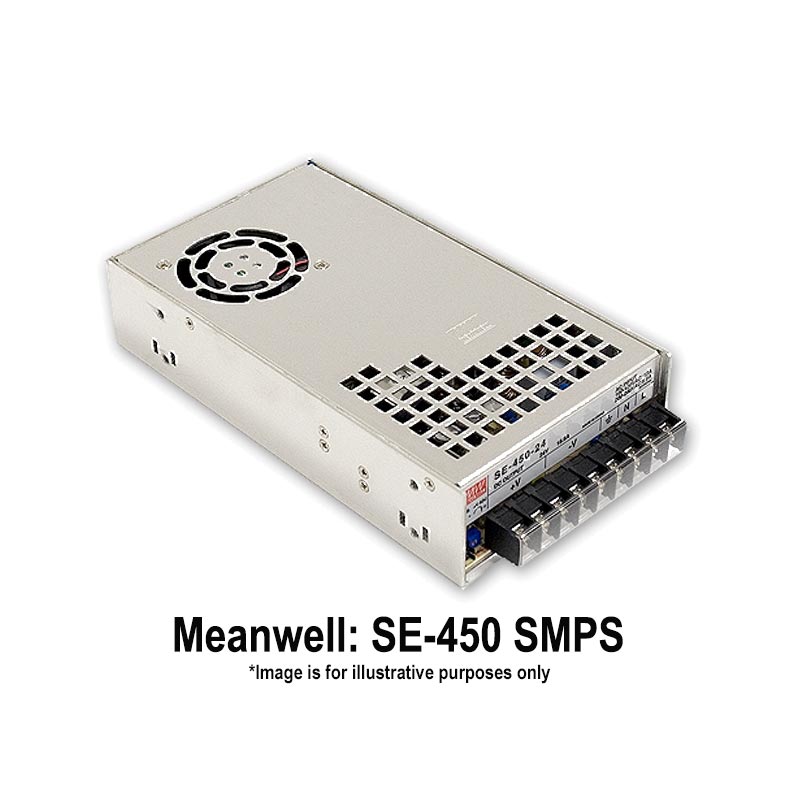

SE-450-48

Meanwell Single Phase Panel Mounting 450 Watts SMPS, Input: 90-132 Vac/180-264 Vac by Selector Switch; 254-370 Vdc; Output: 48 Vdc/0 - 9.4 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 88.0%; LxWxH: 225x124x50mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon SE-450-48
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • AC input selectable by Switch
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Forced air cooling by built-in DC Fan
  • Built-in remote sense function
  • Withstand 5G vibration test
  • 100% full load burn-in test
  • LED indicator for Power ON
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: SE
Wattage: 450 W
Output Voltage (DC): 48 Vdc
Output Current (A): 0 - 9.4 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: Enclosed Panel Mounting
Input Voltage (AC): 90-132 Vac/180-264 Vac
Input Voltage (DC): 254-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 200mV
Efficiency (Typ.): 88.00%
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: DC Fan
Indication: Power ON LED
Safety Standards: UL62368-1, EAC TP TC 004, BSMI CNS14336-1 approved
EMC Emission: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimensions WxHxD (mm): 225x124x50mm
Weight/Piece (gms): 1250
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
