RSP-1500-12

RSP-1500-12

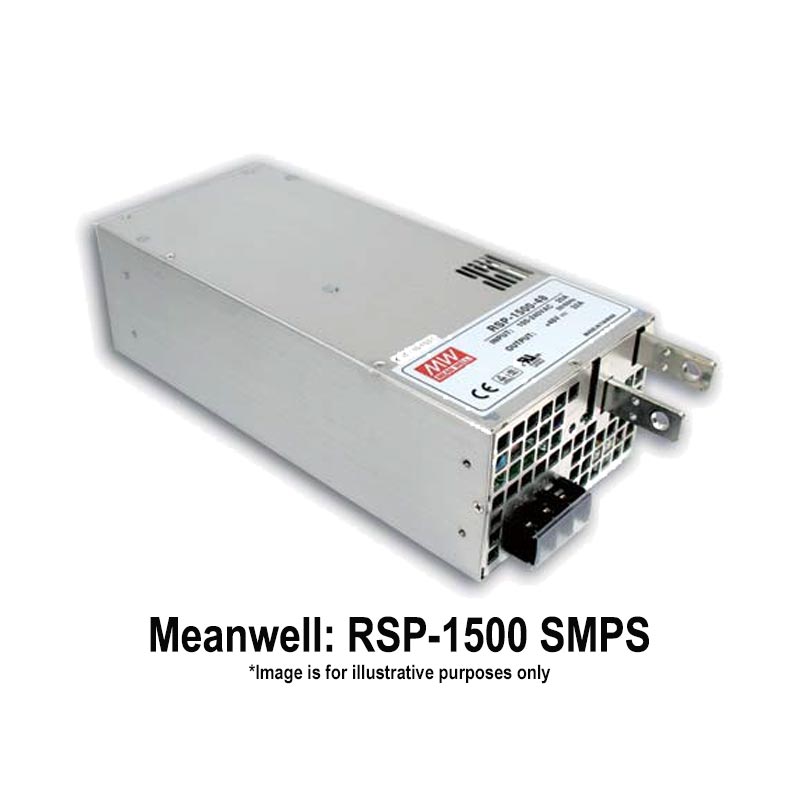

Meanwell Single Phase Panel Mounting 1500 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 12 Vdc/0 - 125 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 87.0%; LxWxH: 278x127x83.5mm

Manufacturer: Meanwell

Technical Datasheet:

RSP-1500-12

Datasheet 2

Packaging Quantity: 1

Minimum Order Quantity: 1

Order in Multiples of Quantity: 1

Required Quantity:

Qty

Price on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Salient Features:

Universal AC input / Full range
Built-in active PFC function
High efficiency up to 91%
Protections: Short Circuit / Overload / Over Voltage / Over Temperature
Forced air cooling by built-in DC Fan
Built-in remote ON-OFF Control / Remote Sense / Auxiliary Power / DC OK Signal
Warranty: 1-Year from date of purchase

Technical Data

Manufacturer: Meanwell

Series: RSP

Wattage: 1500 W

Output Voltage (DC): 12 Vdc

Output Current (A): 0 - 125.0 A

Product Type: Single Phase/Single Output SMPS

Mounting Type: Enclosed Panel Mounting

Input Voltage (AC): 90-264 Vac

Input Voltage (DC): 127-370 Vdc

Tolerance: +/-1%

Ripple & Noise (max.): 150mV

Efficiency (Typ.): 87.00%

Protections: Short Circuit, Overload, Over Voltage, Over Temperature

Cooling by: DC Fan

Safety Standards: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN62368-1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved

EMC Emission: EN55022 class B for RSP-1500, EN61000-3-2,3; EN61000-4-2,3,4,5,6,8,11; EN61000-6-2

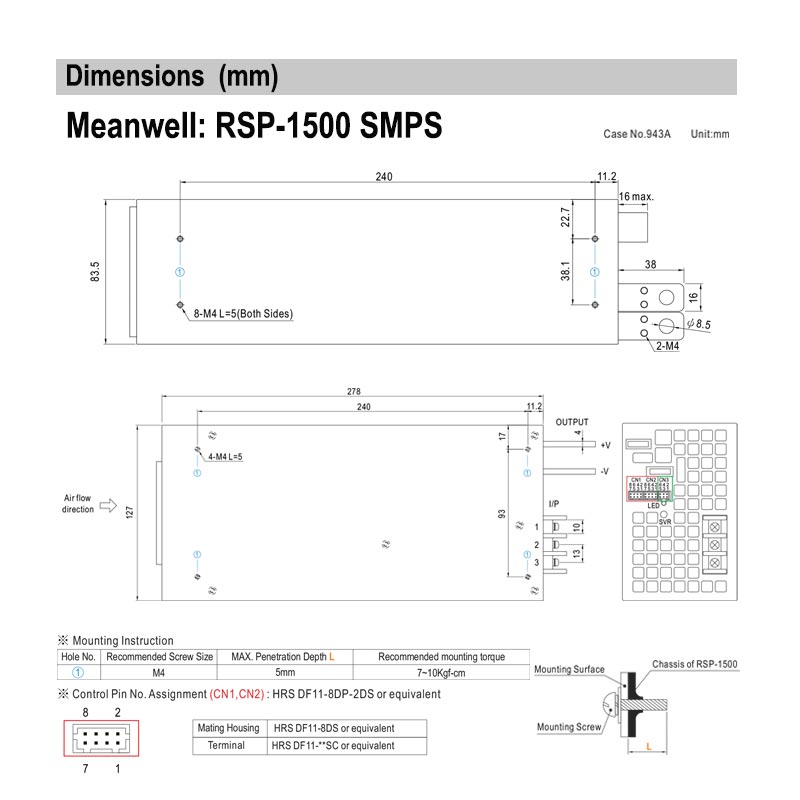

Dimensions WxHxD (mm): 278x127x83.5mm

Weight/Piece (gms): 3000

Warranty: 1-Year

Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
