RSP-1000-12

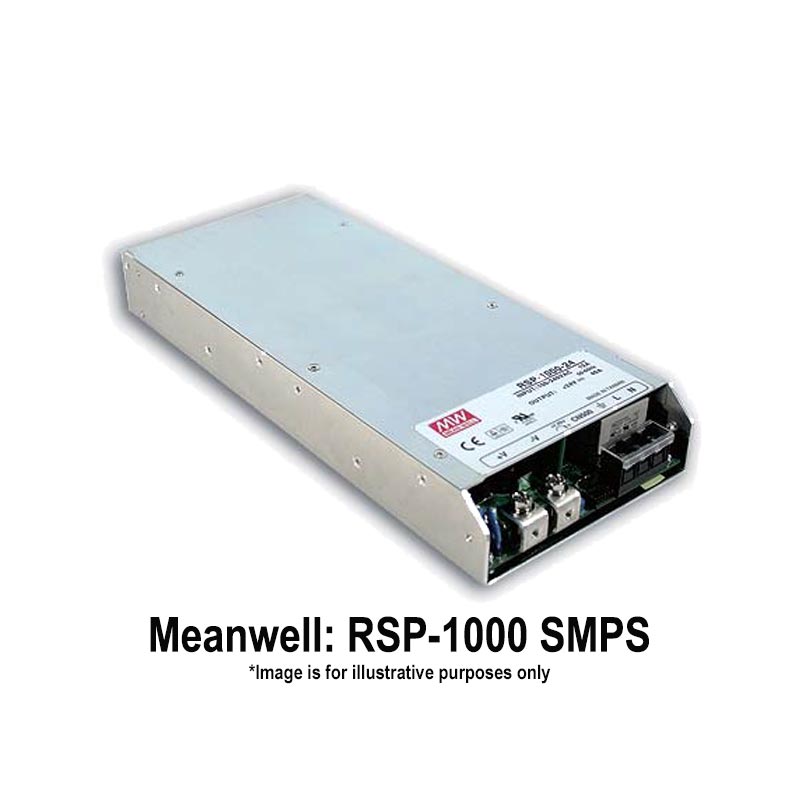

Meanwell Single Phase Panel Mounting 1000 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 12 Vdc/0 - 60 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 83%; LxWxH: 295x127x41mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon RSP-1000-12
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 1
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Forced air cooling by built-in DC Fan
  • Built-in remote ON-OFF Control / Remote Sense / Auxiliary Power / DC OK Signal
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: RSP
Wattage: 1000 W
Output Voltage (DC): 12 Vdc
Output Current (A): 0 - 60.0 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: Enclosed Panel Mounting
Input Voltage (AC): 90-264 Vac
Input Voltage (DC): 127-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 150mV
Efficiency (Typ.): 83.00%
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: DC Fan
Safety Standards: UL62368-1, CSA C22.2 No. 62368-1, TUV EN62368-1, CCC GB4943.1, BSMI CNS14336-1, AS/NZS62368.1, EAC TP TC 004 approved
EMC Emission: EN55022 class A for RSP-1000/1600/2000; EN61000-3-2,3; EN61000-4-2,3,4,5,6,8,11

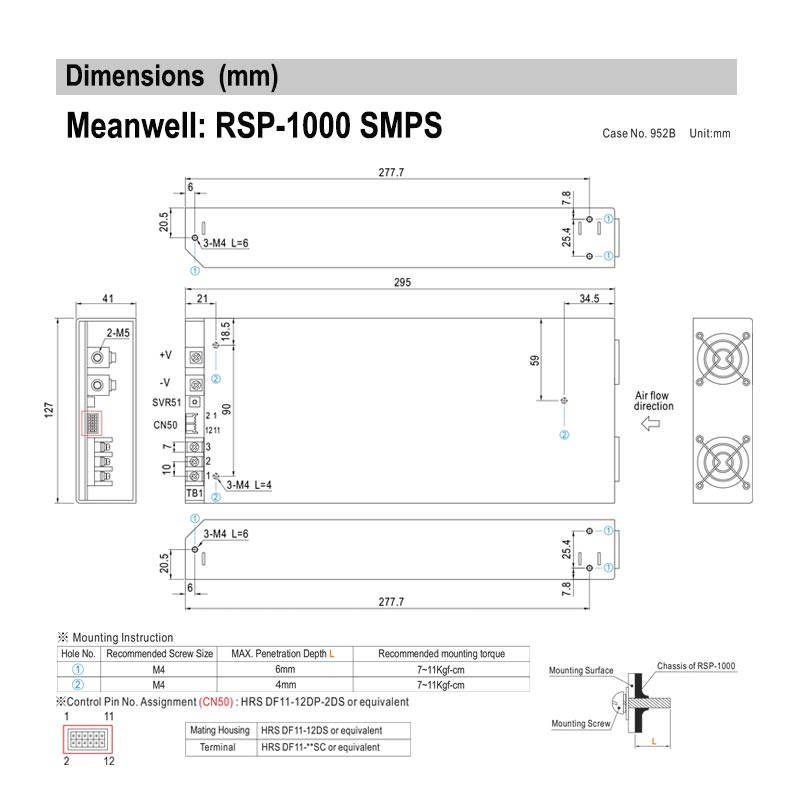

Dimensions WxHxD (mm): 295x127x41mm
Weight/Piece (gms): 1950
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
