RS-100-15

Meanwell Single Phase Panel Mounting 100 Watts SMPS, Input: 88-264 Vac/125-373 Vdc; Output: 15 Vdc/0 - 7.0 Amps; Tol.: +/-1%; R&N: 120 mV; Effi.: 82.0%; LxWxH: 159x97x38mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon RS-100-15
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
  • Withstand 5G vibration test
  • All using 105°C long life electrolytic capacitors
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: RS
Wattage: 100 W
Output Voltage (DC): 15 Vdc
Output Current (A): 0 - 7.0 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: Enclosed Panel Mounting
Input Voltage (AC): 88-264 Vac
Input Voltage (DC): 125-373 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 120mV
Efficiency (Typ.): 82.00%
Protections: Short Circuit, Overload, Over Voltage
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: UL62368-1, TUV EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

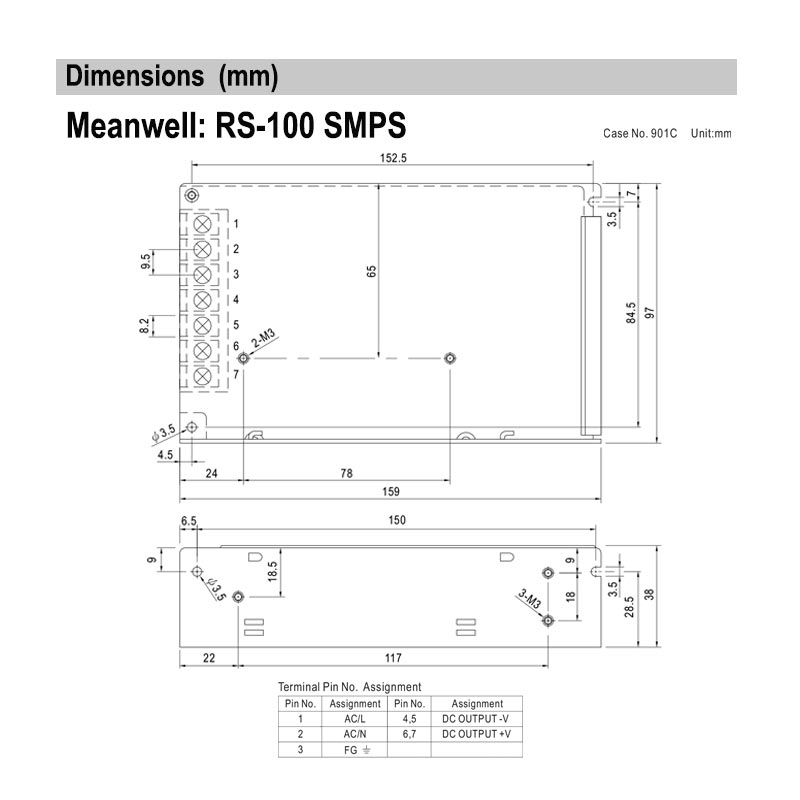

Dimensions WxHxD (mm): 159x97x38mm
Weight/Piece (gms): 600
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
