LRS-50-48

Meanwell Single Phase Panel Mounting 50 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 48 Vdc/0 - 1.1 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 90.0%; LxWxH: 99x82x30mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon LRS-50-48
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • No load power consumption <0.2W
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
  • Withstand 5G vibration test
  • Over voltage category III
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: LRS
Wattage: 50 W
Output Voltage (DC): 48 Vdc
Output Current (A): 0 - 1.1 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: Enclosed Panel Mounting
Input Voltage (AC): 85-264 Vac
Input Voltage (DC): 120-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 200mV
Efficiency (Typ.): 90.00%
Protections: Short Circuit, Overload, Over Voltage
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: UL62368-1, IEC/EN62368-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1 approved
EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020, KC KN32,KN35(for LRS-50-12/24 only)

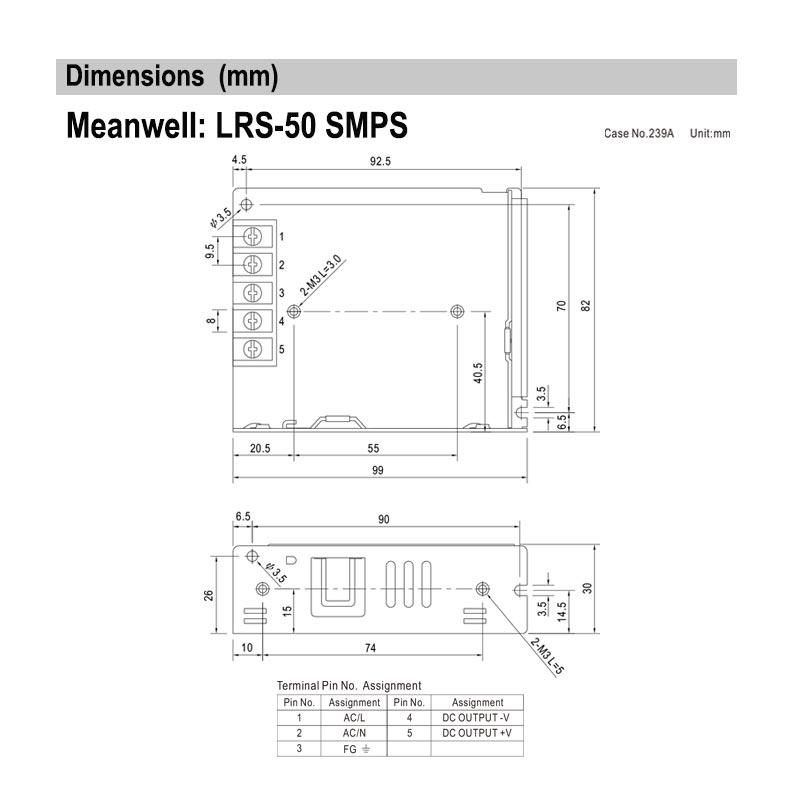

Dimensions WxHxD (mm): 99x82x30mm
Weight/Piece (gms): 230
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Associated Products

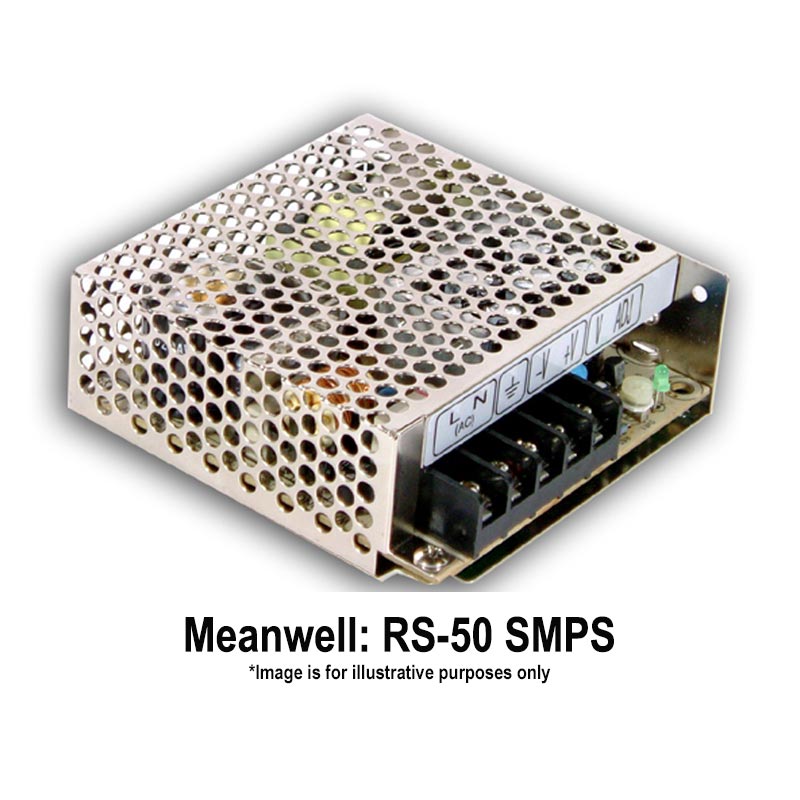

RS-50-48
Part No: RS-50-48

Meanwell Single Phase Panel Mounting 50 Watts SMPS, Input: 88-264 Vac/125-373 Vdc; Output: 48 Vdc/0 - 1.1 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 89.0%; LxWxH: 99x97x36mm

Data Sheet 1
Packaging: 1
Minimum: 2
Multiples of: 1
Quantity:
Price on Request
HDR-60-48
Part No: HDR-60-48

Meanwell Single Phase DIN Rail Mounting 60 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 48 Vdc/0 - 1.25 Amps; Tol.: +/-1%; R&N: 240 mV; Effi.: 91.0%; WxHxD: 52.5x90x54.5mm

Data Sheet 1
Packaging: 1
Minimum: 2
Multiples of: 1
Quantity:
Price on Request

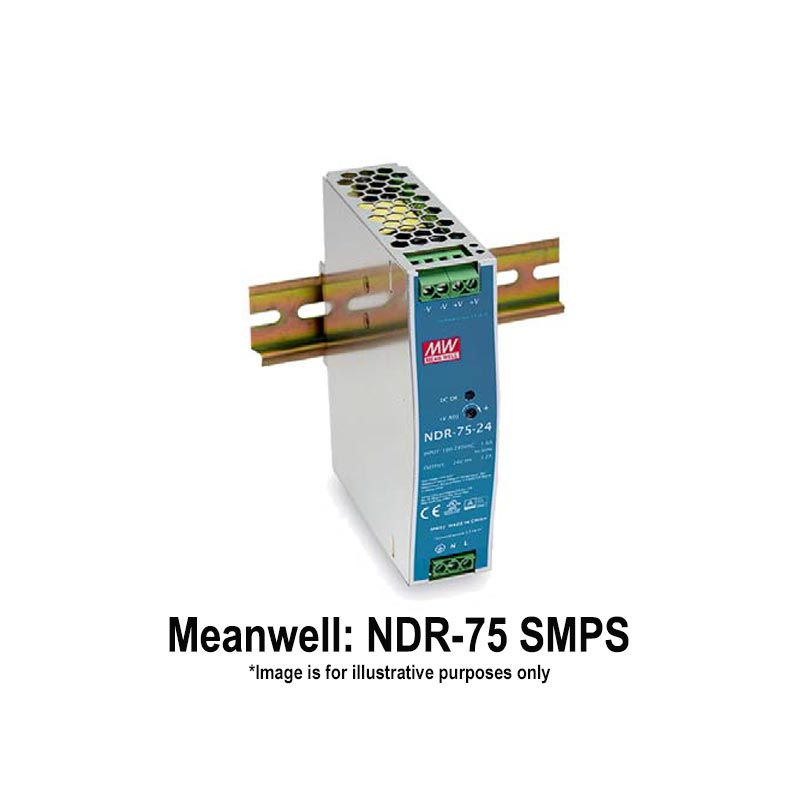

NDR-75-48
