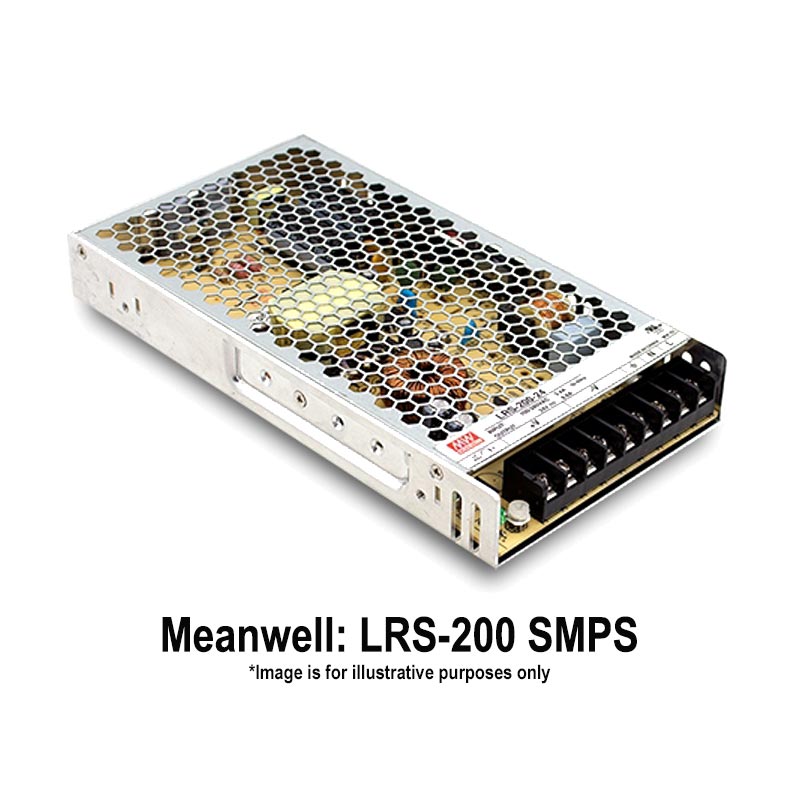

LRS-200-48

Meanwell Single Phase Panel Mounting 200 Watts SMPS, Input: 90-132Vac/180-264Vac by Selector Switch; 240-370Vdc (on 230Vac Switch); Output: 48 Vdc/0 - 4.4 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 90.0%; LxWxH: 215x115x30mm

Manufacturer: Meanwell
Technical Datasheet:
PDF-Icon LRS-200-48
PDF-Icon Datasheet 2
Packaging Quantity: 1
Minimum Order Quantity: 2
Order in Multiples of Quantity: 1
Required Quantity:
Price on Request

Product Salient Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • No load power consumption <0.75W
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase
Technical Data
Manufacturer: Meanwell
Series: LRS
Wattage: 200 W
Output Voltage (DC): 48 Vdc
Output Current (A): 0 - 4.4 A
Product Type: Single Phase/Single Output SMPS
Mounting Type: Enclosed Panel Mounting
Input Voltage (AC): 90-132 Vac/180-264 Vac
Input Voltage (DC): 240-370 Vdc
Tolerance: +/-1%
Ripple & Noise (max.): 200mV
Efficiency (Typ.): 90.00%
Protections: Short Circuit, Overload, Over Voltage, Over Temperature
Cooling by: Free Air Convection
Indication: Power ON LED
Safety Standards: IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, KC K60950-1(for LRS-200-12/24 only),BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved
EMC Emission: Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only)

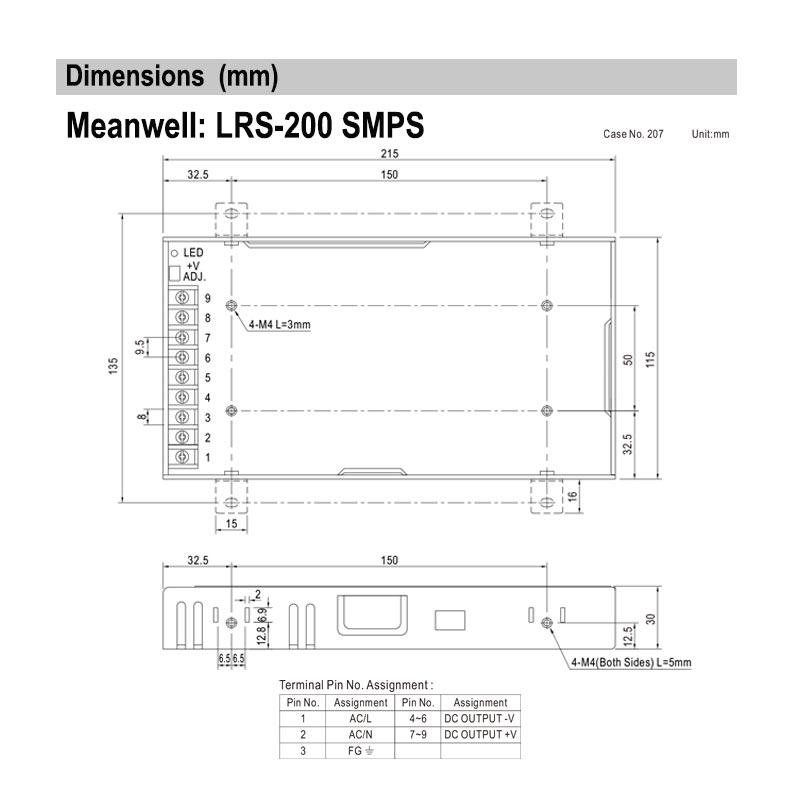

Dimensions WxHxD (mm): 215x115x30mm
Weight/Piece (gms): 660
Warranty: 1-Year
Special Notes

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
Associated Products
RSP-200-48
Part No: RSP-200-48

Meanwell Single Phase Panel Mounting 200 Watts SMPS, Input: 88-264 Vac/124-370 Vdc; Output: 48 Vdc/0 - 4.2 Amps; Tol.: +/-1%; R&N: 240 mV; Effi.: 90.0%; LxWxH: 215x115x30mm

Data Sheet 1
Packaging: 1
Minimum: 2
Multiples of: 1
Quantity:
Price on Request

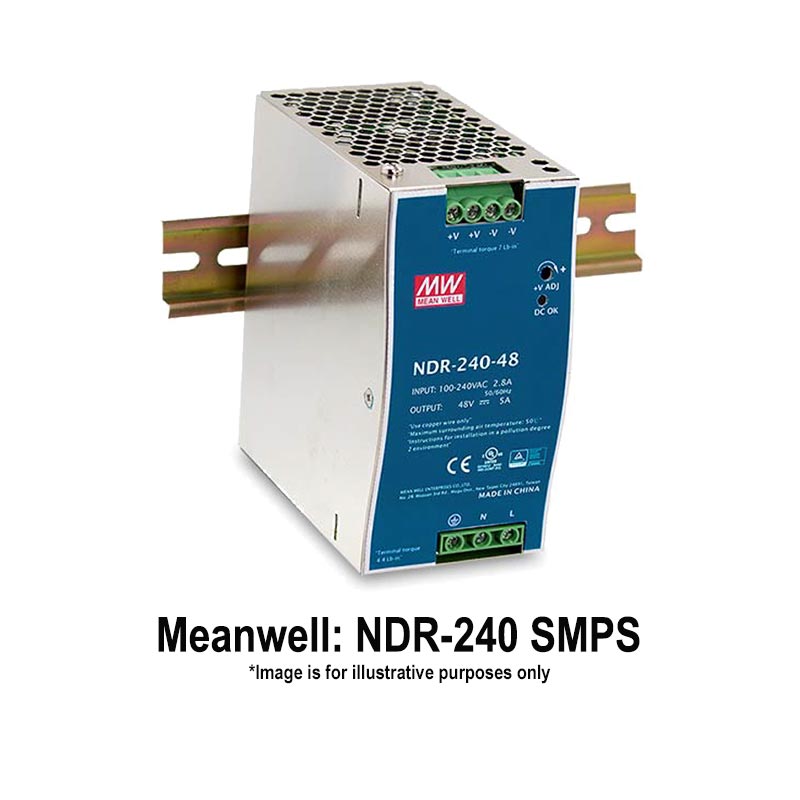

NDR-240-48
Part No: NDR-240-48

Meanwell Single Phase DIN Rail Mounting 240 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 48 Vdc/0 - 5 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 90%; WxHxD: 63x125.2x113.5mm

Data Sheet 1
Packaging: 1
Minimum: 2
Multiples of: 1
Quantity:
Price on Request
