R0144300 M0üf1/100A/1000V/NH0

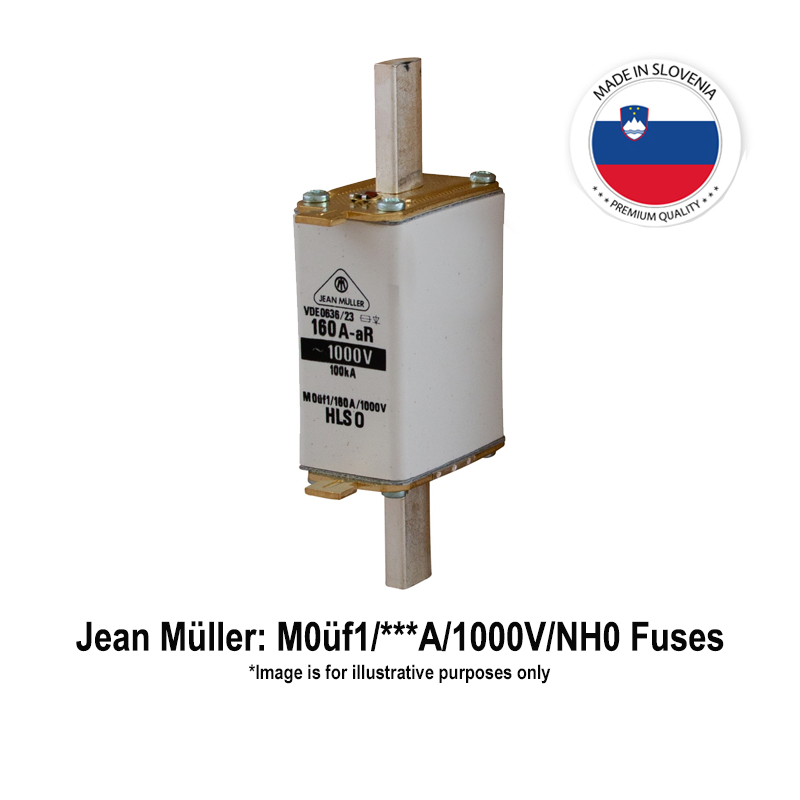

Jean Müller DIN Knife Blade Semiconductor Protection Fuses: 100 Amps, 1000 Vac/100 kA, Operating Class: aR, Size: NH0
R0144300 M0üf1/100A/1000V/NH0
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- Confirming to DIN EN 60269-1, 60269-4, IEC 60269, CE
- All Fuses have top blown fuse indicator
Optional
- Available Rated Current: 32, 40, 50, 63, 80, 100, 125, 160 Amps
- Fuse-Bases available at extra cost
Technical Data
Manufacturer: Jean Müller
Series: R014**** 1000Vac NH0
Fuse Type: aR Knife Blade
Current Rating (A): 100 Amps
Voltage Rating (Vac): 1000 Vac
AC Breaking Capacity (kA): 100 kA
Size: DIN0/NH0
Pre-Arcing I2t Value A2s: 850
Total I2t Value A2s: 8000
Power Loss (W): 31.6 W
Fuse Blown Indicator: Top
Standards: DIN EN 60269-1/60269-4/IEC 60269/CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 250
Special Notes

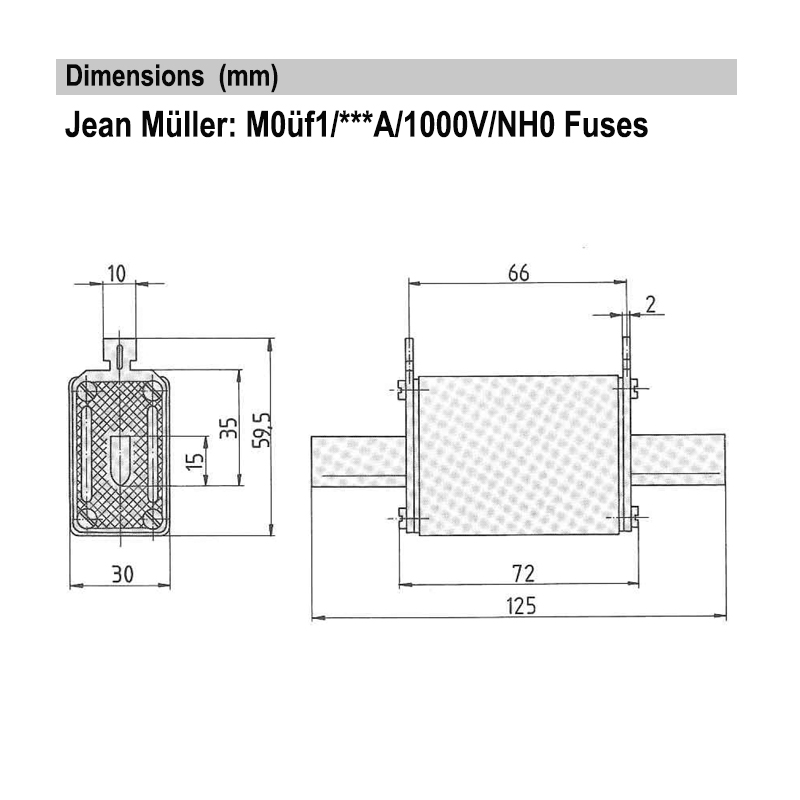

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
