1472050 50A
Italweber Cylindrical Semiconductor Protection Fuses: 50 Amps, 690 Vac/200 kA, Operating Class: aR, Size: 22x58mm, with Striker Pin
1472050 50A
Product Salient Features:
- Class aR Semiconductor Protection Fuses
- Confirming to CEI 32-1/7, IEC EN 60269-1/4, CE
Optional
- Available Rated Current: 20, 25, 32, 40, 50, 63, 80, 100 Amps
- Wide range of Fuse-Holders/Bases and Accessories available at extra cost
Technical Data
Manufacturer: Italweber
Series: 1472***
Fuse Type: Cylindrical aR
Current Rating (A): 50 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 200 kA
Size: 22x58mm
Pre-Arcing I2t Value A2s: 162
Total I2t Value A2s: 1800
Power Loss (W): 10.8 W
Fuse Blown Indicator: With Striker Pin
Standards: CEI 32-1/7, IEC EN 60269-1/4, CE
Packaging Quantity (Pcs.): 10
Special Notes

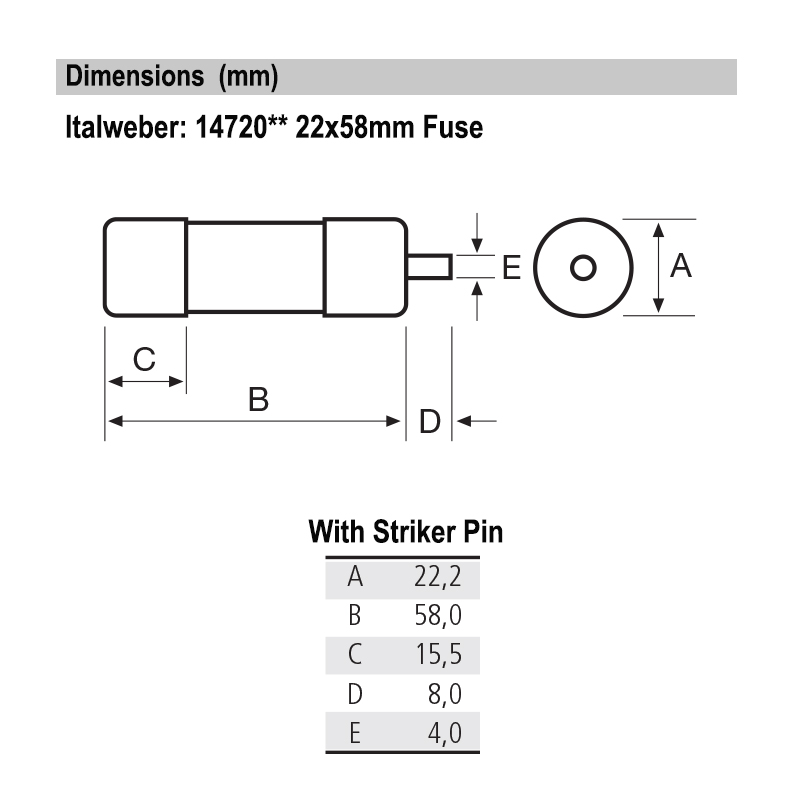

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
