004371123 400A

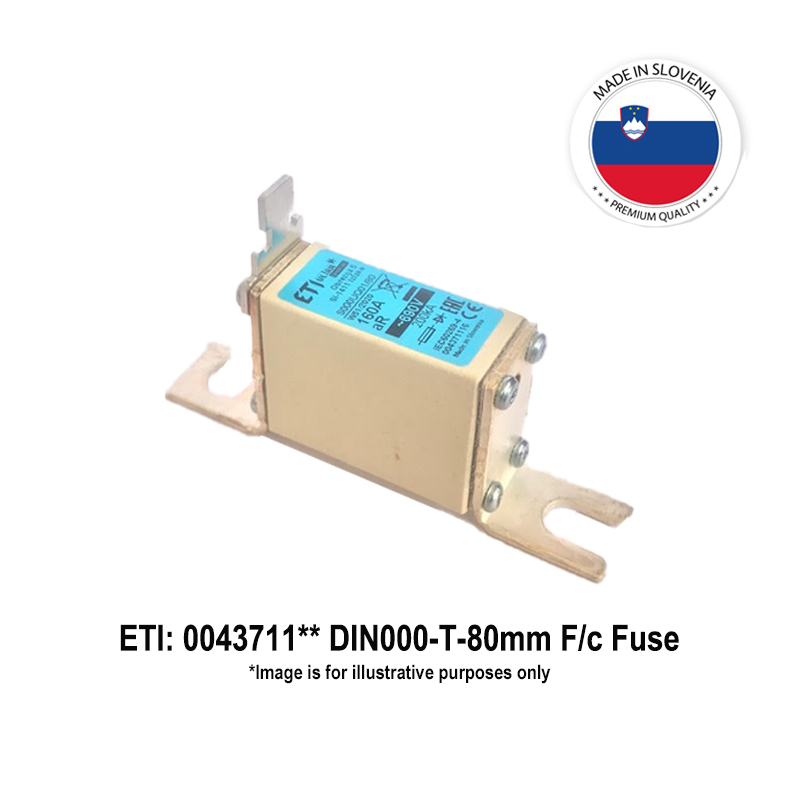

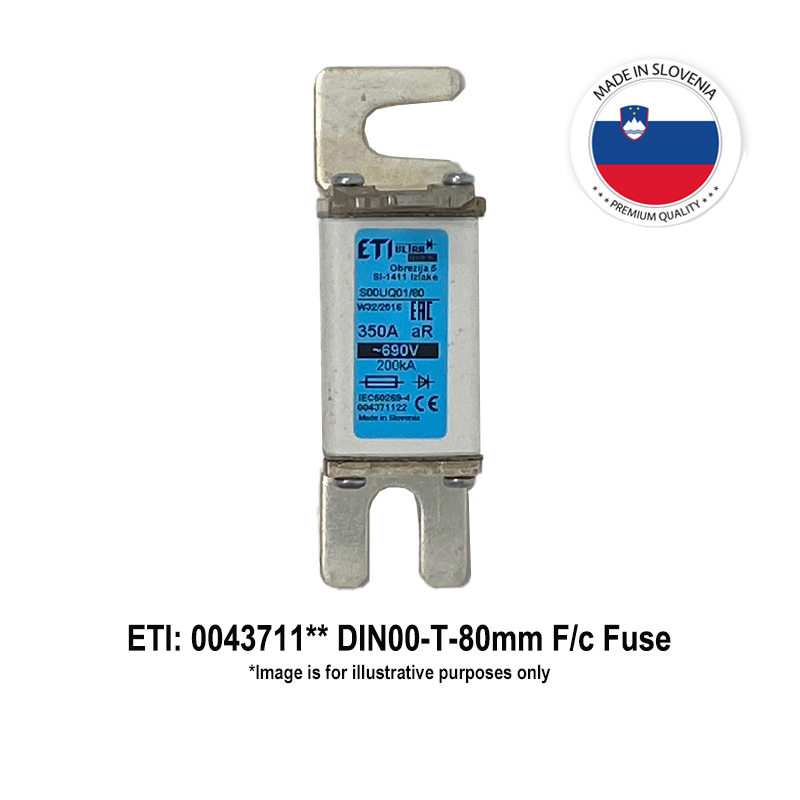

ETI DIN 80mm Bolted Contact Ultra Quick Semiconductor Protection Fuses: 400 Amps, 690 Vac/200 kA, Operating Class: aR, Size: NH00-T/80mm
004371123 400A
Product Salient Features:
- Class aR Ultra Quick Semiconductor Protection Fuses
- Confirming to DIN 43653, IEC 60269-4-1, CE
- All Fuses have blown fuse indicator
Optional
- Available Rated Current: 160, 200, 250, 315, 350, 400 Amps
- Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: ETI
Series: 0043711**
Fuse Type: Ultra Quick 80mm Bolted Contact
Current Rating (A): 400 Amps
Voltage Rating (Vac): 690 Vac
AC Breaking Capacity (kA): 200 kA
Size: NH00-T-80mm
Pre-Arcing I2t Value A2s: 20000
Total I2t Value A2s: 120000
Power Loss (W): 70.0 W
Fuse Blown Indicator: Visual Indicator
Standards: CE/IEC60269-4/DIN43653
Packaging Quantity (Pcs.): 3
Weight (Grams): 150
Special Notes

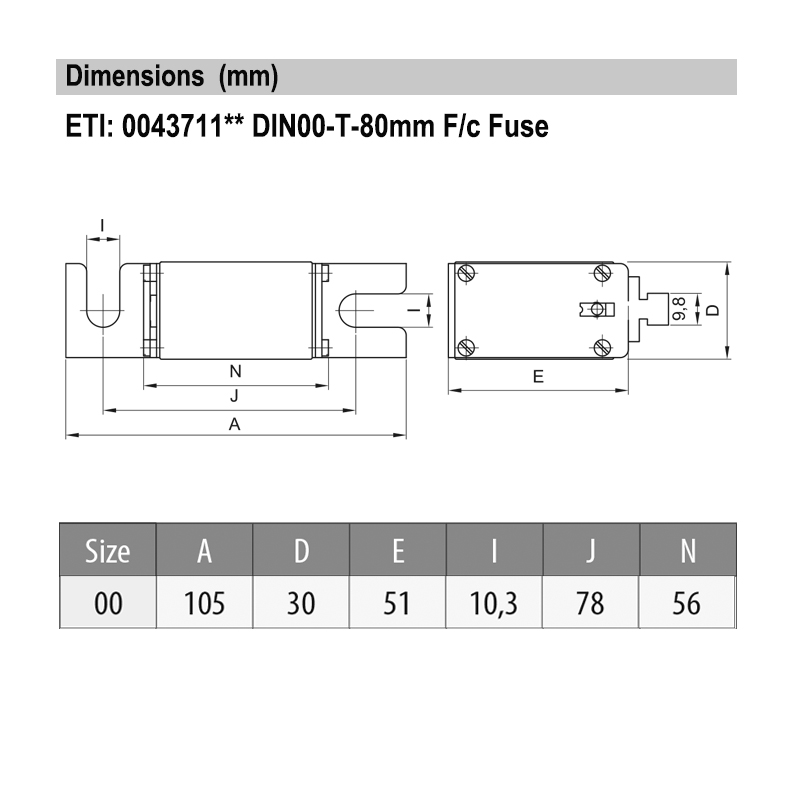

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
