004325003 DVUQ200A
ETI Ultra Quick D/Bottle Type Semiconductor Protection Fuses: 200 Amps, 500 Vac/50 kA, 315 Vdc/8 kA, Operating Class: gR, Type: D V, Size: R2"
004325003 DVUQ200A
Product Salient Features:
- Class gR Semiconductor Protection Fuses
- Confirming to DIN 49515, IEC 60269-4-1
- All Fuses have blown fuse indicator
- Fuse Bases/Holders and Accessories are available on request at extra cost
Optional
- Available Rated Current: 125, 160, 200 Amps
- Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: D - 004325***
Fuse Type: Ultra Quick D/Bottle
Current Rating (A): 200 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 315 Vdc
DC Breaking Capacity (kA): 8 kA
Size: R2" / D V
Pre-Arcing I2t Value A2s: 17000
Total I2t Value A2s: 40000
Power Loss (W): 90.0 W
Fuse Blown Indicator: Yes
Standards: DIN49515 IEC60269-4-1
Packaging Quantity (Pcs.): 10
Weight (Grams): 215
Special Notes

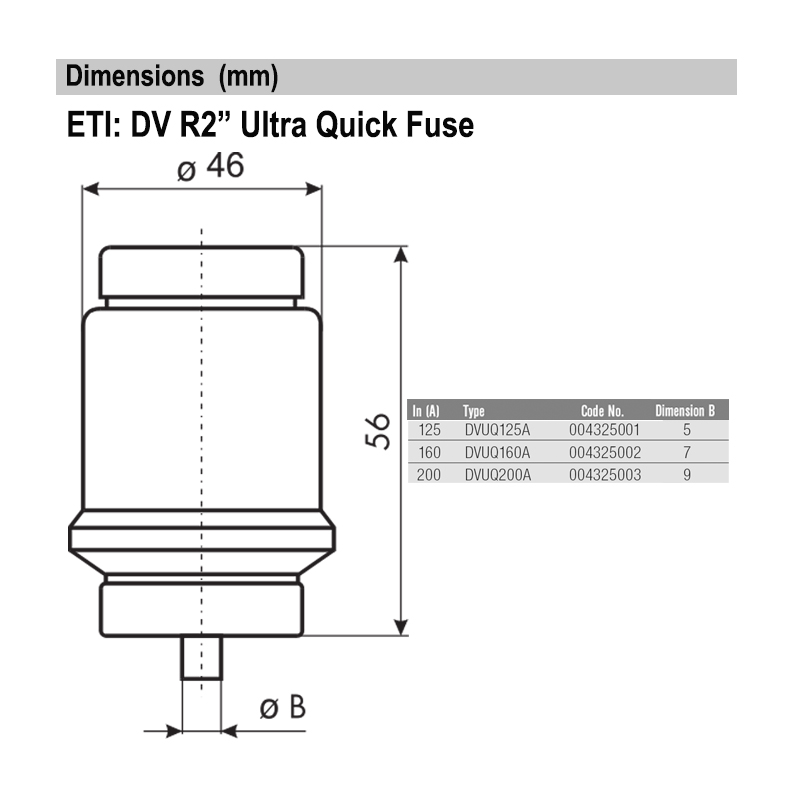

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
