004324001 DIVUQ80A

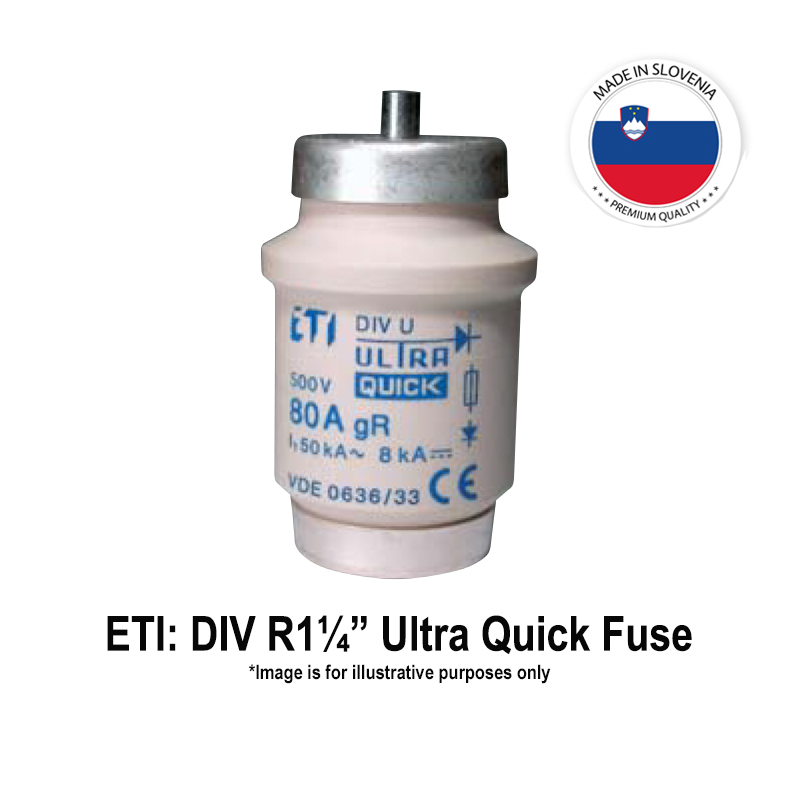

ETI Ultra Quick D/Bottle Type Semiconductor Protection Fuses: 80 Amps, 500 Vac/50 kA, 315 Vdc/8 kA, Operating Class: gR, Type: D IV, Size: R1-1/4"
004324001 DIVUQ80A
Product Salient Features:
- Class gR Semiconductor Protection Fuses
- Confirming to DIN 49515, IEC 60269-4-1
- All Fuses have blown fuse indicator
- Fuse Bases/Holders and Accessories are available on request at extra cost
Optional
- Available Rated Current: 80, 100 Amps
- Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: D - 004324***
Fuse Type: Ultra Quick D/Bottle
Current Rating (A): 80 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 315 Vdc
DC Breaking Capacity (kA): 8 kA
Size: R1-1/4" / D IV
Pre-Arcing I2t Value A2s: 980
Total I2t Value A2s: 4200
Power Loss (W): 33.0 W
Fuse Blown Indicator: Yes
Standards: DIN49515 IEC60269-4-1
Packaging Quantity (Pcs.): 3
Weight (Grams): 105
Special Notes

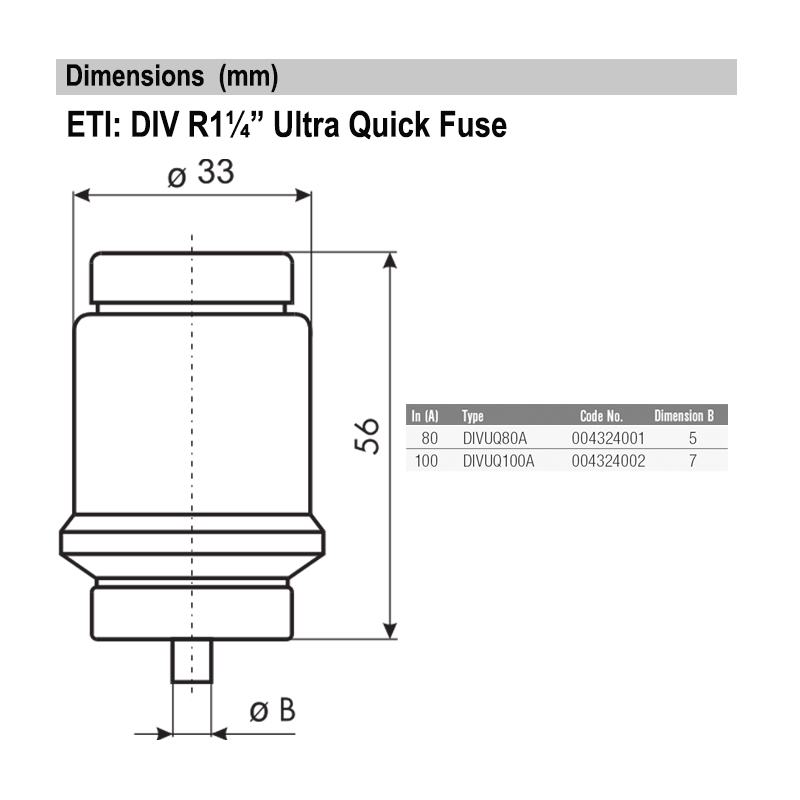

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.
The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.
All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
