004311003 D01UQ6A

ETI Ultra Quick D/Bottle Type Semiconductor Protection Fuses: 6 Amps, 400 Vac/50 kA, 250 Vdc/8 kA, Operating Class: gR, Type: D01, Size: E14

Manufacturer: ETI
Country of Origin : Slovenia EU
Technical Datasheet:
PDF-Icon 004311003 D01UQ6A
Packaging Quantity: 10
Minimum Order Quantity: 5
Order in Multiples of Quantity: 5
Required Quantity:
Price on Request

Product Salient Features:

  • Class gR Semiconductor Protection Fuses
  • Confirming to IEC 60269-4-1, VDE 0636
  • All Fuses have blown fuse indicator
  • Fuse Bases/Holders and Accessories are available on request at extra cost

Optional

  • Available Rated Current: 2, 4, 6, 10, 16 Amps
  • Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: D - 004311***
Fuse Type: Ultra Quick D0/Bottle
Operating Class: gR
Current Rating (A): 6 Amps
Voltage Rating (Vac): 400 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 250 Vdc
DC Breaking Capacity (kA): 8 kA
Size: E14 / D I
Pre-Arcing I2t Value A2s: 5
Total I2t Value A2s: 20
Power Loss (W): 4.0 W
Fuse Blown Indicator: Yes
Standards: IEC60269-4-1 VDE0636
Packaging Quantity (Pcs.): 10
Weight (Grams): 6
Special Notes

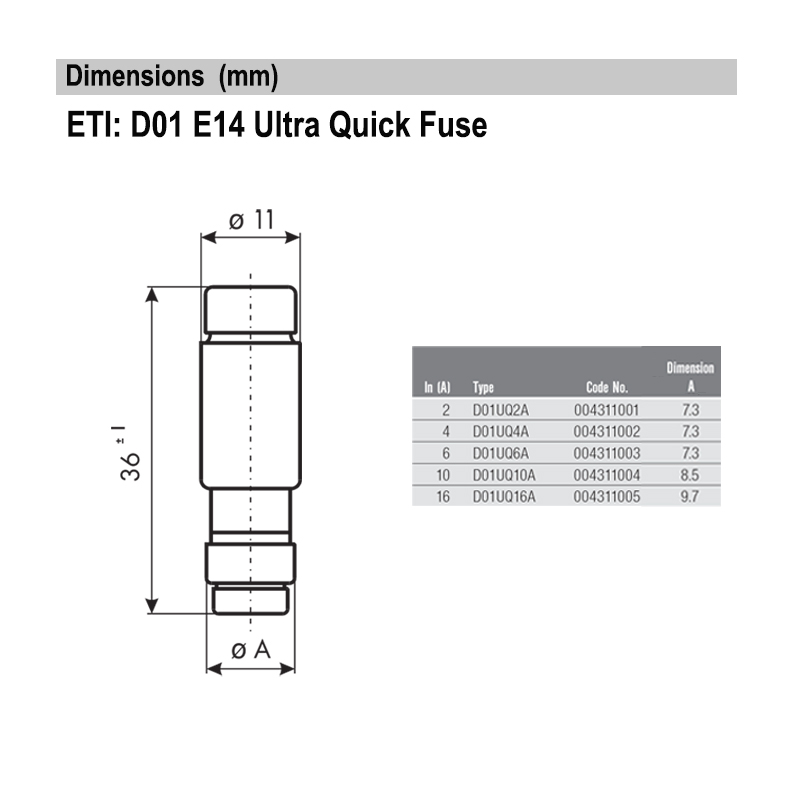

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
