004182216 160A

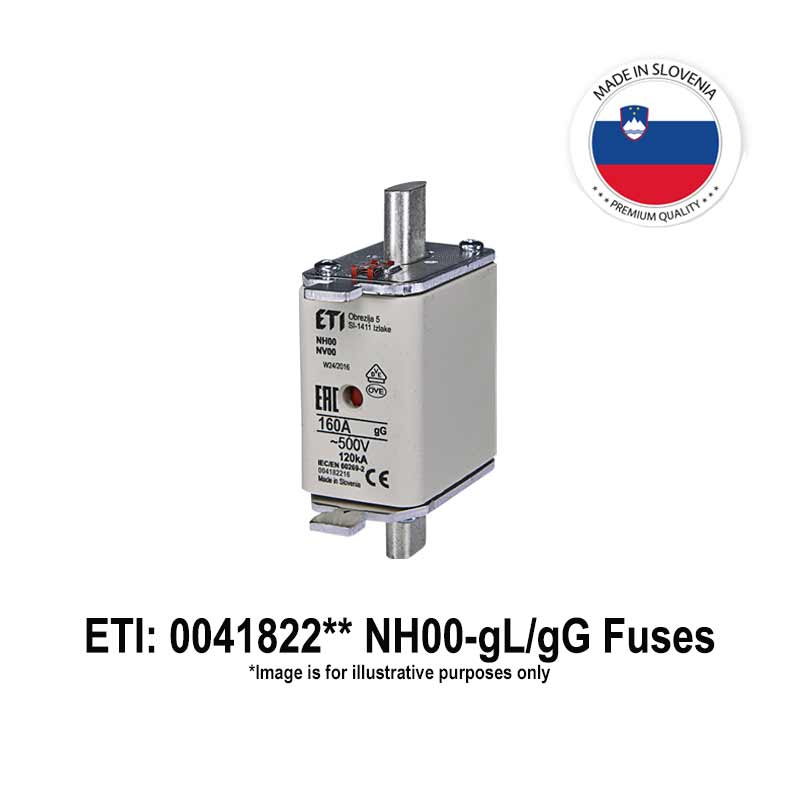

ETI DIN NH gL-gG HRC Fuses with Dual Indicator: 160 Amps, 500 Vac/120 kA, Operating Class: gL/Gg, Size: DIN00/NH00

Manufacturer: ETI
Country of Origin : Slovenia
Technical Datasheet:
Packaging Quantity: 3
Minimum Order Quantity: 3
Order in Multiples of Quantity: 3
Required Quantity:
Price on Request

Product Salient Features:

  • Class gL-gG DIN NH HRC Fuses
  • Confirming to EN/IEC60269-2-1, DIN 43620-1-4, CE
  • All Fuses have Dual blown fuse indicator

Optional

  • Available Rated Current: 125, 160 Amps
  • Wide range of Fuse-Bases and Accessories available at extra cost
Technical Data
Manufacturer: ETI
Series: 0041822**
Fuse Type: NH gL/gG HRC Fuses
Operating Class: gL/gG
Current Rating (A): 160 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 120 kA
Voltage Rating (Vdc): 440 Vdc
Size: DIN00/NH00
Fuse Blown Indicator: Dual
Standards: EN/IEC60269-2-1, DIN 43620-1-4, CE
Packaging Quantity (Pcs.): 3
Weight (Grams): 173
Special Notes

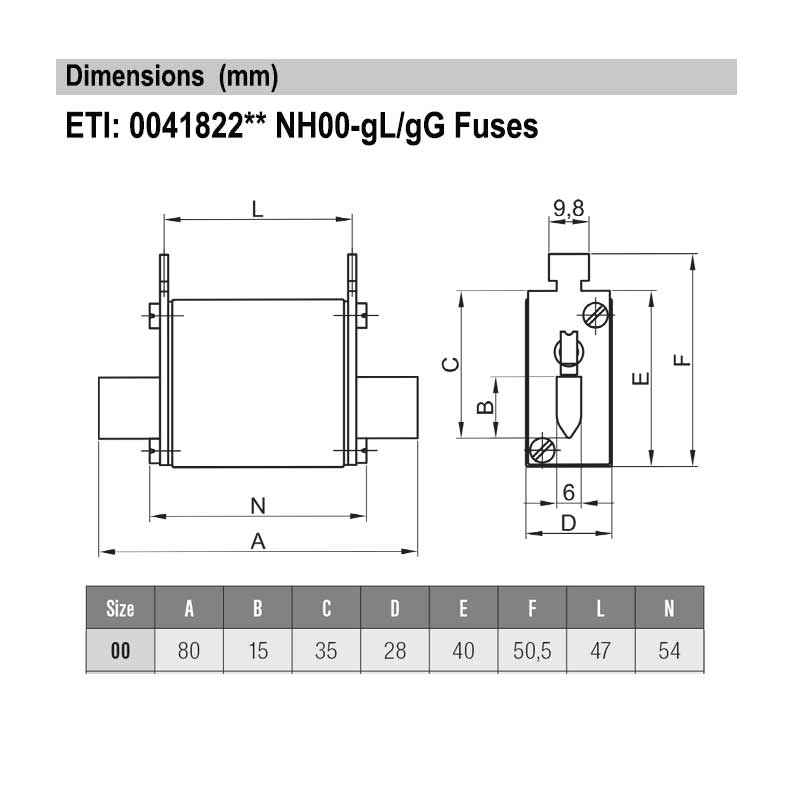

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.
