002314102 DIV 100A

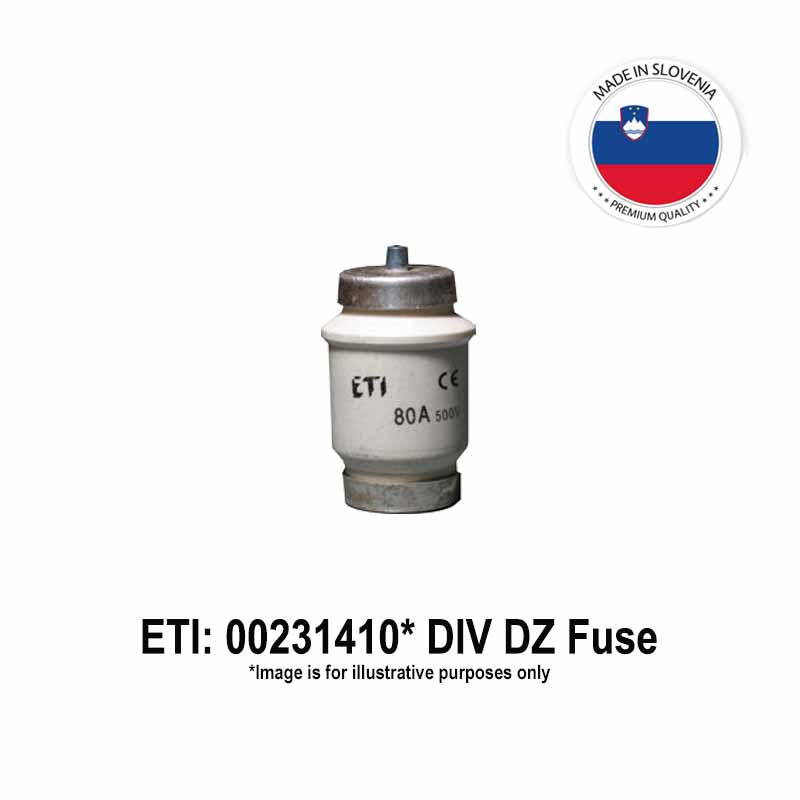

ETI DIV Time Delay-Fuse: 100 Amps, 500 Vac/50 kA, 600 Vdc/8 kA, Operating Class: DZ, Type: DIV, for Fuse Base Size: R1-1/4"

Manufacturer: ETI
Country of Origin : Slovenia EU
Technical Datasheet:
Packaging Quantity: 3
Minimum Order Quantity: 3
Order in Multiples of Quantity: 3
Required Quantity:
Price on Request

Product Salient Features:

  • Class DZ D/Bottle-Fuses
  • Suitable for protection of Electrical Installations, Control and Signal Circuits against Over-Load and Short-Circuit currents
  • Confirming to IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1
  • All Fuses have blown fuse indicator
  • Fuse Bases/Holders and Accessories are available on request at extra cost

Optional

  • Available Rated Current: 80, 100 Amps
  • Wide range of Fuse-Bases / Holders and Accessories available
Technical Data
Manufacturer: ETI
Series: 00231410*
Fuse Type: DIV Time Delay
Operating Class: DZ Time Delay
Current Rating (A): 100 Amps
Voltage Rating (Vac): 500 Vac
AC Breaking Capacity (kA): 50 kA
Voltage Rating (Vdc): 600 Vdc
DC Breaking Capacity (kA): 8 kA
Size: DIV / R1-1/4"
Fuse Blown Indicator: Yes
Standards: IEC 60269-3-1, DIN EN 60269-3, DIN VDE 0636-301, HD 630.3.1, DIN EN 60269-1
Packaging Quantity (Pcs.): 3
Weight (Grams): 110
Special Notes

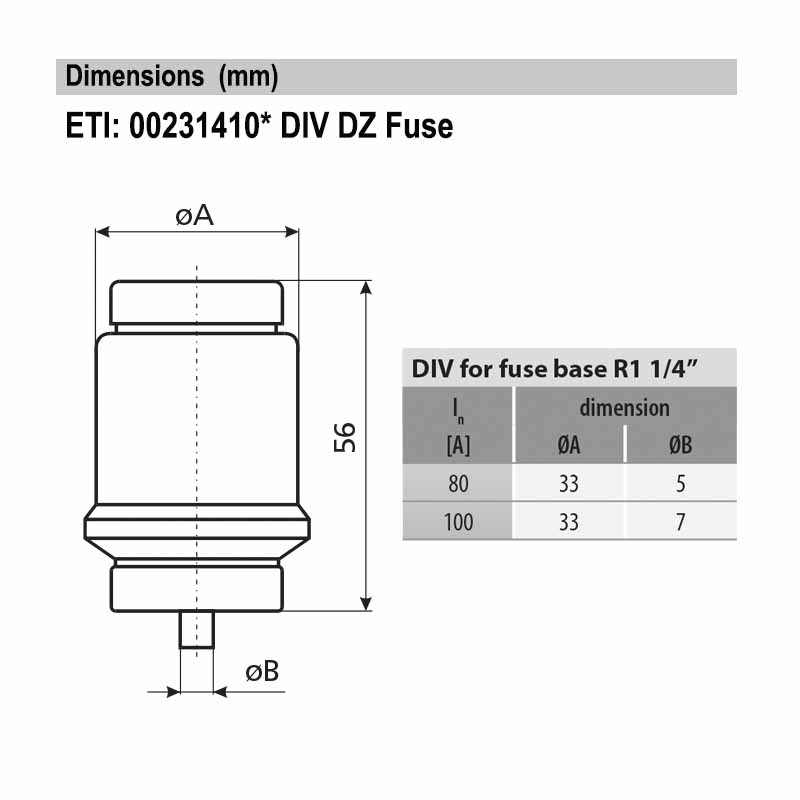

"Please refer above given PDF Data File/s for additional Product Technical & Dimensional information.

We shall not be liable for any technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance or use of this material.

The Manufacturer reserves the right to modify technical or dimensional features in the interest of technological advances.

All Trademarks; Logos; Photographs and Product Information are the properties of their respective Owners”.
